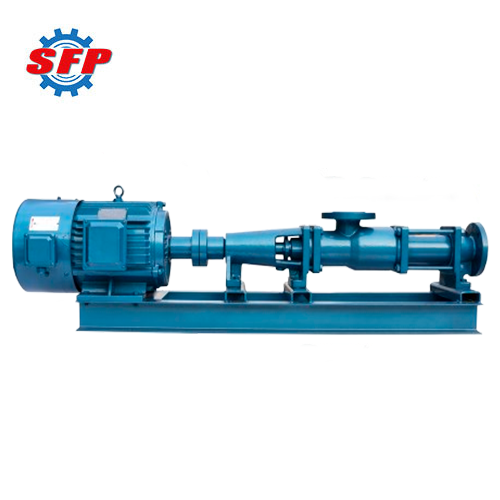

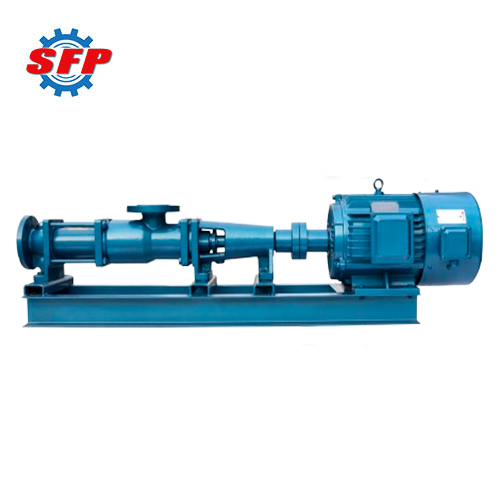

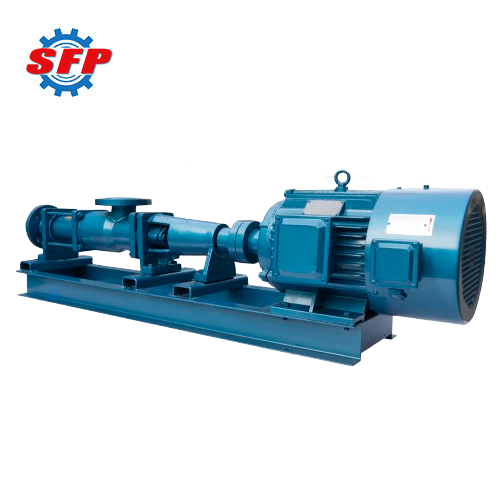

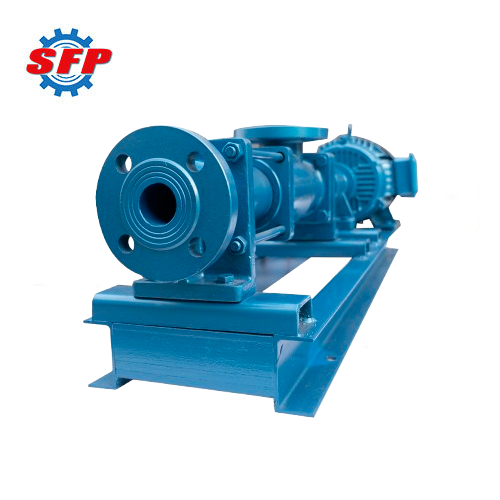

G series mono screw pump is capable of handling high-viscosity fluids, media containing hard suspended particles, or fibers across various industries such as brewing, construction, mining, chemicals, petroleum, food, pharmaceuticals, and printing. This pump operates at an output pressure of 0.6–1.2 MPa and can achieve a head of up to 60 meters, making it suitable for conveying media at temperatures below 80°C. It features stable flow, minimal pressure pulsation, and simple maintenance, making it suitable for conveying sensitive liquid media without causing changes in their composition.
(4).png)
| Model | Flow (m³/h) | Pressure (MPa) |
Speed (r/min) | Motor Power (kw) |
Inlet Size (mm) |
Outlet Size (mm) |
Max Solid Size (mm) |
Max Fiber Length (mm) |
| G10-1 | 0.1 | 0.6 | 960 | 0.55 | 25 | 25 | 0.8 | 15 |
| G10-2 | 1.2 | 0.55 | 25 | 25 | ||||
| G13-1 | 0.4 | 0.6 | 960 | 0.55 | 25 | 25 | 0.8 | 15 |
| G13-2 | 1.2 | 0.55 | 25 | 25 | ||||
| G15-1 | 0.6 | 0.6 | 960 | 0.55 | 25 | 25 | 1 | 20 |
| G15-2 | 1.2 | 0.75 | 25 | 25 | ||||
| G20-1 | 0.8 | 0.6 | 960 | 0.75 | 25 | 25 | 1.5 | 25 |
| G20-2 | 0.6 | 1.1 | 25 | 25 | ||||
| G25-1 | 2 | 0.6 | 960 | 1.5 | 32 | 25 | 2 | 30 |
| G25-2 | 1.2 | 2.2 | 32 | 25 | ||||
| G30-1 | 5 | 0.6 | 960 | 2.2 | 50 | 40 | 2.5 | 30 |
| G30-2 | 1.2 | 3 | 50 | 40 | ||||
| G35-1 | 8 | 0.6 | 960 | 3 | 65 | 50 | 3 | 40 |
| G35-2 | 1.2 | 4 | 65 | 50 | ||||
| G40-1 | 12 | 0.6 | 960 | 4 | 80 | 65 | 3.8 | 45 |
| G40-2 | 1.2 | 5.5 | 80 | 65 | ||||
| G50-1 | 20 | 0.6 | 960 | 5.5 | 100 | 80 | 5 | 50 |
| G50-2 | 1.2 | 7.5 | 100 | 80 | ||||
| G60-1 | 30 | 0.6 | 960 | 11 | 125 | 100 | 6 | 60 |
| G60-2 | 1.2 | 15 | 125 | 100 | ||||
| G70-1 | 45 | 0.6 | 720 | 11 | 150 | 125 | 8 | 70 |
| G70-2 | 1.2 | 18.5 | ||||||
| G85-1 | 65 | 0.6 | 720 | 15 | 150 | 150 | 10 | 80 |
| G85-2 | 0.6 | 30 | ||||||
| G105-1 | 80 | 0.6 | 720 | 22 | 200 | 150 | 10 | 80 |
| G135-1 | 100 | 0.6 | 720 | 30 | 200 | 150 | 10 | 80 |
