Product Description

Product Description:

ZX series self-priming centrifugal pumps can be used to convey clear water, sewage, seawater, light oil, acid and alkali and chemical liquids in chemical, petroleum, metallurgy, construction, printing and dyeing, pharmacy, electric power, papermaking, mining and other industries. This machine belongs to single-stage single-suction self-priming centrifugal pump, which has the advantages of long service life, strong self-priming ability, convenient operation and stable operation. Moreover, it pump can be quickly self-primed and put into operation without installing a bottom valve, which simplifies the piping system and improves the working efficiency.

Take 50ZX12.5-50 as an example：
50 --- Suction Inlet diameter(m)
ZX --- Self-priming pump
12.5 --- Flow(m3/h)
50 --- Head(m)

Product Details:

ZX series centrifugal pump is a new type of high-efficiency and energy-saving centrifugal pump developed by adopting international advanced design software. It adopts single-stage single-suction cantilevered structure and is mainly composed of pump body, impeller, seal, bearing and coupling. The pump throws the liquid to the outer edge of the vortex chamber by centrifugal force and then discharges it through the outlet of the pump body. The rotation of the impeller converts the mechanical energy of the motor into the kinetic energy and pressure energy of the liquid, thus realizing the transportation of the liquid.

Application:

1. Applicable to urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electricity, electroplating, paper, petroleum, mining, equipment, cooling, oil tanker drainage.
2. It is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity ≤100 PCT, solid content up to 30%).
3. Install the rocker-type nozzle, and then spray the water into the air, and then spray it into small raindrops. It is a good tool for farms, nurseries, orchards and tea gardens.
4. It can be used with any type and specification of filter press, and it is the most ideal pump type for the filter to be sent to the filter for pressure filtration.

Feature:

1. This pump is not designed with a check valve, so it has a simple structure, reliable operation, long trouble-free working time, and is easy to maintain and use.
2. ZX series centrifugal pumps have good self-priming ability and can be quickly self-primed and put into operation without installing a bottom valve.

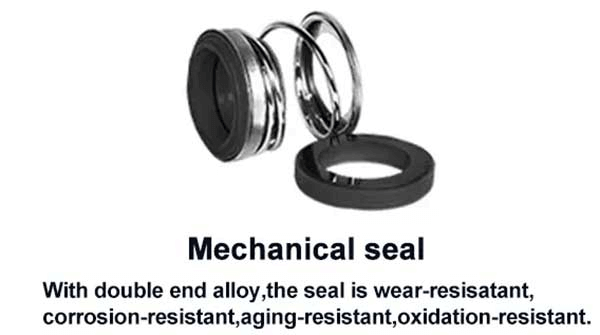

3. The use of corrosion-resistant mechanical seal can effectively prevent the leakage of the medium to ensure the safe and stable operation of the pump.
4. Adopting advanced hydraulic model, high efficiency and remarkable energy-saving effect.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	M3/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
