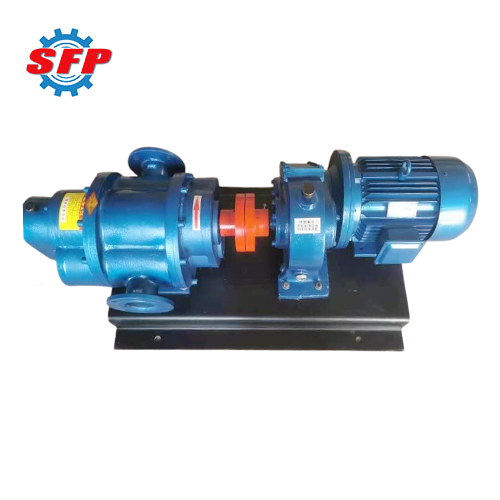

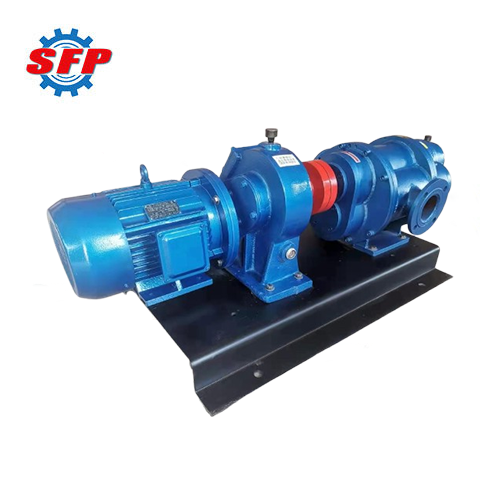

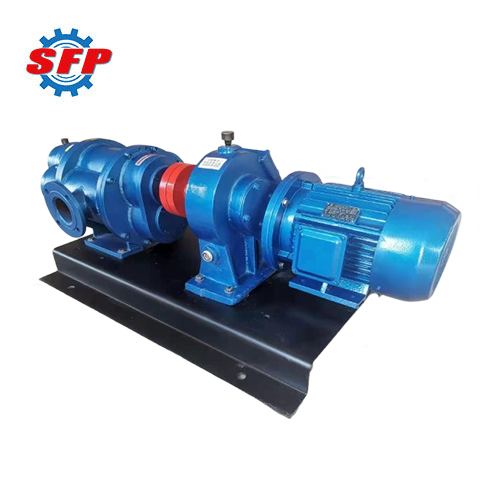

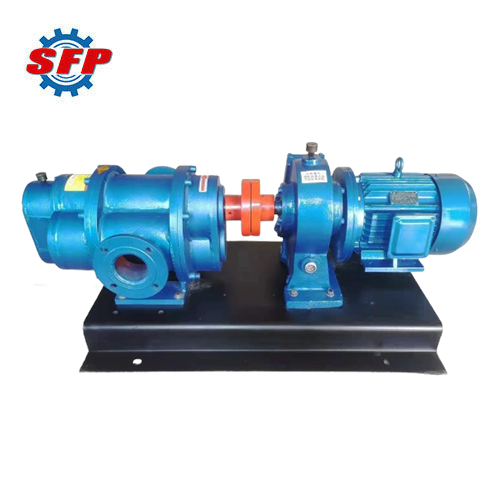

Good Selling 3GB Series High Viscosity Triple Screw Oil Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

ISW Series Horizontal Magnetic Pump Wholesale

ISW Series Inline Centrifugal Pump

LPG Gas Transfer Pump for Sale

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

3GB series screw oil pump is used to handle various non-corrosive oils and oil-like liquid media with viscosities typically ranging from 3 to 760 mm²/s. It finds application in industries such as chemical processing, petroleum, construction, power generation, machinery, metallurgy, and shipping. This pump incorporates a heat-insulated design to achieve efficient and smooth conveying of high-viscosity media by reducing viscosity through heating, and it also utilizes high-strength, wear-resistant hard alloy materials to ensure seal performance under elevated temperatures.

Product Details:

3GB series screw pump utilizes the principle of screw meshing, relying on rotating screws that push fluid within the pump housing toward the discharge port to provide stable system pressure. As the main screw rotates, it drives the driven screw to rotate synchronously, forming continuous sealed chambers. These chambers advance forward with the screw rotation, propelling liquid from the inlet to the outlet, thereby achieving pressurization and delivery of the fluid.

Application:

3GB series screw pump is particularly intended for conveying various non-corrosive oils and similar fluids, including fuel oil, heavy oil, lubricating oil, hydraulic oil, asphalt, and other analogous liquid media. It can be widely applied in industries such as petroleum, chemical fiber, metallurgy, machinery, power generation, machine tools, shipbuilding, glass manufacturing, and highway construction.

Feature:

1. The continuous rotation of the screw pump enables smooth liquid delivery to the outlet, providing a stable flow rate over extended periods.
2. Through the meshing action of the screws, pressure pulsations within the pump housing are minimized, ensuring stable and efficient fluid transfer.
3. With low inertia in its rotating components, the pump exhibits minimal starting torque and vibration, resulting in exceptionally low noise during operation.

Performance Data:

Model	Flow		Pressure Mpa	Speed r/min	Power KW		NPSHr (m)
Model	m³/h	L/min	Pressure Mpa	Speed r/min	Shaft	Motor	NPSHr (m)
90*2-42	28.2	470.9	0.6	950	6.6	11	5.5
	27.5	457.6	1.0	950	10.2	15
	43.1	718.8	0.6	1450	10	15
	41.9	698.5	1.0	1450	15.5	18.5
90*2-46	34.0	566.7	0.8	950	9.7	11	5.5
	52.6	875.4	0.6	1450	12	15
	520	866	0.8		14.9	18.5
	51.4	8561	1.0		18.6	22
100*2-46	48.0	800	0.8	950	13.3	15	5.5
	72.7	1212	0.6	1450	165	18.5
	72.0	1200	0.8		20.4	22
	71.2	1187	1.0		25.5	30
100*2-51	56.9	948.9	0.6	950	12.5	15	5.5
	55.7	928.6	1.0	950	20.8	30
	86.9	1448.3	0.6	1450	19.1	22
	850	1417.2	1.0	1450	31.8	37
110*2-46	60.9	1015	0.6	950	13.7	18.5	5.5
	58.9	951.7	1.0	950	21.8	30
	96.7	1611	0.6	1450	21.9	30
	94.6	1577	1.0	1450	33.9	45
120*2-42	67.9	1131	0.6	950	15.5	18.5	5.5
	65.4	1090	1.0	950	24.5	30
	108	1802	0.6	1450	24.7	30
	105	1760	1.0	1450	38.2	45
120*2-46	79.6	1327	0.6	950	17.8	22	5.5
	77.2	1285	1.0	950	28.2	37
	126	2101	0.6	1450	28.5	37
	123	2059	1.0	1450	44.1	55
150*2-46	158	2640	0.6	950	34.6	45	5.5
	154	2582	1.0	950	54.5	75
	241.7	4029.7	0.6	1450	53.8	7590
	236.5	3942.2	1.0	1450	82.2
