Product Description

Summarize:

3RP rotary sanitary rotor pump is a volumetric pump that is an excellent choice for media that need to handle high viscosities of 30-10⁵ cSt and suspensions containing solid particles. As a result, it is widely used in food and beverage, pharmaceutical, chemical processing, and other industries that require gentle handling of sensitive materials. The equipment is also characterized by strong self-priming capability, high efficiency, stable and smooth operation, and long service life.

Product Details:

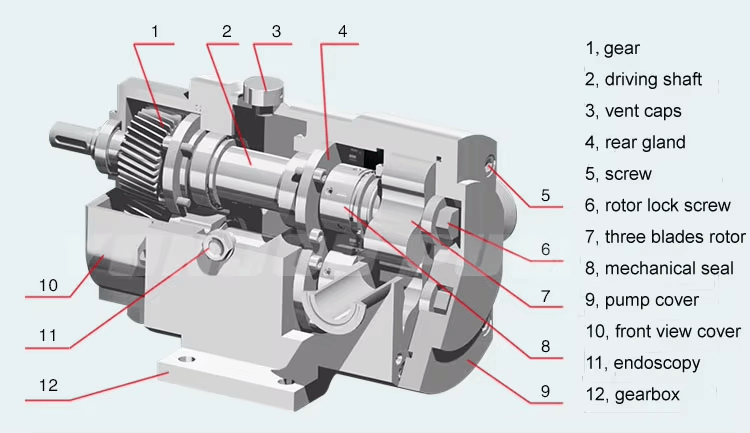

3RP series rotary lobe pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, driving the rotor to transport media. It adopts the gear transmission method, the main shaft and auxiliary shaft drive the rotor to rotate in reverse synchronously, so that the volume of the pump changes, thus forming a higher vacuum and discharge pressure, so it is especially suitable for sanitary media and strong corrosive and high viscosity media. In addition, the pump utilizes a high-strength cast iron gearbox, helical gears and heavy-duty bearings to ensure long-term pump operation.

Application:

1. Chemicals: Fats, solvents, resins and polymers, dyes.
2. Dairy products: Yoghurt, cream, ice cream, cheese and whey.
3. Cosmetics: Creams and lotions, hairsprays, hair dyes, essential oils.
4. Beverages: Beer, wort, yeast, soft drinks, fruit juice concentrates, fruit drinks.
5. Confectionery: Syrups, cream fillings, purees, fruit fillings, puddings, jams, jellies, chocolates.
6. Foodstuffs: Ketchup, vegetable pastes, sauces, sweeteners, yeast pastes, salads, meat emulsions, cooking oils.

Feature:

1. Equipped with variable frequency drive, the flow rate can be adjusted arbitrarily, can be used as an ordinary metering pump.
2. There is a certain clearance between the rotor and the rotor, no friction coefficient, so the pump has a long service life.
3. With high efficiency and energy saving, smooth conveying, low failure rate, no leakage sealing, low noise.
4. Inlet/outlet connection type: flange connection, threaded connection, quick connection.
5. Conveying medium viscosity ≤ 2,000,000cp, can convey slurry with 70% solid content.
6. It can convey gas, liquid, solid three-phase mixture of materials.

Performance Data:

Model	Flow		Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
Model	L/100r	m3/h	Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
3RP-25	6	≤1.8	0-1.0	10-400	0.75	25
3RP-32	9	≤2.7			1.1	32
3RP-40	18	≤4.3			1.5	40
3RP-50	36	≤8.6			2.2	50
3RP-65	60	≤14.4			4	65
3RP-80	105	≤25.2			11	80
3RP-100A	125	≤30			15	100
3RP-100	150	≤36			18.5	100
3RP-125	250	≤60			22	125
