3RP Lobe Pump With Variable Frequency Motor is a multi-purpose two-way positive displacement pump manufactured by our company with advanced technology from Germany. The professional manufacturing technology and manufacturing precision of the products are close to similar products in Germany.
The pump is made of two synchronous rotors/lobes. Rotors are driven by a pair of synchronous gears in the gearbox. Two rotors are rotated in the opposite direction driven by the main and auxiliary shafts, which causes the volume of the pump to change, thus forming a higher vacuum and discharge pressure . This kind of pump is especially suitable for delivering hygienic fluid and corrosive high viscosity fluid.
Character:
1.There Is A Certain Gap Between Rotor And Rotor, No Friction Coefficient,So Pump Have A Long Service Life Time.
2.It Is Easy To Install And Disassemble,And It Is Convenient To Maintain, Clean.There Is Less Wearing Parts.
3.High Efficiency And Energy Saving, Stable Transportation, Low Failure Rate, No Leak Sealing And Low Noise.
4.The Viscosity Of The Transportable Medium Is ≤2000000 Cp, And The Pump Can Transfer Slurry Containing 70% Solids.
5.It Can Transport Gas, Liquid And Solid Three-Phase Mixture Materials.
6.With Vfd, The Flow Can Be Adjusted At Will, And The Pump Can Be Used As A General Metering Pump.
7.If Need,We Can Do The Pump With Heating Jacket.
8.Applicable Temperature: -50 °C -250 °C.
9.Types Of Inlet/Outlet Connection: Flange Joint,Threaded Connection; Quick Connection.
10.Seal Type: Mechanical Seal And Packing Seal.
Lobe Pump Scope Of Application:
1.Dairy Products: Yogurt, Cream, Ice Cream, Cheese And Whey.
2.Beverages: Beer, Wort, Yeast, Soft Drinks, Fruit Concentrates, Fruit Drinks.
3.Food: Tomato Sauce, Vegetable Paste, Seasoning, Sweeteners, Yeast Paste, Salad, Meat Emulsion, Edible Oil.
4.Candy: Syrup, Cream Stuffing, Fruit Puree, Fruit Filling, Pudding, Jam, Jelly, Chocolate.
5.Cosmetics: Creams And Lotions, Hair Gels, Hair Dyes, Essential Oils.
6.Drugs: Pill, Extract, Emulsion, Paste.
7.Chemicals: Fats, Solvents, Resins And Polymers, Dyes.

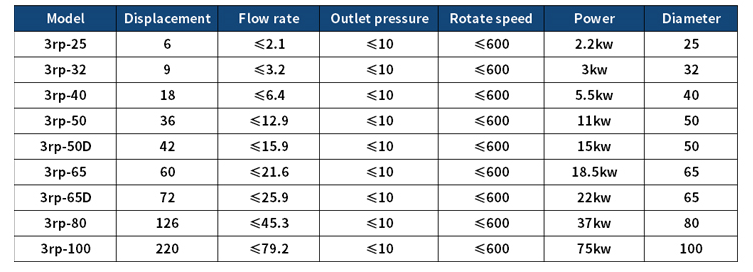

| Model | Flow | Discharge Pressure (Mpa) |
Rev (rpm) |
Motor Power (kw) |
Inlet/outlet (mm) |
|
| L/100r | m3/h | |||||
| 3RP-25 | 6 | ≤1.8 | 0-1.0 | 10-400 | 0.75 | 25 |
| 3RP-32 | 9 | ≤2.7 | 1.1 | 32 | ||
| 3RP-40 | 18 | ≤4.3 | 1.5 | 40 | ||
| 3RP-50 | 36 | ≤8.6 | 2.2 | 50 | ||
| 3RP-65 | 60 | ≤14.4 | 4 | 65 | ||
| 3RP-80 | 105 | ≤25.2 | 11 | 80 | ||
| 3RP-100A | 125 | ≤30 | 15 | 100 | ||
| 3RP-100 | 150 | ≤36 | 18.5 | 100 | ||
| 3RP-125 | 250 | ≤60 | 22 | 125 | ||
