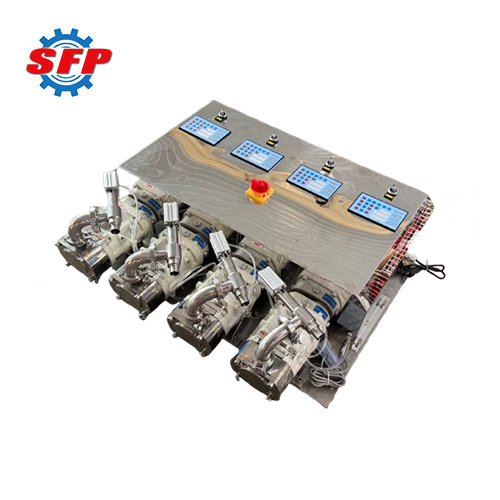

OEM & ODM 3RP Series Stainless Steel Manual Lobe Filling Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

3RP series high-viscosity rotary lobe pump is designed for multi-head transfer of corrosive media and suspension liquids containing solid particles at temperatures ranging from -30°C to 200°C. It meets diverse production line supply requirements to enhance operational efficiency. This pump features shear-resistant and pulsation-free characteristics, ensuring stable properties and quality during the transfer of honey, chocolate, meat paste, cheese, and specialized chemical media. Its exceptional pumping capability delivers significant value across the food, pharmaceutical, chemical fiber, paper, chemical, and cosmetics industries.

Product Details:

3RP series multi-head vane pump primarily consists of a rotor, shaft seal, gearbox, and a pair of synchronously meshed drive gears. When the synchronous gears drive the cam rotor to rotate in opposite directions, multiple dynamic sealed chambers form between the rotor and pump cavity, with the inlet-side chamber volume gradually increasing to draw in high-viscosity or particulate-laden media. As the rotor continues to rotate, the chambers close and move toward the outlet, enabling smooth, pulsation-free material transfer to complete the pumping process.

Application:

1. Chemical Industry: Processes resins, adhesives, paints, pigments, asphalt, and lubricants.
2. Pharmaceutical Industry: Capable of transporting ointments, nutrient solutions, vaccines, and medicinal oils.
3. Petrochemicals: Handles palm oil, fatty acids, oleic acid, stearic acid, waste oil, oil sludge, polymers, and catalysts.
4. Household Chemicals: Suitable for transporting dishwashing liquid, laundry detergent, shower gel, toothpaste, soap base, skin cream, and fragrances.
5. Food Industry: Suitable for conveying yogurt, cream, ice cream, cheese blocks, jam, yeast, ketchup, edible oils, whey, malt extract, syrup, and chocolate.

Feature:

1. Its rotors maintain a specific clearance with no friction coefficient, ensuring extended pump body service life.
2. This pump supports multi-head conveying, simultaneously meeting the conveying demands of multiple production lines.
3. It employs a cam curve design for low-shear conveying, preserving the original structure and properties of the conveyed medium.
4. It possesses robust throughput capability, accommodating particles up to 25mm in size while maintaining stable operation even with solids content ≤70%.
5. All fluid-contacting components can be constructed from 316L/304 stainless steel and feature CIP/SIP online cleaning, effectively reducing cleaning and maintenance time and costs.

Performance Data:

Model	Flow		Pressure	Rev	Power	Inlet/Outlet Size
Model	(L/100r)	(m³/h)	(Mpa)	(rpm)	(kW)	(mm)
3RP-25	6	≤1.8	0-1.0	≤600	0.75	25
3RP-32	9	≤2.7	0-1.0		1.1	32
3RP-40	18	≤4.3	0.-1.0		1.5	40
3RP-50	36	≤8.6	0-1.0		2.2	50
3RP-65	60	≤14.4	0-1.0		4	65
3RP-80	105	≤25.2	0-1.0		11	80
3RP-100A	125	≤30	0-1.0		15	100
3RP-100	150	≤36	0-1.0		18.5	100
3RP-125	250	≤60	0-1.0		22	125
