Summarize:
.jpg)

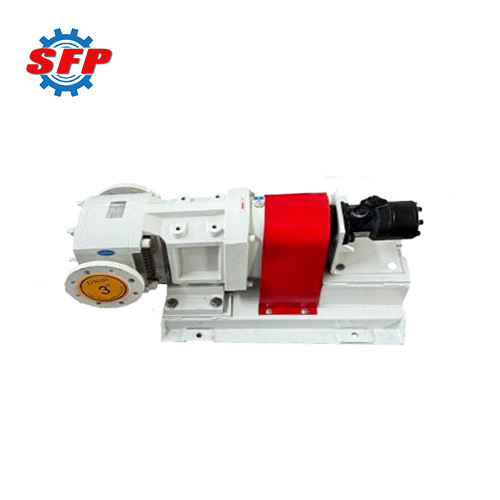

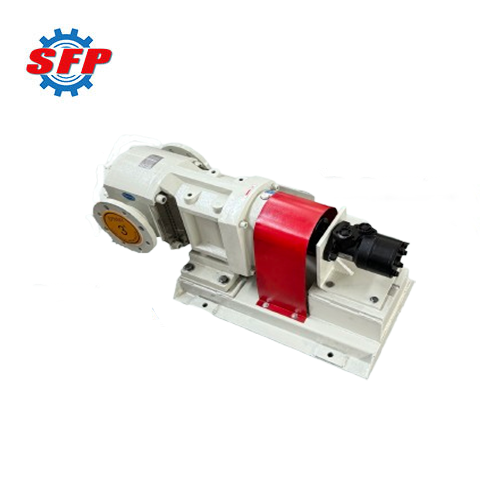

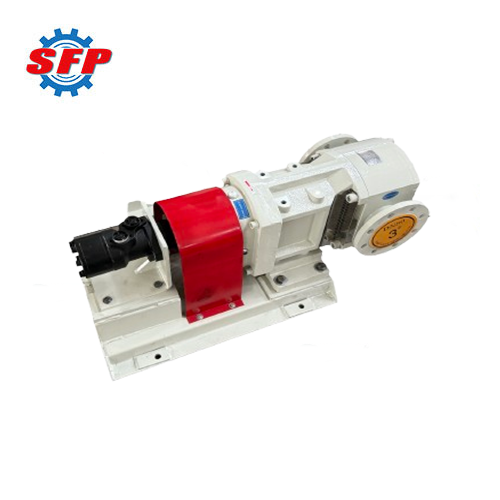

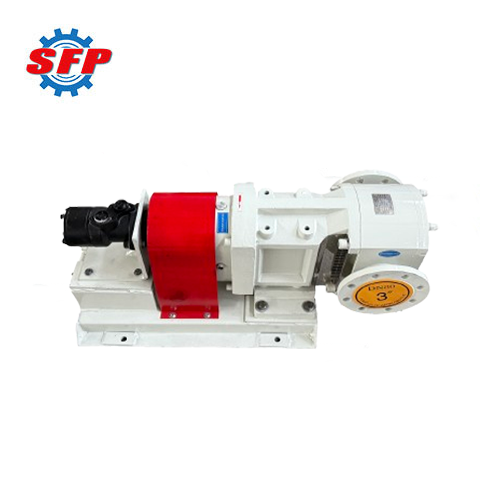

3RP alloy steel rotary pump with hydraulic drive is a positive displacement rotary pump specifically designed for the transfer of medium- to high-viscosity fluids, capable of reliably conveying suspensions containing solid particles as well as media with corrosive properties or those subject to hygiene requirements. This series utilizes a three-lobe cam rotor design, which ensures a more uniform distribution of forces on the pump body, smoother flow output, and relatively low operating speeds. The large inlet diameter provides exceptional self-priming capability, allowing the pump to rapidly establish a vacuum and draw in the medium without manual priming before startup, thereby meeting the demands of various operating conditions.
Product Details:
3RP high-viscosity rotary lobe pump utilizes the principle of positive displacement to achieve the suction and discharge of the medium. A pair of cams rotating in opposite directions in sync continuously operates within the chamber, where the volume of the sealing chamber on the suction side increases and the pressure decreases, causing the medium to be drawn into the pump chamber under atmospheric pressure. As the cams continue to rotate, when the media re-engages, the chamber volume decreases, and the media is smoothly squeezed out, creating a continuous and stable delivery process. Throughout the entire delivery process, the pump operates with low noise, minimal vibration, and minimal pulsation, maintaining a uniform flow rate even when handling high-viscosity media.
.jpg)
Application:
1. Due to the use of alloy steel with excellent resistance to corrosive media, this series can be used in the chemical and fine chemical industries to handle polymers, resins, solvents, and various high-viscosity chemical raw materials.
2. Its sanitary-grade design ensures that all components in contact with the medium meet food-grade requirements, making it suitable for use in the food and beverage industry to handle materials such as syrups, honey, jams, beer, and chocolate.
3. In the chemical and petroleum sectors, it can be used to transport high-viscosity oils such as grease, crude oil, heavy oil, and asphalt, and can also serve as a booster pump in oil transfer systems.
Feature:
1. This series of products offers high efficiency and a long service life, capable of reliably conveying suspensions containing solid particles as well as media with corrosive properties or hygiene requirements.
2. Its overall design ensures a more even distribution of forces on the pump body and a smoother flow rate, while the relatively low operating speed effectively preserves the original properties of the media.
3. The pump maintains minimal clearance between rotors and between the rotors and the pump casing at all times, resulting in minimal friction, low noise, and minimal vibration during operation.
