3RP Series Small Lobe Pump
3RP Series Small Lobe Pump
Horizontal Mini Lobe Pumps
3RP series mini lobe pump is designed to handle corrosive media and high viscosity suspensions containing solid particles. With stable flow and pressure, the pumps can meet the requirements of different industries and under different working conditions. Therefore, it is the preferred equipment for daily-use chemical, petroleum, biopharmaceutical, brewing, food and other processing industries. Besides, the pump has the advantages of reliable sealing, stable operation, strong self-priming ability, wide application and reasonable design.
Flow Rate: 6-250m3/h
Motor Power: 0.75-22Kw
Seal Type: Mechanical seal / Packing seal
Product Description
Summarize:


3RP series mini lobe pump has the advantages of compact structure, corrosion resistance, strong self-priming ability and high efficiency. It is usually used in petroleum, chemical, daily chemical, pharmaceutical, food, beverage and other industries to deal with conveying temperature -30 ℃ ~ 200 ℃, viscosity 30 ~ 1.0x10 ⁵ cSt, containing solid particles of suspended liquids and corrosive and hygienic requirements of high media. This pump is characterized by high efficiency and energy saving, low failure rate, reliable sealing, low noise and easy maintenance.

Product Details:

3RP series hygienic lobe pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear to achieve the delivery of the medium. It adopts gear transmission mode, and the main shaft and auxiliary shaft drive the rotor to rotate synchronously in reverse, so that the volume of the pump changes, thus forming a higher vacuum and discharge pressure, so it is especially suitable for sanitary media and highly corrosive high-viscosity media. In addition, the pump utilizes a high-strength cast iron gearbox, helical gears and heavy-duty bearings to ensure long-term pump operation.

Feature:

1. Pharmaceuticals: Pills, extracts, emulsions, creams.
2. Chemicals: Fats, solvents, resins and polymers, dyes.
3. Dairy Products: Yoghurt, cream, ice cream, cheese and whey.
4. Cosmetics: Creams and lotions, hairsprays, hair dyes, essential oils.
5. Beverages: Beer, wort, yeast, soft drinks, fruit juice concentrates, fruit drinks.
6. Confectionery: Syrups, cream fillings, purees, fruit fillings, puddings, jams, jellies, chocolates.
7. Foodstuffs: ketchup, vegetable pastes, sauces, sweeteners, yeast pastes, salads, meat emulsions, cooking oils.

Feature:

1. Conveying medium viscosity ≤ 2,000,000cp, can convey slurry with 70% solid content. It can also convey gas, liquid and solid three-phase mixture material.
2. The pump is equipped with variable frequency drive, the flow rate can be adjusted arbitrarily, and it can be used as an ordinary metering pump.
3. There is a certain clearance between the rotor and the rotor, no friction coefficient, so the pump has a long service life.
4. Easily cleaned by Clean-in-Place (CIP) or Steam-in-Place (SIP) methods, ideal for sanitary processing applications.
5. Fluid flow can be increased or decreased by controlling drive speed.

6. If required, the product can be fitted with a heating jacket.

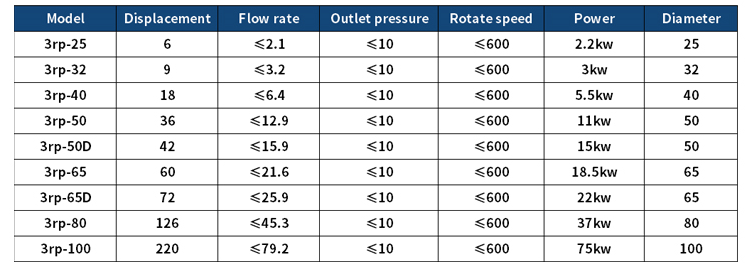

Performance Data:
Model Flow Discharge Pressure
(Mpa)
Rev
(rpm)
Motor Power
(kw)
Inlet/outlet
(mm)
L/100r m3/h
3RP-25 6 ≤1.8 0-1.0 10-400 0.75 25
3RP-32 9 ≤2.7 1.1 32
3RP-40 18 ≤4.3 1.5 40
3RP-50 36 ≤8.6 2.2 50
3RP-65 60 ≤14.4 4 65
3RP-80 105 ≤25.2 11 80
3RP-100A 125 ≤30 15 100
3RP-100 150 ≤36 18.5 100
3RP-125 250 ≤60 22 125
