3RP Series High Viscosity Lobe Pump
3RP Series High Viscosity Lobe Pump
Industrial Rotary Lobe Pumps
3RP series sanitary rotary lobe pumps can convey corrosive media and suspensions containing solid particles, so they are commonly used in brewing, food, beverage, pharmaceutical, petroleum, chemical and other processing industries. It is characterized by strong self-priming ability, high efficiency, smooth operation, easy maintenance and long service life.
Flow Rate: ≤60 m3/h
Speed: 200~1000r/min
Seal Type: Mechanical seal / Packing seal
Product Description
Summarize:

3RP series sanitary lobe pump belongs to a kind of positive displacement pumps designed to handle sanitary fluids and corrosive, high viscosity media. The internal parts of the pump in contact with the medium are made of corrosion-resistant stainless steel, which meets the hygienic standards of the food, beverage, pharmaceutical, daily chemical, petroleum and paper industries, and also effectively prevents the material from being contaminated.

Product Details:
3RP series sanitary rotary lobe pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, driving the rotor to transport media. The product is driven by gears, and the main shaft and auxiliary shaft drive the rotor to rotate synchronously and inversely, so that the volume of the pump changes, thus forming a higher vacuum and discharge pressure. In particular, the pump employs high-strength cast iron gearboxes, helical gears and heavy-duty bearings to ensure long-term pump operation.





Application:
1. Food: Tomato sauce, vegetable paste, seasoning, sweeteners, yeast paste, salad, meat emulsion, edible oil.
2. Candy: Syrup, cream stuffing, fruit puree, fruit filling, pudding, jelly, chocolate.
3. Beverages: Beer, wort, yeast, soft drinks, fruit concentrates, fruit drinks.
4. Cosmetics: Creams and lotions, hair gels, hair dyes, essential oils.
5. Dairy Products: Yogurt, cream, ice cream, cheese and whey.
6. Chemicals: Fats, solvents, resins and polymers, dyes.
7. Drugs: Pill, extract, emulsion, paste.



Feature:
1. The viscosity of the transportable medium is ≤2000000 cp, and the pump can transfer slurry containing 70% solids.
2. There is a certain gap between rotor and  rotor, no friction coefficient,so pump have a long service life time.
3. High efficiency and energy saving, stable transportation, low failure rate, no leak sealing and low noise
4. It is easy to install and disassemble,and it is convenient to maintain, clean. There is less wearing parts.
5. With VFD, the flow can be adjusted at will, and the pump can be used as a general metering pump.
6. Types of inlet/outlet Connection: Flange joint, threaded connection, quick connection.

7. It can transport gas, liquid and solid three-phase mixture materials.

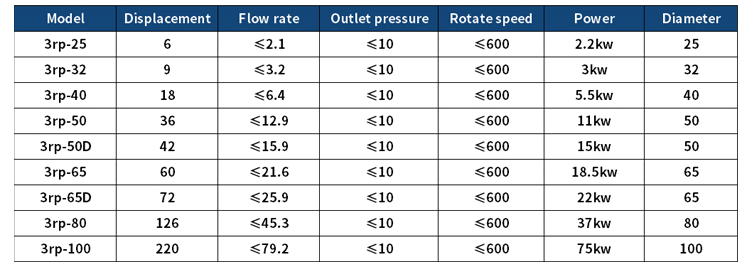

Performance Data:
Model Flow Discharge Pressure
(Mpa)
Rev
(rpm)
Motor Power
(kw)
Inlet/outlet
(mm)
L/100r m3/h
3RP-25 6 ≤1.8 0-1.0 10-400 0.75 25
3RP-32 9 ≤2.7 1.1 32
3RP-40 18 ≤4.3 1.5 40
3RP-50 36 ≤8.6 2.2 50
3RP-65 60 ≤14.4 4 65
3RP-80 105 ≤25.2 11 80
3RP-100A 125 ≤30 15 100
3RP-100 150 ≤36 18.5 100
3RP-125 250 ≤60 22 125
