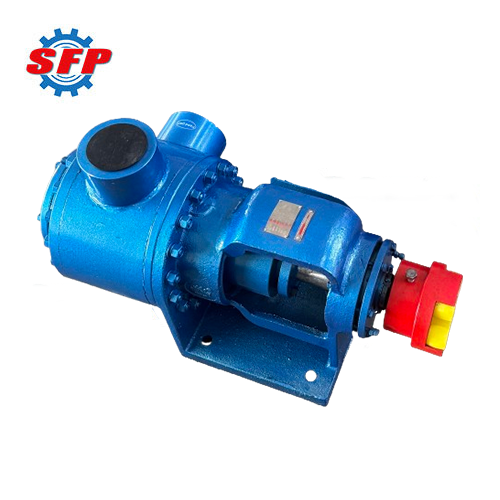

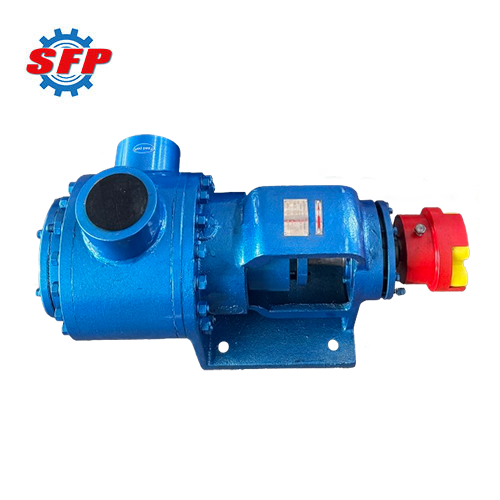

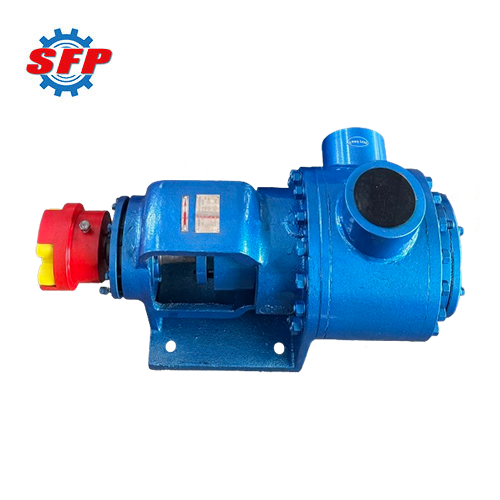

SHHLB series gear pump is an internal gear pump featuring low shear, pulsation-free operation, stable performance, and ease of maintenance. This equipment employs an involute internal gear meshing structure, utilizing crescent-shaped partitions to separate high- and low-pressure chambers, thereby achieving continuous, pulsation-free fluid delivery. Consequently, it is suitable for handling media such as asphalt and resins that solidify at ambient temperatures, possess high viscosity, or contain soft particles, making it applicable in industries including petrochemicals, chemicals, food processing, construction.
Product Details:

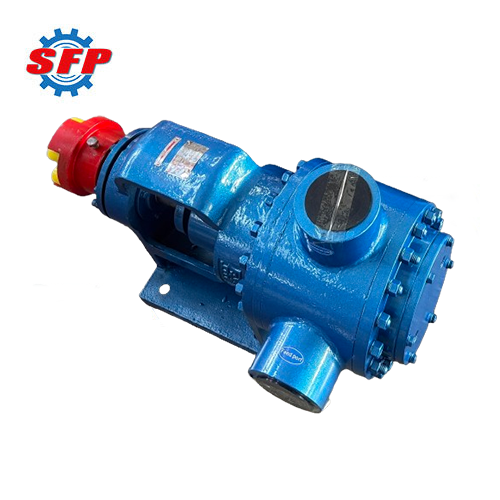

SHHLB internal gear pump primarily consists of an inner rotor, outer rotor, shaft, pump body, front cover, bracket, seals, bearings, and other components. The motor transmits power to the pump shaft via a coupling, driving the inner rotor to rotate and the rotating inner rotor engages with the outer rotor's gears, causing the outer rotor to turn and form variable-volume sealed chambers. As the suction-side chamber gradually expands, the resulting negative pressure rapidly draws high-viscosity media into the inlet. This medium is continuously rotated with the chamber and rotors toward the discharge side, where it is smoothly pushed to the outlet under pulsation-free, low-shear compression.
Application:
1. Chemical sector: Handles resins, adhesives, coatings, inks, rubber solutions, and polymers.
2. Food industry: Suitable for conveying chocolate, malt syrup, honey, jam, condensed milk, and similar media.
3. High-viscosity oils: Capable of conveying heavy oil, fuel oil, asphalt, paraffin, crude oil, biodiesel, and silicone oil.
4. Consumer goods: Processes laundry detergent, dishwashing liquid, body wash, soap pellets, fragrances, candles, and car wax.
Feature:
1. It delivers stable, pulsation-free output pressure, making it a direct replacement for screw pumps in specific applications.
2. The front-opening design allows maintenance and cleaning without disassembling pipelines, significantly reducing downtime.
3. This equipment handles a wide range of materials, smoothly conveying everything from asphalt and resin to honey and chocolate.
