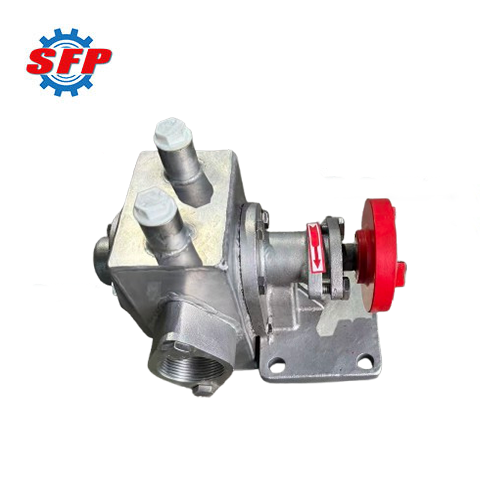

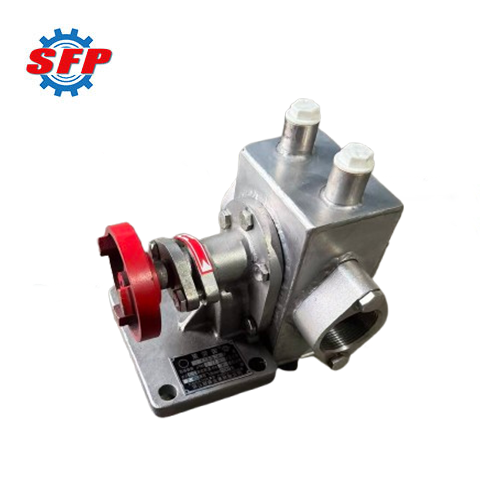

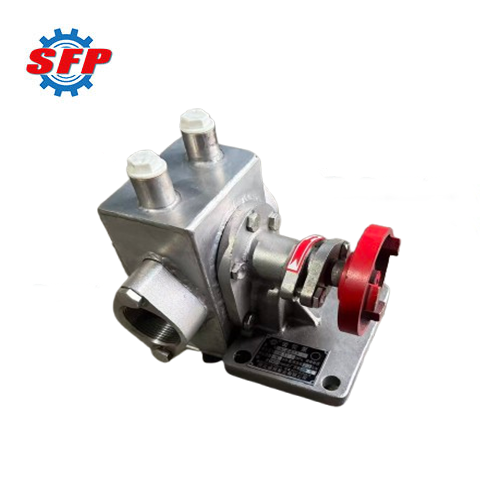

KCB series gear pump is an external gear pump with a compact structure, low noise, long service life, easy maintenance, and strong self-priming capabilities. This equipment can handle non-corrosive lubricating fluids with viscosities ranging from 5 to 1500 cst, including diesel fuel, heavy oil, crude oil, vegetable oil, and lubricating oil. Furthermore, it utilizes advanced gear design and precision manufacturing technology to effectively reduce energy consumption during pumping, thereby significantly improving transfer efficiency and extending its service life.
Product Details:
KCB series lubricating oil gear pump mainly consists of gears, shafts, pump body, valves, and shaft end seals. During operation, the internal components are automatically lubricated by the conveyed medium. Furthermore, to minimize the torque acting on the gears during operation, this series of pumps employs a rationally designed oil discharge and return chamber structure.
Application:
1. Paper industry: Suitable for transporting acids, soap solutions, alkaline solutions, black liquor, kaolin, lime, latex, and sludge.
2. Petrochemical industry: It can be used to process pure asphalt or filler asphalt, tar, diesel, crude oil, and lubricating oil.
3. Food industry: Used to process chocolate, cocoa butter, fillers, sugars, vegetable oils, and molasses.
4. Chemical industry: Sodium silicate, acids, plastics, and mixed chemicals can all be transported.
Feature:
1. This device utilizes a gear meshing structure and incorporates vibration damping design to ensure a quiet working environment during operation, thus guaranteeing low noise performance.
2. This pump has excellent self-priming capabilities, achieving self-priming without external assistance, making it easy to operate and particularly suitable for some special and demanding working environments.
3. Its pump body, including the gears and casing, is manufactured from high-quality materials, ensuring long-term stable operation and reducing the failure rate.
Performance Data:
| Model |
Capacity Q |
Speed |
Exhaust Pressure |
Motor Power |
| m³/h |
l/min |
r/min |
Mpa |
Kw |
| KCB-18.3 |
1.1 |
18.3 |
1400 |
1.45 |
1.5 |
| KCB-33.3 |
2 |
33.3 |
1420 |
1.45 |
2.2 |
| KCB-55 |
3.3 |
55 |
1400 |
0.33 |
1.5 |
| KCB-83.3 |
5 |
83.3 |
1420 |
0.33 |
2.2 |
| KCB-135 |
8 |
135 |
940 |
0.33 |
2.2 |
| KCB-200 |
12 |
200 |
1440 |
0.33 |
4 |
| KCB-300 |
18 |
300 |
960 |
0.36 |
5.5 |
| KCB-483.3 |
29 |
483.3 |
1440 |
0.36 |
7.5 |
| KCB-633 |
38 |
633 |
970 |
0.28 |
11 |
| KCB-960 |
58 |
960 |
1470 |
0.28 |
11 |
| KCB-1200 |
72 |
1200 |
740 |
0.6 |
37 |
| KCB-1600 |
96 |
1600 |
980 |
45 |
| KCB-1800 |
110 |
1800 |
740 |
0.6 |
55 |
| KCB-2500 |
150 |
2500 |
985 |
75 |
| KCB-2850 |
170 |
2850 |
740 |
0.6 |
90 |
| KCB-3800 |
230 |
3800 |
989 |
110 |
| KCB-4100 |
245 |
4100 |
743 |
0.6 |
132 |
| KCB-5400 |
325 |
5400 |
989 |
160 |
| KCB-5600 |
330 |
5600 |
744 |
0.6 |
160 |
| KCB-7600 |
460 |
7600 |
989 |
200 |
| KCB-7000 |
420 |
7000 |
744 |
0.6 |
185 |
| KCB-9600 |
570 |
9600 |
989 |
250 |
| KCB-13000 |
800 |
13000 |
490 |
0.6 |
315 |
