CBN Series Gear Pump for Oil Transfer
CBN Series Gear Pump for Oil Transfer
CBN Gear Pump for Oil Transfer

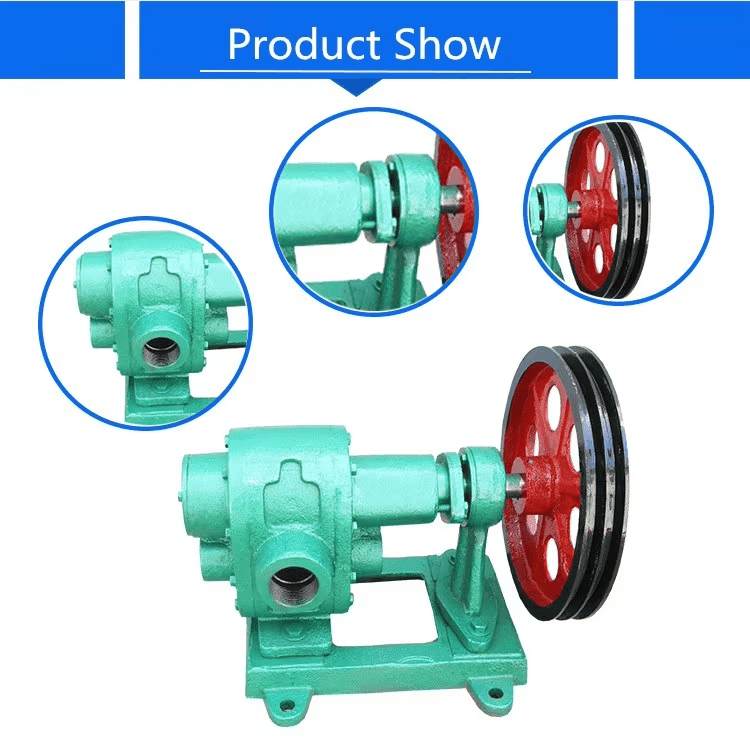

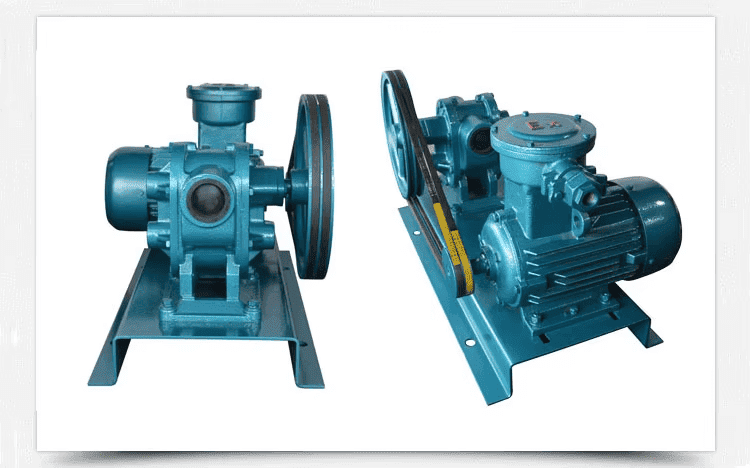

CBN series gear oil pumps are suitable for transferring various viscous liquids in mining, construction, lifting and transportation, agriculture, industrial automation and other fields. The pump adopts bridge type external belt pulley and direct connection motor design, featuring low noise, large suction force, compact structure and smooth operation.
Flow Rate: 4-60m3/h
Power: 1.5-22kW
Discharge Pressure: 0.4/0.6/0.75Mpa
Product Description
Summarize:

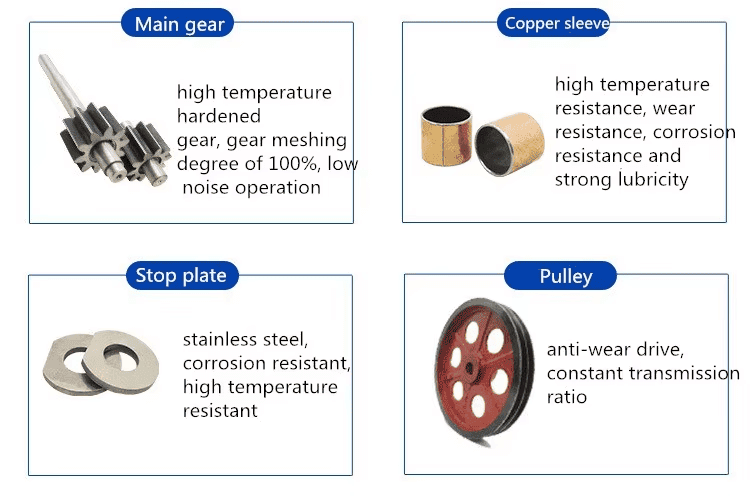

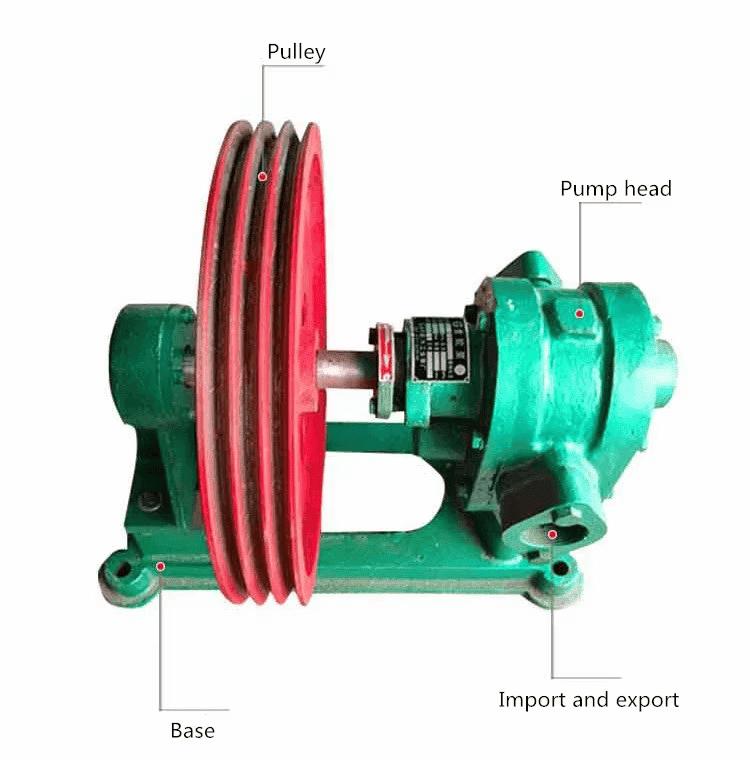

CBN series gear oil pump consists of pump body, pump cover, gear, shaft end seal and other parts. It adopts bridge type external belt wheel drive and motor direct connection method, which is characterized by low rotational speed, low noise and large suction range. On the other hand, the seal adopts 2 kinds of mechanical seal structure according to different conveying liquids. And the series are all made of stainless steel acid-proof and anti-corrosion material, which is suitable for food industry, pharmaceutical and daily-use chemical industry.
Product Details:



Application:
It is suitable for all kinds of viscous liquids and can be used under the conditions of temperature less than 230℃ and viscosity about 2000m2/s. It can be used for the following applications It can convey paint, rosin, paraffin, soap, sludge, asphalt, high-viscosity oil, butter, syrup, sauce products, grease, toothpaste, pharmaceutical raw materials and all kinds of liquid paste products.
Product Configuration:
Model Number CBN
Voltage 110V/220V/380V/415V/480V
Outlet Size 32-100mm
Power 1.5-22kW
Pressure Low pressure
Medium High viscosity
Performance Data:
Model Port(mm) Flow(m3/h) L/min Pressure(Mpa) Speed(r/min) Motor Power(w)
CBN -4 32 4 66 0.75 960 1.5
CBN -7 40 7 116 0.75 960 3
CBN -13 50 13 216 0.75 960 5.5
CBN -18 70 18 300 0.6 960 7.5
CBN -30 80 30 500 0.6 960 11
CBN -45 100 45 750 0.6 960 15
CBN -60 100 60 1000 0.4 960 22
