Product Description

Summarize:

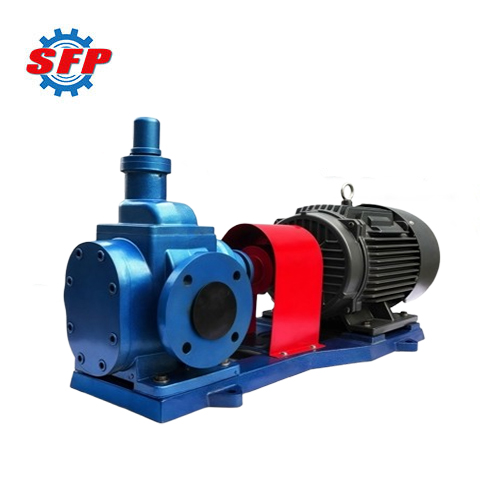

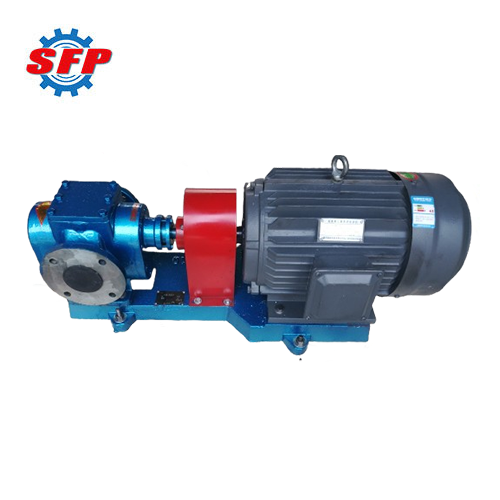

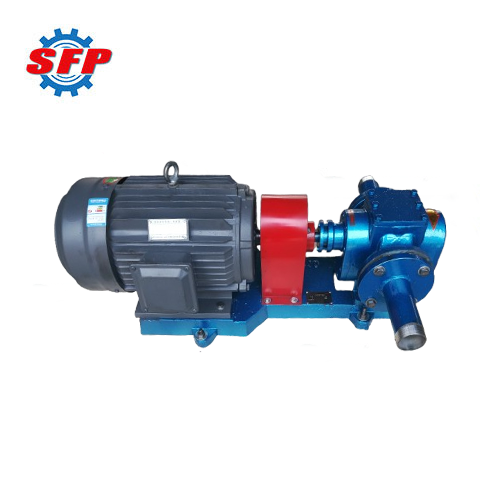

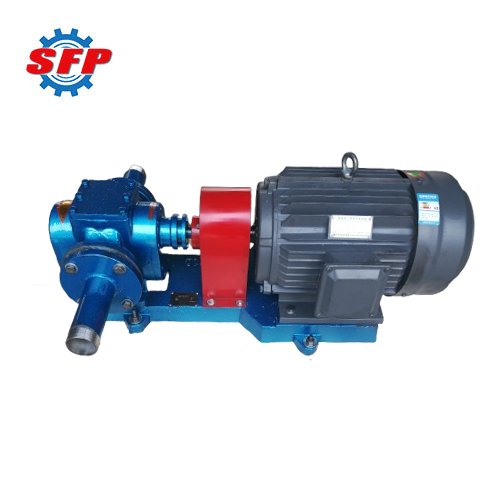

YCB series arc gear oil pump is an external arc gear pump featuring a double-arc sine curve tooth profile design, which offers advantages such as smooth delivery, low noise, and extended service life. It is suitable for conveying non-corrosive liquids free of solid particles, including lubricating oils, hydraulic fluids, heavy oils, diesel, and fuel oils with viscosities ranging from 5 to 1500 cSt. This pump delivers efficient and reliable solutions for industrial transfer operations while serving as an ideal choice for pharmaceutical, construction, chemical, and building materials industries.

Product Details:

YCB series oil gear pump conveys fluid through changes in the working volume between the pump casing and the meshing gears. When the two gears, pump casing, and front/rear covers form two sealed chambers, rotation of the gears in a specific direction causes the meshing side chamber volume to expand from small to large, creating a vacuum that draws in fluid. This process then forces the fluid into the discharge pipe.

Application:

1. It can be used as a drive pump and booster pump in oil transmission systems.
2. This machine is able to serve as a drive pump, booster pump, and injection pump in fuel systems.
3. It can be employed as a lubricating oil pump across all industrial sectors.
4. The use of this machine can function as a hydraulic pump, providing hydraulic power for hydraulic transmission systems

Feature:

1. This pump employs a dual-rotation structure, allowing for replacement at the discharge end.
2. Its precision-engineered tooth profile ensures low-noise operation, making it ideal for quiet environments.
3. This pump features a curved gear design that effectively reduces energy loss, boosting efficiency by over 15%.
4. To enable long-term continuous operation, the gears are crafted from high-wear-resistant alloy steel, extending service life by 30%.

Performance Data:

Model	Flow (m³/h)	Presure (Mpa)	Rev (r/min)	Npshr (m)	Frequency (hz)
Model	Flow (m³/h)	Presure (Mpa)	Rev (r/min)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6	0.6	910	5.5	50
	1		1390		50
	0.7		1130		60
	1.2		1710		60
YCB0.6-1.6	0.6	1.6	910	7	50
	1		1400		50
	0.7		1130		60
	1.2		1710		60
YCB1.6-0.6	1.6	0.6	910	5.5	50
	2.5		1400		50
	1.9		1130		60
	3		1710		60
YCB1.6-1.6	1.6	1.6	940	7	50
	2.5		1440		50
	1.9		1150		60
	3		1750		60
YCB3.3-0.6	3.3	0.6	940	5	50
	5		1420		50
	4		1150		60
	6		1730		60
YCB3.3-1.6	3.3	1.6	960	7	50
	5		1440		50
	4		1170		60
	6		1750		60
YCB4-0.6	4	0.6	940	5	50
	6		1420		50
	4.8		1150		60
	6		1730		60
YCB4-1.6	4	1.6	960	7	50
	6		1440		50
	4.8		1170		60
	7.2		1750		60
YCB8-0.6	8	0.6	960	5	50
	12		1440		50
	9.6		1170		60
	14.4		1750		60
YCB8-1.6	8	1.6	970	7	50
	12		1460		50
	9.6		1170		60
	14.4		1760		60
YCB10-0.6	10	0.6	960	5	50
	15		1440		50
	12		1170		60
	18		1750		60
YCB10-1.6	10	.1.6	970	7	50
	15		1470		50
	12		1170		60
	18		1770		60
