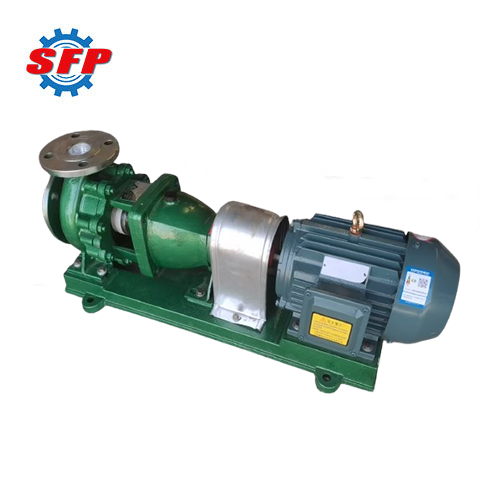

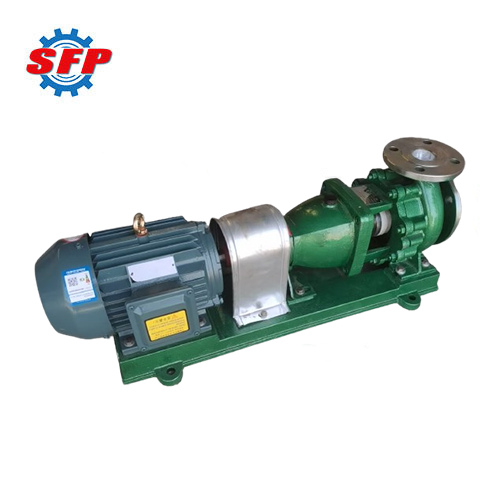

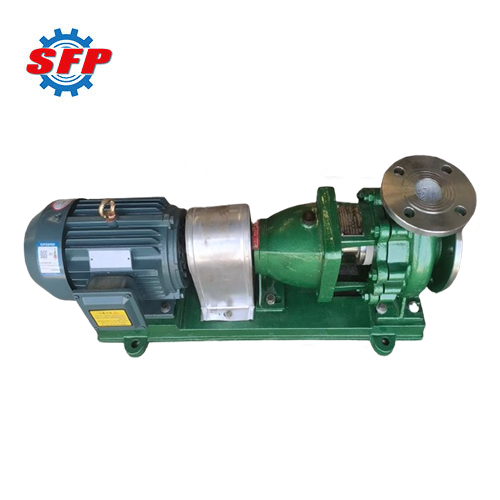

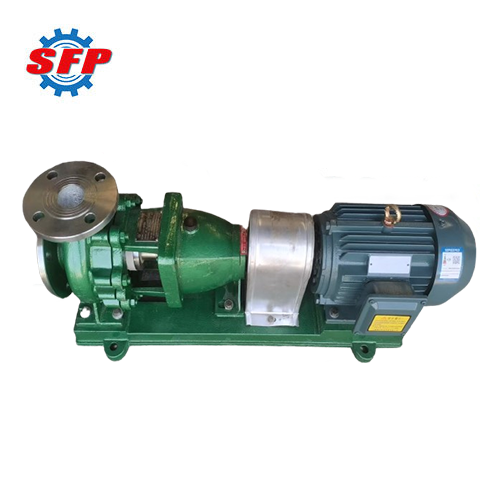

IH series corrosion resistant chemical pumps conform to international standards in terms of model designation, rated performance parameters, external dimensions, and overall specifications, and can serve as a replacement for F-type corrosion-resistant centrifugal pumps. Designed specifically for the chemical industry, this series is suitable for conveying corrosive liquid media free of solid particles and with viscosity similar to water, offering high-efficiency operation, stable performance, and zero leakage characteristics.
| Model | Speed | Flow (m³/h) |
Flow (L/S) |
Head (m) |
Power | ||
| Medium Density | |||||||
| 1.0 | 1.35 | 1.85 | |||||
| IH50-32-125 | 2900 | 12.5 | 3.47 | 20 | 2.2 | 6.0 | 4.0 |
| 1450 | 6.3 | 1.74 | 5.0 | 0.55 | 0.55 | 0.55 | |
| IH50-32-160 | 2900 | 12.5 | 3.47 | 32 | 3.0 | 4.0 | 5.5 |
| 1450 | 6.3 | 1.74 | 8.0 | 0.55 | 0.75 | 1.1 | |
| IH50-32-200 | 2900 | 12.5 | 3.47 | 50 | 5.5 | 7.5 | 11 |
| 1450 | 6.3 | 1.74 | 12.5 | 1.1 | 1.1 | 1.5 | |
| IH50-32-250 | 2900 | 12.5 | 3.47 | 80 | 11 | 15 | 18.5 |
| 1450 | 6.3 | 1.74 | 20 | 2.2 | 2.2 | 3.0 | |
| IH65-50-125 | 2900 | 25 | 1.53 | 2.0 | 3.0 | 4.0 | 5.5 |
| 1450 | 12.5 | 6.94 | 5.0 | 0.55 | 0.55 | 0.75 | |
| IH65-50-160 | 2900 | 25 | 2.78 | 32 | 5.5 | 7.5 | 11 |
| 1450 | 12.5 | 6.94 | 8.0 | 0.75 | 1.1 | 1.5 | |
| IH65-40-200 | 2900 | 25 | 2.92 | 50 | 11 | 11 | 15 |
| 1450 | 12.5 | 6.94 | 12.5 | 1.5 | 2.2 | 2.2 | |
| IH65-40-250 | 2900 | 25 | 2.92 | 80 | 15 | 3.0 | 30 |
| 1450 | 12.5 | 6.94 | 20 | 2.2 | 37 | 4.0 | |
| IH65-40-315 | 2900 | 25 | 3.06 | 125 | 30 | 5.5 | 55 |
| 1450 | 12.5 | 6.94 | 32.0 | 5.5 | 5.5 | 7.5 | |
| IH80-65-125 | 2900 | 50 | 13.9 | 20 | 5.5 | 7.5 | 11 |
| 1450 | 25 | 6.94 | 5.0 | 0.75 | 1.1 | 1.5 | |
| IH80-65-160 | 2900 | 50 | 13.9 | 32 | 11 | 11 | 15 |
| 1450 | 25 | 6.94 | 8.0 | 1.5 | 1.5 | 2.2 | |
| IH80-50-200 | 2900 | 50 | 13.9 | 50 | 15 | 18.5 | 30 |
| 1450 | 25 | 6.94 | 12.5 | 1.1 | 1.5 | 2.2 | |
| IH80-50-250 | 2900 | 50 | 13.9 | 80 | 30 | 37 | 45 |
| 1450 | 25 | 6.94 | 20 | 4.0 | 5.5 | 7.5 | |
| IH80-50-315 | 2900 | 50 | 13.9 | 125 | 45 | 55 | 75 |
| 1450 | 25 | 6.94 | 32 | 7.5 | 7.5 | 11 | |
| IH100-80-125 | 2900 | 100 | 27.8 | 20 | 11 | 15 | 18.5 |
| 1450 | 50 | 13.9 | 5.0 | 1.5 | 2.2 | 3.0 | |
| IH100-80-160 | 2900 | 100 | 27.8 | 32 | 15 | 22 | 30 |
| 1450 | 50 | 13.9 | 8.0 | 2.2 | 3.0 | 4.0 | |
| IH100-65-200 | 2900 | 100 | 27.8 | 50 | 30 | 37 | 45 |
| 1450 | 50 | 13.9 | 12.5 | 3.0 | 4.0 | 5.5 | |
| IH100-65-250 | 2900 | 100 | 27.8 | 80 | 45 | 55 | 75 |
| 1450 | 50 | 13.9 | 20 | 5.5 | 7.5 | 11 | |
| IH100-65-315 | 2900 | 100 | 55.6 | 125 | 75 | 90 | 132 |
| 1450 | 50 | 27.8 | 32 | 11 | 15 | 18.5 | |
| IH125-100-200 | 2900 | 200 | 55.6 | 50 | 45 | 55 | 90 |
| 1450 | 100 | 27.8 | 12.5 | 7.5 | 11 | 15 | |
| IH125-100-250 | 2900 | 200 | 55.6 | 80 | 11 | 110 | 132 |
| 1450 | 100 | 27.8 | 20 | 132 | 15 | 18.5 | |
| IH125-100-315 | 2900 | 200 | 55.6 | 125 | 18.5 | 160 | 220 |
| 1450 | 100 | 27.8 | 32 | 18.5 | 22 | 30 | |
| IH125-100-400 | 1450 | 100 | 27.8 | 50 | 18.5 | 30 | 37 |
| IH50-125-250 | 1450 | 200 | 55.6 | 20 | 30 | 30 | 37 |
| IH50-125-315 | 1450 | 200 | 55.6 | 32 | 30 | 37 | 55 |
| IH50-125-400 | 1450 | 200 | 55.6 | 50 | 55 | 75 | 90 |
| IH200-150-250 | 1450 | 400 | 111.1 | 20 | 37 | 55 | 75 |
| IH200-150-315 | 1450 | 400 | 111 | 32 | 55 | 75 | 110 |
| IH200-150-400 | 1450 | 400 | 111 | 50 | 90 | 132 | 160 |
