Product Description

Summarize:

IH series anti-corrosion centrifugal pump can meet your conveying requirements of water, corrosive, flammable, explosive, or poisonous and harmful chemical media. This machine adopts international standard ISO2858-1975(E), which is an energy-saving updated product of the Ministry of Machinery Industry to replace F-type corrosive centrifugal pump. The temperature of the medium conveyed by this pump is generally ≤80℃, and appropriate cooling measures can be taken to improve the temperature of the conveyed medium if necessary. Therefore, it is widely used in chemical, petroleum, agriculture, pharmaceutical, electric power and other industries.

Product Details:

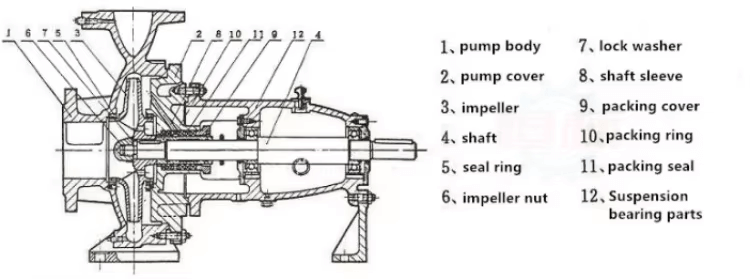

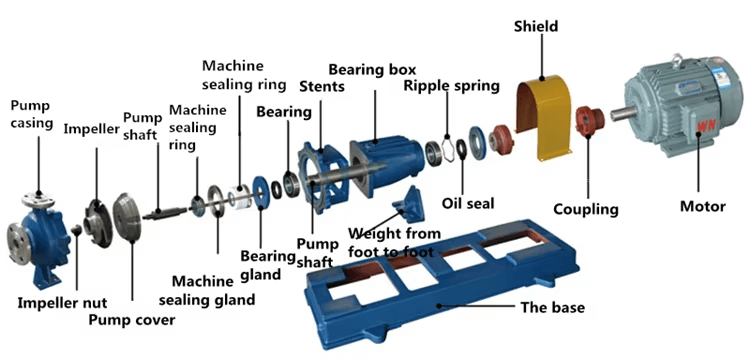

IH series anti-corrosion centrifugal pump is mainly composed of vane drive line, sealing nut, pump cover, impeller, intermediate bracket, seals, suspension parts, shaft and so on. The pump cover is reserved on the middle fixed bracket through the connector, and then the pump cover is clamped in the middle through the connection between the pump body and the middle bracket. The pump body is axial suction, radial discharge, foot bearing type, which can be fixed on the base directly.

Application:

IH series anti-corrosion centrifugal pump is applicable for handling alkaline corrosive, acid corrosive and alkali corrosive media, which is often used in petroleum, chemical, metallurgy, synthetic fiber, pharmaceutical, food and other industries. Meanwhile, this machine is suitable for conveying water or other liquids with physical and chemical properties similar to water, so you can use this machine in water, industrial and urban water supply as well as irrigation and drainage of farms and orchards.

Performance Data:

Model	Speed	Flow (m3/h)	Flow (L/S)	Head (m)	Power
					Medium Density
					1.0	1.35	1.85
IH50-32-125	2900	12.5	3.47	20	2.2	6.0	4.0
IH50-32-125	1450	6.3	1.74	5.0	0.55	0.55	0.55
IH50-32-160	2900	12.5	3.47	32	3.0	4.0	5.5
IH50-32-160	1450	6.3	1.74	8.0	0.55	0.75	1.1
IH50-32-200	2900	12.5	3.47	50	5.5	7.5	11
IH50-32-200	1450	6.3	1.74	12.5	1.1	1.1	1.5
IH50-32-250	2900	12.5	3.47	80	11	15	18.5
IH50-32-250	1450	6.3	1.74	20	2.2	2.2	3.0
IH65-50-125	2900	25	1.53	2.0	3.0	4.0	5.5
IH65-50-125	1450	12.5	6.94	5.0	0.55	0.55	0.75
IH65-50-160	2900	25	2.78	32	5.5	7.5	11
IH65-50-160	1450	12.5	6.94	8.0	0.75	1.1	1.5
IH65-40-200	2900	25	2.92	50	11	11	15
IH65-40-200	1450	12.5	6.94	12.5	1.5	2.2	2.2
IH65-40-250	2900	25	2.92	80	15	3.0	30
IH65-40-250	1450	12.5	6.94	20	2.2	37	4.0
IH65-40-315	2900	25	3.06	125	30	5.5	55
IH65-40-315	1450	12.5	6.94	32.0	5.5	5.5	7.5
IH80-65-125	2900	50	13.9	20	5.5	7.5	11
IH80-65-125	1450	25	6.94	5.0	0.75	1.1	1.5
IH80-65-160	2900	50	13.9	32	11	11	15
IH80-65-160	1450	25	6.94	8.0	1.5	1.5	2.2
IH80-50-200	2900	50	13.9	50	15	18.5	30
IH80-50-200	1450	25	6.94	12.5	1.1	1.5	2.2
IH80-50-250	2900	50	13.9	80	30	37	45
IH80-50-250	1450	25	6.94	20	4.0	5.5	7.5
IH80-50-315	2900	50	13.9	125	45	55	75
IH80-50-315	1450	25	6.94	32	7.5	7.5	11
IH100-80-125	2900	100	27.8	20	11	15	18.5
IH100-80-125	1450	50	13.9	5.0	1.5	2.2	3.0
IH100-80-160	2900	100	27.8	32	15	22	30
IH100-80-160	1450	50	13.9	8.0	2.2	3.0	4.0
IH100-65-200	2900	100	27.8	50	30	37	45
IH100-65-200	1450	50	13.9	12.5	3.0	4.0	5.5
IH100-65-250	2900	100	27.8	80	45	55	75
IH100-65-250	1450	50	13.9	20	5.5	7.5	11
IH100-65-315	2900	100	55.6	125	75	90	132
IH100-65-315	1450	50	27.8	32	11	15	18.5
IH125-100-200	2900	200	55.6	50	45	55	90
IH125-100-200	1450	100	27.8	12.5	7.5	11	15
IH125-100-250	2900	200	55.6	80	11	110	132
IH125-100-250	1450	100	27.8	20	132	15	18.5
IH125-100-315	2900	200	55.6	125	18.5	160	220
IH125-100-315	1450	100	27.8	32	18.5	22	30
IH125-100-400	1450	100	27.8	50	18.5	30	37
IH50-125-250	1450	200	55.6	20	30	30	37
IH50-125-315	1450	200	55.6	32	30	37	55
IH50-125-400	1450	200	55.6	50	55	75	90
IH200-150-250	1450	400	111.1	20	37	55	75
IH200-150-315	1450	400	111	32	55	75	110
IH200-150-400	1450	400	111	50	90	132	160
