Product Description

Summarize:

IS series centrifugal water pumps are suitable for pumping clear, physico-chemical properties similar to water without solid particles and liquid. It is suitable for industrial and urban water supply, drainage, pressure water supply for high-rise buildings, garden sprinkling, fire-fighting pressure boosting, long-distance transportation and other fields. The series has reasonable design, compact structure, reliable performance, small volume, light weight, easy installation and maintenance.

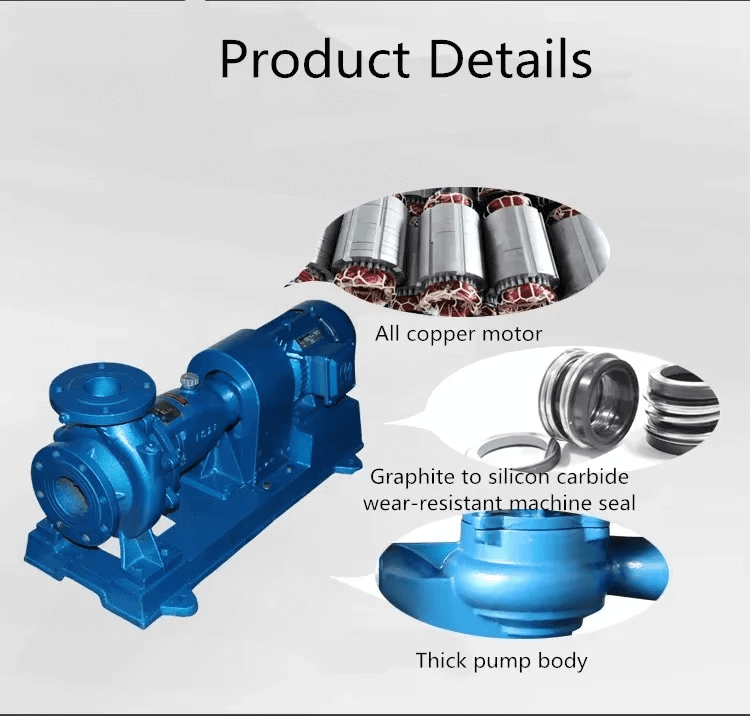

Product Details:

Due to the rotation of the impeller, the fluid in the center of the impeller to form a low-pressure zone, the outside of the fluid in the role of atmospheric pressure is pressed into the pump. The fluid entering the pump rotates with the impeller, and under the action of centrifugal force, the fluid is thrown to the outer edge of the impeller. The thrown fluid enters the worm chamber of the pump casing. The shape of the worm casing makes the speed of the fluid gradually decrease, and the kinetic energy is converted into pressure energy, which makes the pressure of the fluid increase. Finally, the fluid is guided to the discharge outlet and discharged from the pump.

Application:

IS series submersible centrifugal pumps are suitable for industrial and urban water supply and drainage as well as agricultural irrigation and drainage, conveying clear water or other liquids with similar physical and chemical properties as well as clear water. They can be applied to environmental protection systems, paper making, metallurgy, galvanizing, smelting, dye wastewater treatment, electroplating and dyeing systems, chemical wastewater treatment, etc.

Feature:

1. Absolute concentricity of the pump shaft and excellent dynamic and static balance of the impeller ensure smooth operation without vibration.
2. It is characterized by high efficiency and energy saving, its efficiency and suction range reach the international average advanced level.
3. The series pumps have simple structure, reliable performance, small volume, light weight, easy installation and maintenance.
4. Adoption of hard alloy seals made of different materials ensures no leakage.

Performance Data:

No.	Model	Flow (m3/hrs)	Head (m)	Power (w)	Speed (r/m)
1	IS50-32-125	12.5	20	2.2	3000
2	IS50-32-160	12.5	32	3	3000
3	IS50-32-200	12.5	50	5.5	3000
4	IS50-32-250	12.5	80	11	3000
5	IS65-50-125	25	20	3	3000
6	IS65-50-160	25	32	5.5	3000
7	IS65-40-200	25	50	7.5	3000
8	IS65-40-250	25	80	15	3000
9	IS65-40-315	25	125	30	3000
10	IS80-65-125	50	20	5.5	3000
11	IS80-65-160	50	32	7.5	3000
12	IS80-50-200	50	50	15	3000
13	IS80-50-250	50	80	22	3000
14	IS80-50-315	50	125	37	3000
15	IS100-80-125	100	20	11	3000
16	IS100-80-160	100	32	15	3000
17	IS100-65-200	100	50	22	3000
18	IS100-65-250	100	80	37	3000
19	IS100-65-315	100	125	75	3000
20	IS100-65-315	100	125	11	1450
21	IS125-100-200	200	50	45	3000
22	IS125-100-250	200	80	75	3000
23	IS125-100-250	200	80	11	1450
24	IS125-100-315	200	125	110	3000
25	IS125-100-315	200	125	15	1450
26	IS125-100-400	100	50	30	1450
27	IS150-125-250	200	20	18.5	1450
28	IS150-125-315	200	32	30	1450
29	IS150-125-400	200	50	45	1450
30	IS200-150-250	400	20	37	1450
31	IS200-150-315	400	32	55	1450
32	IS200-150-400	400	50	90	1450
