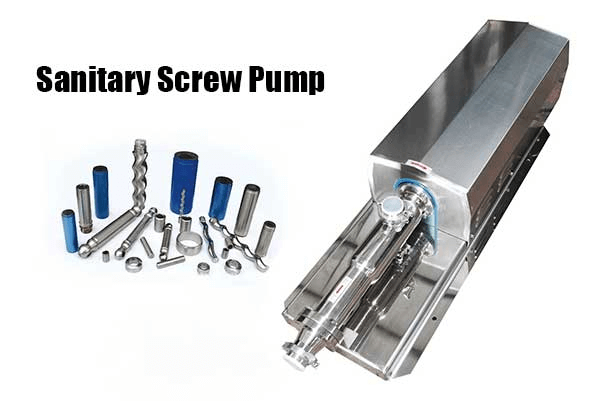

CE Certified G Series Stainless Steel Single Screw Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

G series stainless steel screw pump can be used to transport high viscosity media, media containing hard suspended particles or solid particles. It is usually widely used in petroleum, food, paper making, construction, shipbuilding, chemical industry, power plant and other industries. Moreover, as the pump adopts high-quality materials and advanced technology, it makes the output liquid continuous and uniform, with stable pressure and no change in the composition of sensitive liquid.

Product Details:

G series slurry centrifgual pump's stator is made of a variety of elastic materials, so the pump can transport highly viscous fluids, as well as hard suspended particulate media or media containing fibers. The flow rate of the product is proportional to the rotational speed, and the transmission can be directly driven by couplings, or by speed-regulated motors, delta belts, gear box transmissions.

Application:

1. Environmental Protection: Industrial sewage, domestic sewage, and sludge turbid water containing solid particles and short fibers are especially used in oil-water separator plate and frame filter press equipment.
2. Petroleum Industry: Transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation, and the like.
3. Printing: High viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry.
4. Food Industry: All kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry.
5. Shipbuilding Industry: Round bottom cleaning, oil water, oil residue, oil sewage and other ring transportation.

Advantage:

The flow rate of the screw pump is proportional to the speed. The transmission can be directly driven by couplings, or variable speed can be achieved by speed-regulating motors, V-belts, gearboxes and other devices. This kind of pump has few parts, compact structure, small volume, simple maintenance, rotor and stator are the vulnerable parts of the pump, simple structure, easy to assemble and disassemble.
1. Stepless speed regulation and electromagnetic speed regulation can be customized according to requirements.
2. Sanitary standard, all stainless steel polished treatment, cart funnel can be customized.
3. Compared with other rotary pumps, it is less sensitive to incoming gas and dirt.
4. Uniform and continuous flow, low vibration and low noise.
5.Wide range of types and viscosity of transported liquids.
6. Solid structure, easy to install and maintain.

Parameter Data:

Model	Flow (m3/h)	Pressure (Mpa)	Speed (r/min)	Power (kw)	NPSH (m)	Inlet (mm)	Outlet (mm)	Grain Diameter (mm)	Fiber Length (mm)
G20-1	0.8	0.6	960	0.75	4	25	25	1.5	25
G20-2		1.2		1.5
G25-1	2	0.6	960	1.5		32	25	2	30
G25-2		1.2		2.2
G30-1	5	0.6	960	2.2		50	40	2.5	35
G30-2		1.2		3
G35-1	8	0.6	960	3		65	50	3	40
G35-2		1.2		4
G40-1	12	0.6	960	4		80	65	3.8	45
G40-2		1.2		5.5
G50-1	20	0.6	960	5.5	4.5	100	80	5	50
G50-2		1.2		7.5
G60-1	30	0.6	960	11	5	125	100	6	60
G60-2		1.2		15
G70-1	45	0.6	720	11		150	125	8	70
G70-2		1.2		15
G85-1	60	0.6	720	15		150	150	10	80
G85-2		1.2	450	22
G105-1	80	0.6	400	22		200	200	15	110
G105-2		1.2	350	30
G135-1	120	0.6	350	37		250	250	20	150
G135-2		1.2	280
