3RP Series Sanitary Lobe Pump
3RP Series Sanitary Lobe Pump

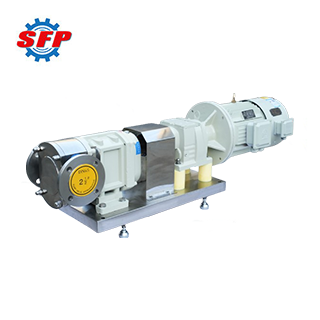

3RP Multi-Head Lobe Pumps
3RP multi-head lobe pump is designed to convey sanitary and corrosive high viscosity fluids in food, beverage, daily chemical, pharmaceutical, petroleum, chemical and other industries. It is especially suitable for occasions and industries with strict requirements on the production environment, which can ensure the hygiene and safety of the medium. This machine has the features of high efficiency, strong conveying capacity, adjustable flow rage and high sanitary ability.
Flow Rate: 6-250m3/h
Motor Power: 0.75-22Kw
Seal Type: Mechanical seal / Packing seal
Product Description
Summarize:

3RP series multi-head lobe pumps can handle suspensions, corrosive media and suspensions suitable for soft solid particles. Usually the temperature range of the conveyed medium is -30~130 ℃, and the viscosity range is 30 cst~1.0×105 cst. In order to ensure the corrosion resistance and hygiene of the liquid, the internal parts of this pump in contact with the medium are all made of durable stainless steel. Therefore, it is widely used in food, beverage, pharmaceutical, chemical, daily chemical, petroleum and other processing industries.
Product Details:

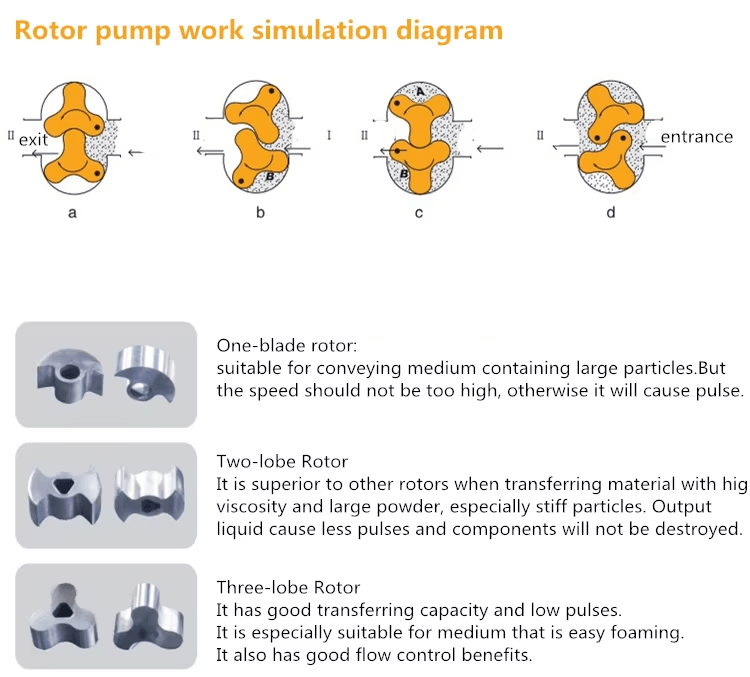

3RP series multi-head lobe pump mainly consists of rotor, shaft seal, gear box, and a pair of synchronized meshing active gears, which drive the rotor to convey the medium. It consists of two synchronized rotors/cams driven by a pair of synchronized gears in the gearbox. Driven by the main shaft and the secondary shaft, the two rotors rotate in opposite directions, thus changing the volume of the pump and increasing the vacuum and discharge pressure. In addition, the pump utilizes a high-strength cast iron gearbox, helical gears, and heavy-duty bearings to ensure long-term pump operation.

Application:
1. Food industry: Yogurt, ice cream, cheese, soft drinks, jelly, ketchup, oil, syrup, chocolate, etc.
2. Daily chemical industry: Facial cleanser, hair gel, hair dye, toothpaste, shampoo, shoe polish, cosmetics, etc.
3. Pharmaceuticals: Nutrient solution, proprietary Chinese medicine, medicinal oil, biological products, etc.
4. Chemical industry: Grease, solvent, resin, paint, pigment, oil, etc.
5. Other industries: Construction industry, plastic industry, textile industry, coal flotation agent, etc.
Feature:
1. There is a certain clearance between the rotor and the rotor, no friction coefficient, so the pump has a long service life.
2. High efficiency and energy saving, smooth transportation, low failure rate, no leakage sealing, low noise.
3. Conveying medium viscosity ≤ 2,000,000cp, can convey slurry with 70% solid content.
4. Equipped with VFD frequency converter, the flow rate can be adjusted arbitrarily, can be used as a common metering pump.
5. If necessary, we can equip the pump with heating jacket.

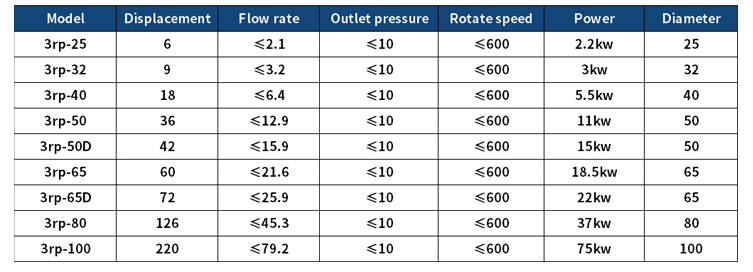

Performance Data:
Model Flow Discharge Pressure
(Mpa)
Rev
(rpm)
Motor Power
(kw)
Inlet/outlet
(mm)
L/100r m3/h
3RP-25 6 ≤1.8 0-1.0 10-400 0.75 25
3RP-32 9 ≤2.7 1.1 32
3RP-40 18 ≤4.3 1.5 40
3RP-50 36 ≤8.6 2.2 50
3RP-65 60 ≤14.4 4 65
3RP-80 105 ≤25.2 11 80
3RP-100A 125 ≤30 15 100
3RP-100 150 ≤36 18.5 100
3RP-125 250 ≤60 22 125
