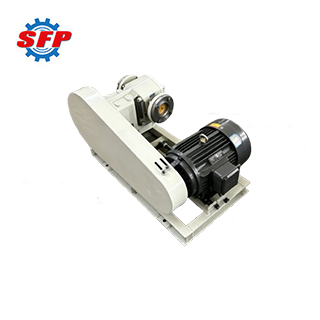

OEM Custom 3RP Series Horizontal Sanitary Rotor Lobe Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

3RP series lobe transfer pump belongs to a positive displacement pump, which has the advantages of strong self-priming ability, high efficiency, compact structure, corrosion resistance and so on. It is suitable for conveying suspensions containing solid particles as well as corrosive and hygienic media, and can be used in chemical, beverage, daily chemical, pharmaceutical, food and beverage industries. Moreover, we use corrosion-resistant stainless steel materials and advanced internal structure, so we can ensure the sanitary type of medium and the stability of transportation.

Product Details:

3RP series high viscosity lobe pumps are mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, driving the rotor to transport media. Adopted is the gear drive method, the main shaft and auxiliary shaft drive the rotor synchronous reverse rotation, so that the pump volume changes, thus forming a higher vacuum and discharge pressure, so especially suitable for sanitary media and highly corrosive high viscosity media. Moreover, the pump adopts high-strength cast iron gearbox, helical gears and heavy-duty bearings to ensure the long-term operation of the pump.

Application:

1. Medicine, daily chemical: All kinds of viscous pulp, all kinds of ointment cosmetics. For example, extracts, emulsions, creams and lotions, hairspray, hair dyes, essential oils.
2. Petroleum industry: Transportation of crude oil, crude oil and water mixtures, coal field gas and water mixtures, to the formation of polymer injection.
3. Food canning industry: All kinds of viscous starch, thick wine lees, grain product residue, all kinds of sauces, slurries, solids slurry.
4. Marine industry: Underwater cleaning, oil and water, oil sludge, oil sewage and other media transportation.
5. Chemical industry: Various suspensions, grease, various colloidal slurries, various adhesives.
6. Mining industry: Solid particles in the mine, groundwater, dirty slurry water.
7. Construction industry: Cement mortar, lime slurry, paint, paste spray.

Feature:

1. According to the need, the pump can be equipped with heating jacket.
2. Inlet and outlet connection: flange connection, threaded connection, quick connection.
3. With features of energy efficient, smooth conveying, low failure rate, no leakage sealing, low noise.
4. This machine can convey medium with viscosity ≤ 2,000,000cp, and can convey slurry with 70% solid content.
5. There is a certain clearance between the rotor and the rotor, no friction coefficient, so the pump has a long service life.

Performance Data:

Model	Flow		Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/Outlet (mm)
Model	L/100r	m3/h	Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/Outlet (mm)
3RP-25	6	≤1.8	0-1.0	10-400	0.75	25
3RP-32	9	≤2.7			1.1	32
3RP-40	18	≤4.3			1.5	40
3RP-50	36	≤8.6			2.2	50
3RP-65	60	≤14.4			4	65
3RP-80	105	≤25.2			11	80
3RP-100A	125	≤30			15	100
3RP-100	150	≤36			18.5	100
3RP-125	250	≤60			22	125
