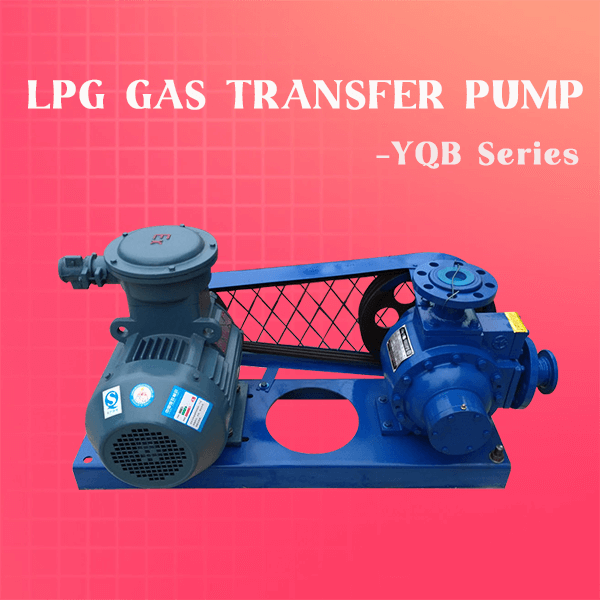

LPG gas pump machine can handle liquefied petroleum gas, methyl chloride, propane, and ethylene oxide, and is suitable for drainage and irrigation or transporting all kinds of volatile liquids and petroleum products of a similar nature. This machine can be used in liquefied petroleum loading and unloading trucks, feeding workshops, cylinder filling, etc. It can also be widely used in gas, petroleum, chemical, pharmaceutical, metallurgy and other fields. Moreover, this machine adopts advanced structural design and high-quality sealing materials to ensure the safety and reliability of the pump when conveying flammable and explosive media such as liquefied petroleum gas.
Product Details:
LPG gas pump machine is a volumetric vane pump with advanced structure, stator surface is composed of composite curve, both ends are mechanically sealed, and each fixed end face adopts “O” type sealing ring. When the rotor rotates, the volume of the oil inlet cavity gradually increases, forming a negative pressure and generating suction, so that the oil is sucked in. When the rotor rotates at a certain angle, the volume gradually decreases, thus discharging the oil. In addition, the rotary motion of the matching parts are metal relative to non-metal, with the use of safe and reliable, multi-purpose function.
Application:
1. LPG gas pump machine can be filled from cylinder to cylinder using a filling gun and hose.
2. This machine can be used to transfer LPG pump, usually work with pipeline connection.
3. It is suitable for LPG car refueling station, cylinder filling of LPG for large and medium-sized users, loading and unloading of LPG tanker trucks, back-filling of LPG and other media transportation.
Feature:
1. High efficiency and energy saving: This pump has high efficiency and low energy consumption, which can effectively reduce the operating cost.
2. Safe and reliable: The pump adopts advanced structural design and high-quality sealing materials to ensure the safety and reliability of the pump when conveying flammable and explosive media such as liquefied petroleum gas.
3. Wide application: It can convey many kinds of volatile liquids and petroleum products with similar properties, and has strong versatility and adaptability.
4. Simple operation: Withe the simple structure, convenient operation, easy maintenance and repair, reducing the maintenance workload and downtime.
Performance Data:
| Model |
Speed
(r.p.m) |
Flow
(m3/h) |
Pressure Difference
(MPa) |
Working Pressure
(MPa) |
Power
(kW) |
Inlet Size
(inch) |
Outlet Size
(inch) |
Temperature Range
(℃) |
| YQB2-5 |
600 |
2 |
0.5 |
1.6 |
1.5 |
1 |
1 |
+40
-40 |
| YQB5-5 |
780 |
5 |
2.2 |
1.2 |
1.2 |
| YQB10-5 |
600 |
10 |
0.5 |
1.6 |
5.5 |
2 |
2 |
+40
-40 |
| YQB15-5 |
780 |
15 |
| YQB15-5A |
780 |
15 |
0.4 |
1.6 |
4 |
2 |
2 |
+40
-40 |
| YQB10-5A |
600 |
10 |
| YQB25-5 |
600 |
25 |
0.5 |
1.6 |
11 |
3 |
3 |
+40
-40 |
| YQB35-5 |
780 |
35 |
| YQB50-5 |
600 |
50 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB60-5 |
780 |
60 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB80-5 |
780 |
80 |
0.5 |
1.6 |
18.5 |
4 |
4 |
+40
-40 |
