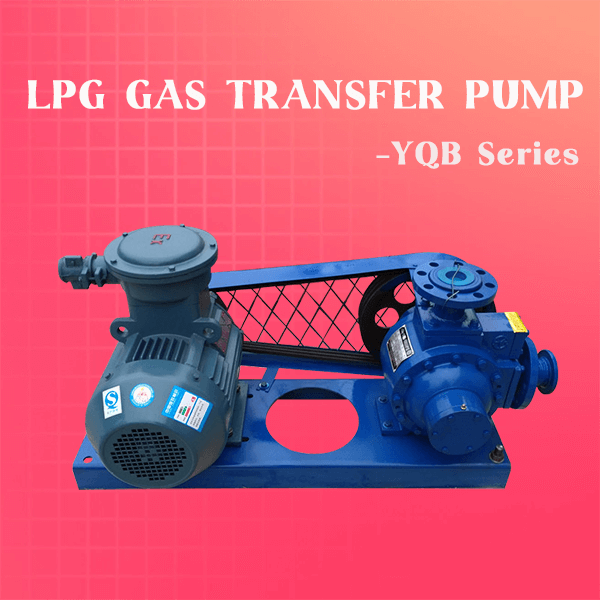

Lpg liquid transfer pump is commonly used to convey liquefied petroleum gas, propylene, liquid ammonia, ethylene oxide, methanol, various volatile liquids or petroleum products of a similar nature. You can use this machine in cylinder filling, LPG loading and unloading trucks, refilling workshops and other workplaces. In order to ensure the safety and reliability of the pump in conveying flammable and explosive media such as liquefied petroleum gas, the equipment adopts advanced structural design and high-quality sealing materials.
Product Details:
Lpg liquid transfer machine is a volumetric vane pump with advanced structure, the stator surface consists of composite curves, both ends are mechanically sealed, and “O” sealing rings are used on each fixed end face. When the rotor rotates, the volume of the inlet chamber gradually increases, forming negative pressure and generating suction, thus sucking in the medium. When the rotor rotates to a certain angle, the volume gradually decreases, thus discharging the medium.
Application:
1. Liquefied Petroleum Gas: This pump can be used for conveying liquefied petroleum gas, including propane, propylene, butadiene, isobutylene, etc. It is suitable for loading and unloading of liquefied petroleum gas into and out of trucks, filling of cylinders, and supplying of materials to the workshop and other workplaces.
2. Volatile Liquid: This pump can also be used for conveying dimethyl ether, chloromethane, ethylene oxide, methanol and other volatile liquids and petroleum products with similar properties.
3. Gas Conveying: Lpg gas ump can be used for gas conveying, especially in the gas system that needs to convey liquefied petroleum gas or other volatile liquids.
Feature:
1. Lpg gas transfer pump adopts explosion-proof motor with high safety performance.
2. Adopting belt type transmission, easy to maintain and repair.
3. The internal rotating moving parts of this product adopt metal and non-metal cooperation to avoid static electricity.
4. The motor can be fine-tuned to reduce vibration and run smoothly.
Performance Data:
| Model |
Speed
(r.p.m) |
Flow
(m3/h) |
Pressure Difference
(MPa) |
Working Pressure
(MPa) |
Power
(kW) |
Inlet Size
(inch) |
Outlet Size
(inch) |
Temperature Range
(℃) |
| YQB2-5 |
600 |
2 |
0.5 |
1.6 |
1.5 |
1 |
1 |
+40
-40 |
| YQB5-5 |
780 |
5 |
2.2 |
1.2 |
1.2 |
| YQB10-5 |
600 |
10 |
0.5 |
1.6 |
5.5 |
2 |
2 |
+40
-40 |
| YQB15-5 |
780 |
15 |
| YQB15-5A |
780 |
15 |
0.4 |
1.6 |
4 |
2 |
2 |
+40
-40 |
| YQB10-5A |
600 |
10 |
| YQB25-5 |
600 |
25 |
0.5 |
1.6 |
11 |
3 |
3 |
+40
-40 |
| YQB35-5 |
780 |
35 |
| YQB50-5 |
600 |
50 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB60-5 |
780 |
60 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB80-5 |
780 |
80 |
0.5 |
1.6 |
18.5 |
4 |
4 |
+40
-40 |
