ZYB Series Gear Pump for Waste Oil
ZYB Series Gear Pump for Waste Oil
ZYB Series External Gear Oil Pump
ZYB series external gear pump is capable for conveying media with a temperature not higher than 200 ℃ and a viscosity not greater than 150 mm2/S containing non-metallic impurities. This machine is commonly used to handle diesel oil, heavy oil, grain, coal oil in the chemical, daily chemical, petroleum and construction industries. It has the characteristics of high efficiency, wear resistance, smooth operation and wide range of uses.
Power: 3.0-22KW
Outlet Size: 25-100mm
Pressure: 0.4-4.0 MPa
Product Description
Summarize:

ZYB series external gear oil pump is designed with self-sealing lubrication and an automatic gap adjustment structure, featuring good self-priming performance, a compact structure, stable operation, strong adaptability, and convenient maintenance. This machine is used to convey chemical, daily chemical, construction, grain and oil industries. In addition, its working life is more than 10 times that of ordinary gear pumps when the liquid is contaminated.

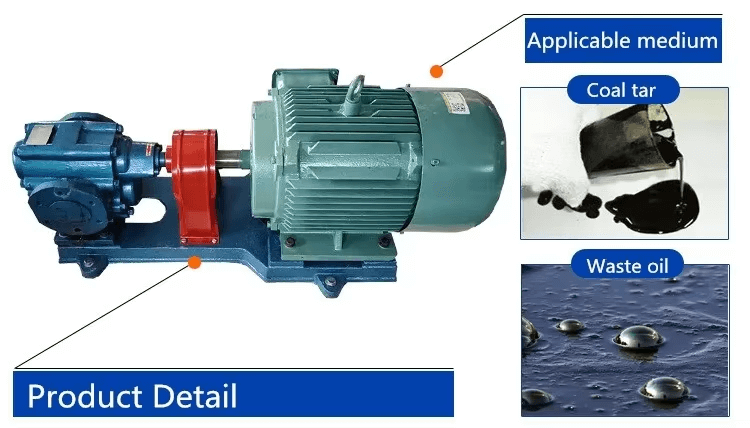

Product Details:

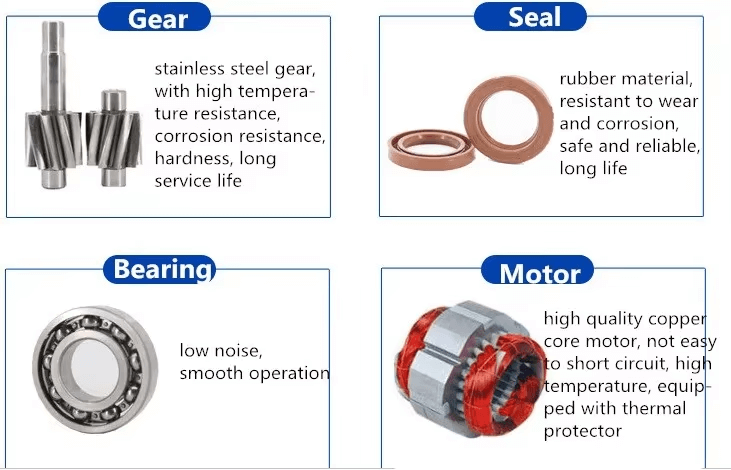

The main parts of this product are made of better quality and wear-resistant materials, mainly composed of pump body, pump cover, gears, shafts, bearings, seals, etc. This product adopts a number of original hydraulic balance technologies in structure, which makes the pump have unique performances such as low noise, stable pressure and long pressure holding time when working at high pressure.

Application:

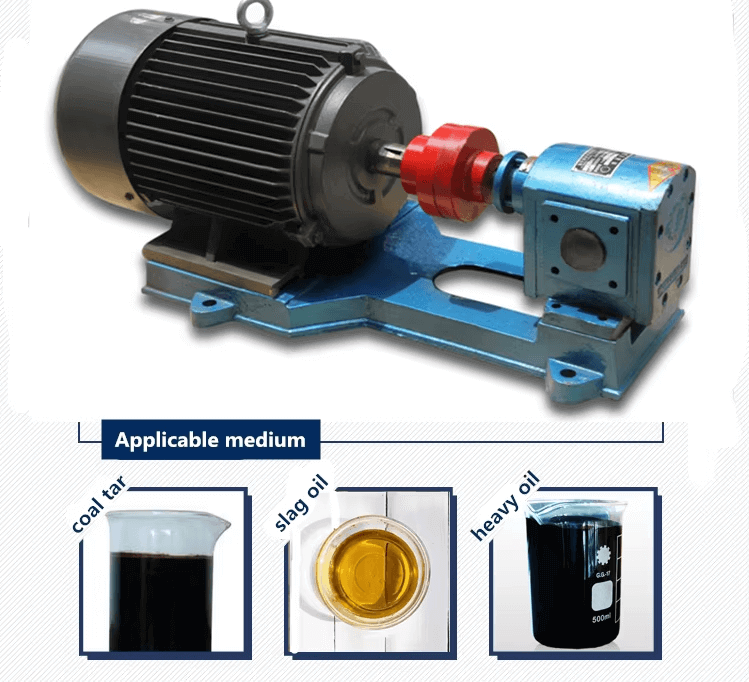

ZYB series gear oil pump is suitable for conveying heavy oil, diesel oil, coal tar and impurities containing non-metallic impurities with temperature not higher than 200 ℃ and viscosity not greater than 150 mm 2 /S, such as food, petroleum, chemical, building materials and daily-use chemical products. For example: powerful lubrication system, fuel delivery and injection in fuel combustion system. It should be noted that it is not suitable for conveying corrosive, metal-containing impurities, sand and gravel impurities with a particle diameter of more than 3 mm and highly volatile impurities.
Advantage:
1. With good self-priming performance, this machine can suck in liquid automatically to a certain extent without additional auxiliary devices.
2. The internal parts are optimized design, which makes the gears bear small torque force in the work, small bearing load and small wear, thus improving the efficiency of the pump.
3. It is especially suitable for the requirement of stable working pressure, long-term continuous work occasions, such as strong lubrication system, fuel burning system in the fuel delivery and injection.
4. This machine adopts self-sealing lubrication and gap automatic adjustment structure, reasonable design, shape and installation dimensions are the same as KCB series gear pumps, with interchangeability.
Performance Data:
Type Inlet and Outlet Flow Pressure Speed Suction Height Power
mm m3/h L/min MPa r/min m kw
ZYB4/0.6 25 4 66 0.6 960 5 1.5
ZYB7/0.6 40 7 116 0.6 960 5 3
ZYB13/0.6 50 13 216 0.6 960 5 4
ZYB13/1.0 50 13 216 1.0 960 5 5.5
ZYB18/0.6 70 18 300 0.6 960 5 7.5
ZYB18/1.0 70 18 300 1.0 960 5 11
ZYB30/0.6 80 30 500 0.6 960 5 7.5
ZYB38/0.4 100 38 633 0.4 960 5 15
ZYB45/0.6 100 45 750 0.4 960 5 18.5
ZYB60/0.6 100 60 1000 0.4 960 5 22
