LCB series high viscosity oil transfer pump is designed for conveying non-corrosive, non-solid particles and solidified media at room temperature, and are also particularly suitable for outdoor installation in alpine areas and occasions where the process media need to be insulated. The equipment can also be used in oil refineries, linoleum plants, asphalt plants, unloading stations, road construction and other fields due to its compact structure, excellent performance, reliable operation, easy installation and so on.
Product Details:

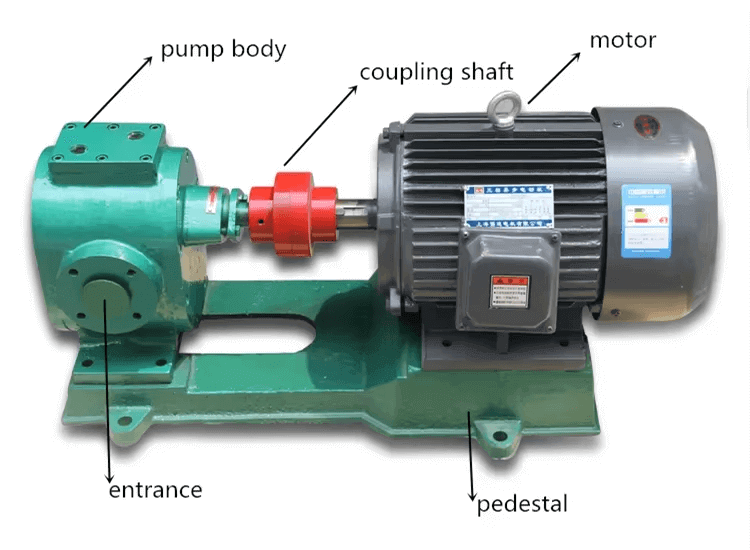

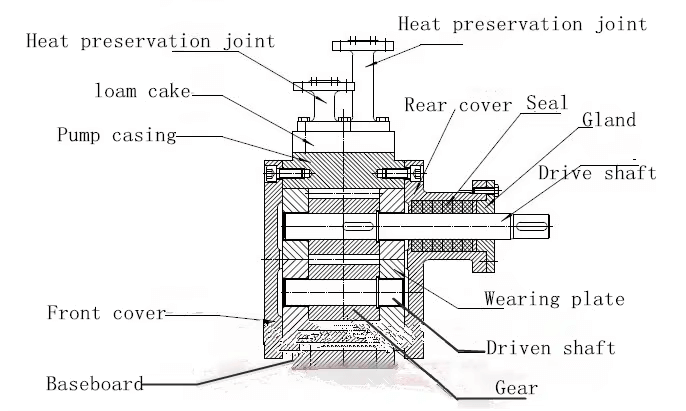

The overflow parts of this machine are equipped with hollow jackets, which can heat and cool the conveyed liquid and pump by means of heat-conducting oil, steam and hot water. When the conveyed viscosity is large, the speed of the pump can be reduced by using a speed reducer, speed-regulating motor or pulley drive. The machine is made of cast steel, the service life is 5 times than cast iron, the material is class II Q235, it is suitable for conveying heavy oil/asphalt without corrosion and solid particles under 350℃.
.png)
Application:
LCB series high viscosity oil transfer pumps convey non-corrosive, non-solid particles and solidifiable media at room temperature. Especially suitable for outdoor installation in cold areas and process media that need insulation, the media temperature up to 300 ℃, viscosity of 5 ~ 1500 cst. The pump is suitable for room temperature curing, outdoor installation in cold areas, and process media that require insulation. It can be used in conjunction with thermal oil, steam, hot water, and cold water, as well as other media that need to be transported as a liquid and pumped for heating, conveying, and cooling.
Feature:
1. It is capable of conveying various corrosive and non-corrosive liquids in many industries and fields.
2. The pump has good fluid conveying ability and can efficiently convey various liquid media to meet the needs of different users.
3. LCB centrifugal pump adopts compact design, which makes it occupy little space during installation and use, and is easy to be installed and arranged in various places.
4. The use of high-quality materials and advanced manufacturing process ensures the reliability and stability of the pump and reduces the frequency of maintenance and replacement.
Performance Data:
| Model |
Rated Flow Rate |
Working Pressure MPA |
Vacuum Suction Height (mm) |
Diameter
(mm) |
Motor Power |
| L/min |
m3/h |
LCB1/0.36
LCB1/0.6 |
16.6 |
1 |
0.36
0.6 |
3 |
25 |
1.5
1.5 |
LCB2/0.36
LCB2/0.6 |
33.3 |
2 |
0.36
0.6 |
3 |
25 |
1.5
2.2 |
LCB3/0.36
LCB3/0.6 |
50 |
3 |
0.36
0.6 |
3 |
25 |
1.5
2.2 |
LCB4/0.6
LCB4/1.0 |
66.4 |
4 |
0.6
1.0 |
5 |
30 |
1.5
2.2 |
LCB5/0.36
LCB5/0.6 |
83.3 |
5 |
0.36
0.6 |
5 |
40 |
2.2
4.0 |
LCB6/0.36
LCB6/0.6 |
100 |
6 |
0.36
0.6 |
5 |
40 |
3.0
4.0 |
LCB7/0.6
LCB7/1.0 |
116 |
7 |
0.6
1.0 |
5 |
50 |
3.0
4.0 |
LCB10/0.6
LCB10/1.0 |
167 |
10 |
0.6
1.0 |
5 |
50 |
4.0
5.5 |
LCB12/0.36
LCB12/0.6 |
200 |
12 |
0.36
0.6 |
5 |
55 |
4.0
5.5 |
LCB18/0.36
LCB18/0.6 |
300 |
18 |
0.36
0.6 |
5 |
70 |
5.5
7.5 |
| LCB25/0. 6 |
416 |
25 |
0.6 |
5 |
100 |
7.5 |
LCB29/0.36
LCB29/0.6 |
483.3 |
29 |
0.36
0.6 |
5 |
70 |
7.5
11.0 |
LCB38/0.36
LCB38/0.6 |
633 |
38 |
0.36
0.6 |
5 |
100 |
11.0
15.0 |
LCB58/0.36
LCB58/0.6 |
960 |
58 |
0.36
0.6 |
5 |
|
18.5
22 |
