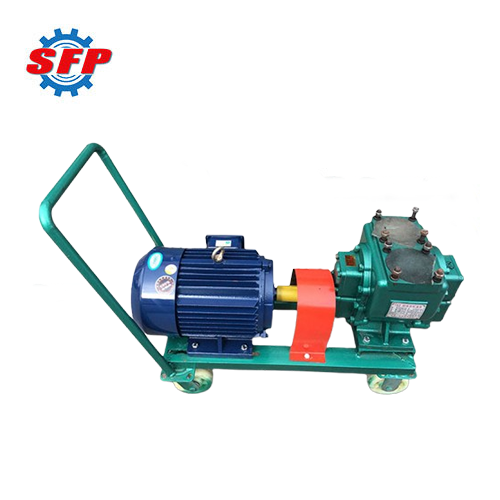

YHCB Series Fuel Oil Transfer Pump
YHCB Series Fuel Oil Transfer Pump
YHCB Series Oil Gear Pump
YHCB series oil gear pump is often used to deliver non-corrosive liquids with viscosity of 5~1500cSt, temperature not exceeding 80℃, and without solid particles, including gasoline, kerosene, diesel and fuel. It is the ideal supporting equipment for the petroleum industry, environmental protection and firefighting, engineering machinery, metallurgy and ceramics, mining and smelting, automobile modification and other industries. This has the advantages of large flow, small volume, low noise, strong self-absorption performance, easy installation and maintenance.
Flow Rate: 8-200m3/h
Head Lift: 0.4-0.6Mpa
Viscosity: ≤1500mm2/s
Product Description
Summarize:

YHCB series oil gear pump belongs to a kind of volumetric pump, which is applicable for handling viscosity in 5-1500cst, temperature does not exceed 80 ℃ and does not contain solid particles of non-corrosive liquids. Moreover, there are cast iron, cast copper, nylon and other materials of which gears can be selected to adapt to the different media transportation needs. This machine can treat gasoline, kerosene, diesel oil, mechanical lubricating oil and other media in the petroleum industry,  firefighting, engineering machinery, environmental protection, ceramics, metallurgy, mining, smelting, automobile modification and other industries.


Product Details:
YHCB series series oil gear pump is a kind of displacement pump, which is composed of two gears, pump body and front and rear covers. When the gears rotate, the teeth of the wheel on the suction chamber side gradually disengage from each other, and the volume between the teeth gradually increases, forming a vacuum or negative pressure area. Under this negative pressure, the liquid is sucked into the pump body and fills the volume between the teeth. As the gears continue to rotate, the inhaled liquid is brought to the discharge chamber side. On the discharge side, the gear teeth gradually mesh and the volume between the teeth gradually decreases, thus compressing and extruding the liquid out of the pump body and into the piping system.



Application:
1. YHCB series series oil gear pumps are special gear pumps for oil transfer in tanker trucks, which are mainly used for conveying non-corrosive liquids with viscosity from 5 to 1500 cSt, temperature not exceeding 80℃, and without solid particles, such as gasoline, kerosene, diesel oil, mechanical lubricating oil, liquefied petroleum gas (LPG), diamine acetate, amine acetate, methyl amine acetate, and so on.
2. The main parts of this pump made of different materials can also be selected according to the needs of users to convey various chemical media such as acid, alkali, benzene, toluene, xylene, alcohol, alkene, ester, ketone and so on with appropriate concentration.

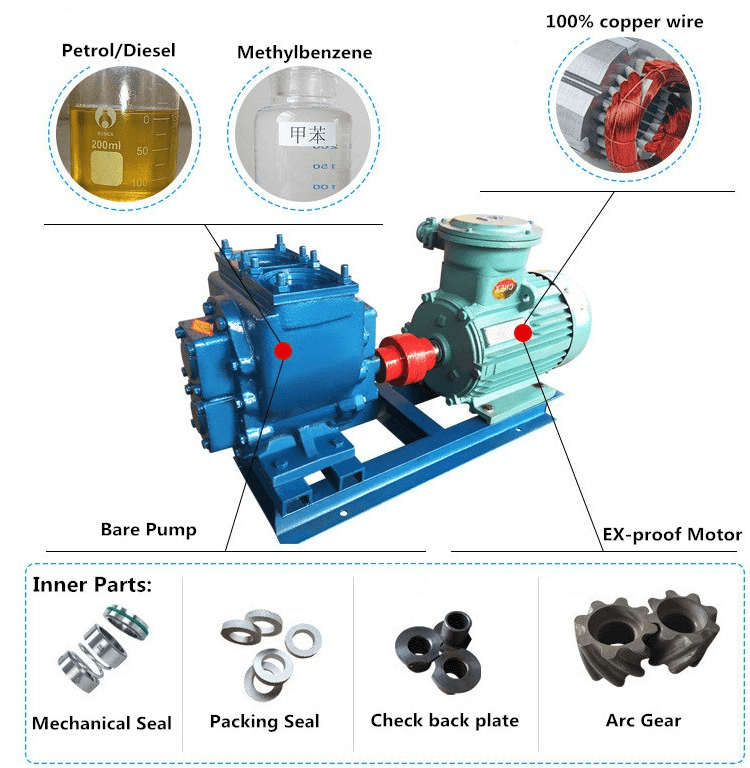

YHCB Diesel Transfer Acid Chemical Pump
Feature:
1. High efficiency and energy saving: Adopting double arc wheel structure, applying new technology and new process of advanced gear tooth shape, the performance is significantly improved than the traditional arc gear pump.
2. Wide application: It is suitable for conveying various liquids without solid particles and corrosive, such as gasoline, kerosene, diesel oil, mechanical lubricating oil, etc..
3. Diversified materials: Cast iron, cast copper, nylon and other materials of the gear can be selected to adapt to the needs of different media transportation. Such as cast iron for general oil, cast copper for low flash point liquid, nylon for flammable and explosive non-corrosive clear oil medium.

Performance Data:
Model Capacity(m3/h) Pressure
(Mpa)
Speed
(r/min)
Efficiency
(%)
Npshr
(m)
Motor
Type Power(kw)
50YHCB-15 15 0.6 960 70 5 YB132S-6 3
50YHCB-20 20 0.2 1100 70 5 YB132S-6 3
65YHCB-30B 30 0.4 970 70 5 YB132M2-6 5.5
65YHCB-35 35 0.6 1440 70 5 YB132M-4 7.5
65YHCB-35A 35 0.6 960 70 5 YB160M-6 7.5
76YHCB-40 40 0.6 1440 70 5 YB132M-4 7.5
76YHCB-40A 40 0.6 970 70 5 YB160M-6 7.5
76YHCB-40B 40 0.4 970 70 5 YB160M-6 7.5
76YHCB-50 50 0.6 970 70 5 YB160L-6 11
80YHCB-60 60 0.6 970 70 5 YB160L-6 11
80YHCB-60A 60 0.6 970 70 5 YB160L-6 11
80YHCB-60B 60 0.4 970 70 5 YB160L-6 11
80YHCB-80 80 0.6 970 70 5 YB160L-5 15
100YHCB-100 100 0.4 970 70 5 YB200L1-6 18.5
150YHCB-150 150 0.4 980 70 5 YB225M-4 30
200YHCB-200 200 0.4 740 70 5 YB280M-6 45
