KCB series cast iron gear pump can be used to handle crude oil, diesel oil, lubricating oil, animal and vegetable oils and other high viscosity media similar to oil at temperatures below 300°C. The pumps can be used to handle a wide range of oils and oil-like high viscosity media. Due to its long-term stable performance and high efficiency delivery, it can gradually become an ideal choice for medium transportation in various industrial applications. In order to effectively reduce the energy consumption in the conveying process, the product adopts advanced gear design and precise manufacturing process.
Product Details:

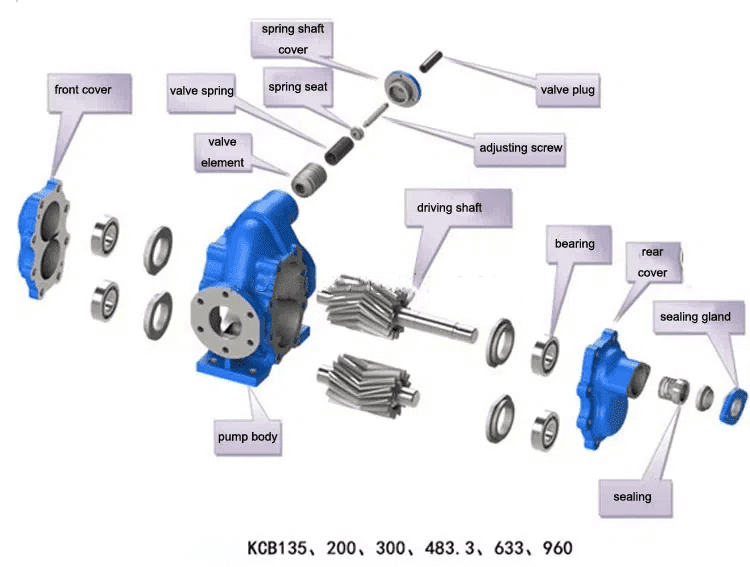

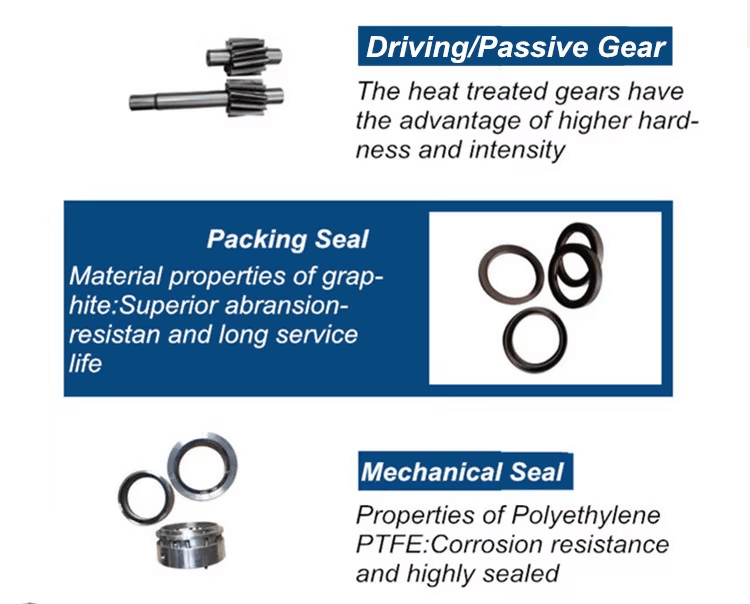

KCB series horizontal gear pumps mainly include gear oil pump gears, shafts, pump bodies, valves and shaft end seals. The gears are heat-treated in a special process, featuring high hardness and high strength, which results in a longer product life. We have designed a reasonable discharge and return groove, the design can make the gear in the work of the torque is minimized, so the bearing load is small, less wear and tear,, high pump efficiency. At the same time, the pump is designed with a safety valve for overload protection, the full return pressure of the safety valve is 1.5 times the rated discharge pressure of the pump.
.png)
.png)
Application:
KCB series gear oil pump is commonly used to deal with non-corrosive, no impurities, viscosity less than 150mm2 / s, temperature below 300 ℃ high viscosity oil-like media. This machine can be applied for pressurization, oil transfer, oil injection and circulation, and are widely used in petroleum, metallurgy, mining and electric power industries.
Feature:
1. This machine has a good self-priming ability, without external force can be self-priming oil, especially suitable for some special working environment.
2. The gears of the product adopt meshing structure and vibration-damping design, low noise during operation, thus providing a quiet working environment.
3. The use of advanced gear design and precision manufacturing process to make the pump more efficient, can effectively reduce the energy consumption in the process of transportation
Performance Data:
| Model |
Capacity Q |
Speed |
Exhaust Pressure P |
Motor Power |
| m³/h |
l/min |
r/min |
Mpa |
Kw |
| KCB-18.3 |
1.1 |
18.3 |
1400 |
1.45 |
1.5 |
| KCB-33.3 |
2 |
33.3 |
1420 |
1.45 |
2.2 |
| KCB-55 |
3.3 |
55 |
1400 |
0.33 |
1.5 |
| KCB-83.3 |
5 |
83.3 |
1420 |
0.33 |
2.2 |
| KCB-135 |
8 |
135 |
940 |
0.33 |
2.2 |
| KCB-200 |
12 |
200 |
1440 |
0.33 |
4 |
| KCB-300 |
18 |
300 |
960 |
0.36 |
5.5 |
| KCB-483.3 |
29 |
483.3 |
1440 |
0.36 |
7.5 |
| KCB-633 |
38 |
633 |
970 |
0.28 |
11 |
| KCB-960 |
58 |
960 |
1470 |
0.28 |
11 |
| KCB-1200 |
72 |
1200 |
740 |
0.6 |
37 |
| KCB-1600 |
96 |
1600 |
980 |
45 |
| KCB-1800 |
110 |
1800 |
740 |
0.6 |
55 |
| KCB-2500 |
150 |
2500 |
985 |
75 |
| KCB-2850 |
170 |
2850 |
740 |
0.6 |
90 |
| KCB-3800 |
230 |
3800 |
989 |
110 |
| KCB-4100 |
245 |
4100 |
743 |
0.6 |
132 |
| KCB-5400 |
325 |
5400 |
989 |
160 |
| KCB-5600 |
330 |
5600 |
744 |
0.6 |
160 |
| KCB-7600 |
460 |
7600 |
989 |
200 |
| KCB-7000 |
420 |
7000 |
744 |
0.6 |
185 |
| KCB-9600 |
570 |
9600 |
989 |
250 |
| KCB-13000 |
800 |
13000 |
490 |
0.6 |
315 |
