Summarize:
.jpg)
Automatic coffee powder filling machines is able to automatically complete the whole process of measuring, bag making, filling and sealing for powdery materials. This product has a reasonable setup, friendly interface, flexible function and high degree of automation, so it becomes an important component equipment in the production line of modern food, pharmaceutical, health care, chemical, daily chemical and other industries.
Product Details:

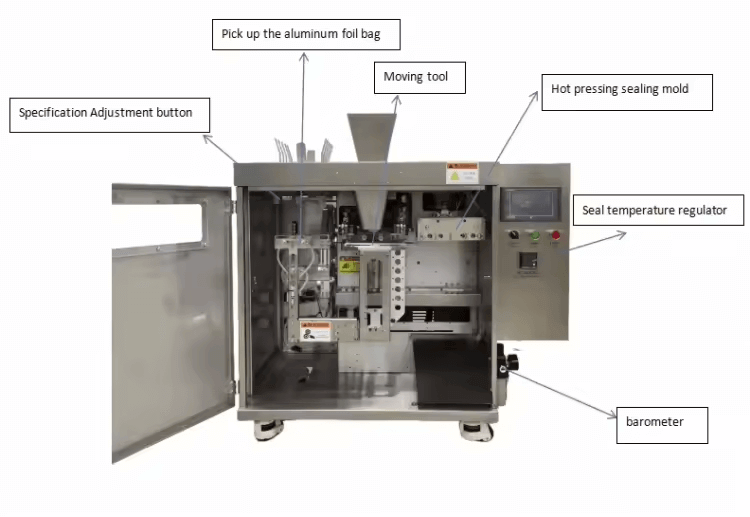

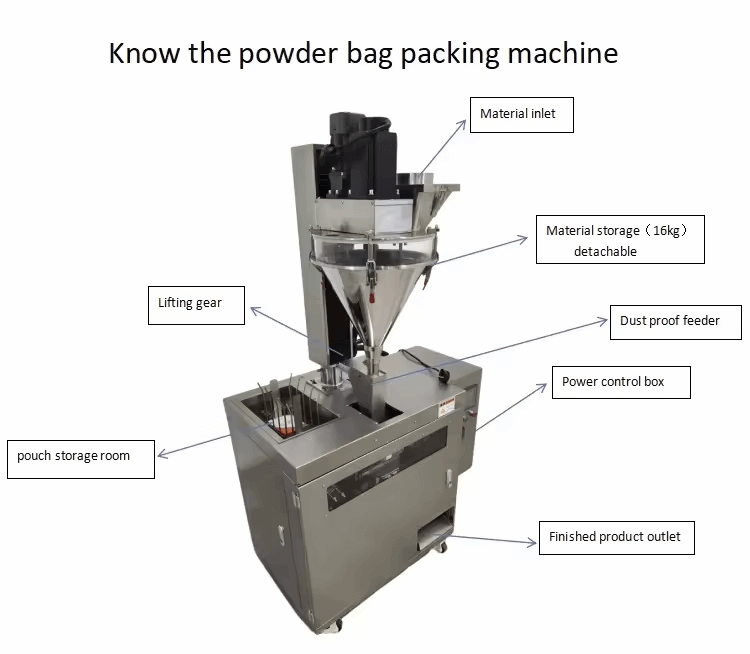

Before using the machine, the powder needs to be fed into the hopper and weighed according to a predetermined weight through the dosing device. The weighed powder is accurately filled into the bag through the filling system. When the filling is completed, the bags are heat-sealed using an electric heating element to ensure a tight seal, and then cut off by a cutting device according to the preset length to form individual packages.
.png)
.png)
Application:
1. Cosmetic Industry: Producing talcum powder, mask powder and other products.
2. Pharmaceutical Industry: Packaging Chinese medicine powder, tablet powder, health care powder.
3. Food Industry: Coffee powder, milk powder, protein powder, soybean powder, food additives, flavorings and so on.
4. Chemical Industry: Packaging of pigments, fertilizers, washing powder, masterbatch powder and other powdered items.
Feature：
1. It has the features of stable performance, easy adjustment, precise detection, touchscreen operation, and PLC control design.
2. This machine can be used in the food, chemical, pharmaceutical, and cosmetic sectors for powder metering and packing.
3. Adopting an intelligent temperature controller will guarantee that the temperature stays within an error range of 1 °C.
4. It is suitable for different bag specifications, and working with stand-up pouches, zip bags, and other bag forms.
Performance Data:
| Type |
Multifunction Powder Packaging Machine |
| Production Capacity |
20bag/min, 15bag/min, 10bag/min |
| Applicable Industries |
Manufacturing Plant, Food & Beverage Factory, Farms |
| Weight (KG) |
280 |
| Function |
FIilling, Wrapping, Sealing, counting |
| Application |
Food, Beverage, Chemical |
| Packaging Type |
Stand-up Pouch, Bags, Foil, Pouch |
| Packaging Material |
Wooden Crate |
| Driven Type |
Pneumatic |
| Voltage |
110V/220V |
| Dimension(L*W*H) |
980*650*1750mm |
| Core Components |
Motor, Pump, PLC |
| Weighing Range |
5-500g |
| Packing Speed |
18-20bags/min |
| Weight Error |
±0.2g |
