Product Description

Summarize:

Vertical powder filling machine is an automated machine specially designed to accurately meter and fill powdered products into packaging containers. It is widely used in many industries such as pharmaceutical, food, chemical, cosmetic, etc. to meet the packaging needs of different products. And using powder filling machine can automatically complete a series of processes such as bag making, metering, filling and sealing, which greatly reduces the need for manual operation, reduces labour costs, and also improves production efficiency.

Product Details:

The powder needs to be fed into the hopper and weighed to a predetermined weight by a dosing device before the machine is used. The weighed powder is accurately filled into the bags through a filling system. After filling, the bags are heat-sealed using an electric heating element to ensure a tight seal, and then cut to a pre-determined length by a cutting device to form individual packages.

Application:

1. Food Industry: Filling of milk powder, coffee powder, seasoning, etc.
2. Cosmetic Industry: Filling of mask powder, talcum powder and other products.
3. Pharmaceutical Industry: Packaging of tablet powder, Chinese medicine powder.
4. Chemical Industry: Packaging of powder products such as washing powder, fertiliser, dyes, etc.

Feature:

1. Applicable to various specifications of bags, compatible with zip bags, stand-up pouches and other styles of bags.
2. The machine is suitable for powder metering and packaging in food, pharmaceutical, chemical and cosmetic industries.
3. It can realise the filling of powder at the place where the screw head reaches into the mouth of the bag, which effectively prevents dust and improves the running speed of the equipment.
4. Touch screen operation, PLC control, drive stepping motor to control the bag length, stable performance, convenient adjustment, accurate detection. Selection of intelligent temperature controller, to ensure temperature control within 1 ℃ error range.

Performance Data:

Type	Multi-Function Packaging Machine
Production Capacity	20bag/min, 15bag/min, 10bag/min
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms
Weight (KG)	280
Function	FIilling, Wrapping, Sealing, counting
Application	Food, Beverage, Chemical
Packaging Type	Stand-up Pouch, Bags, Foil, Pouch
Packaging Material	Wooden Crate
Driven Type	Pneumatic
Voltage	110V/220V

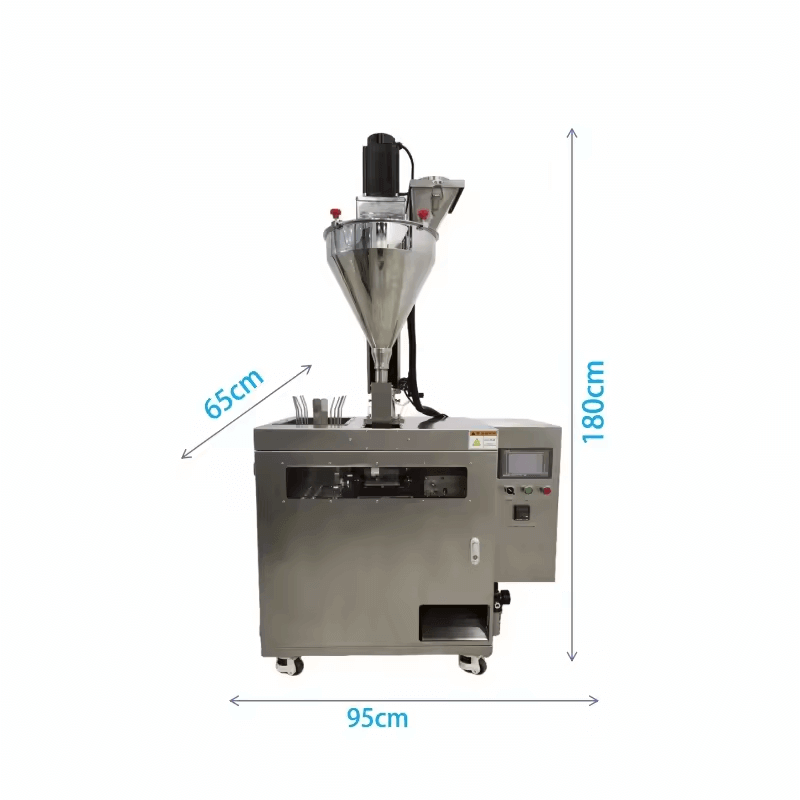

*Dimension(LWH)*	9806501750mm
Core Components	Motor, Pump, PLC
Weighing Range	5-500g
Packing Speed	18-20bags/min
Weight Error	±0.2g
