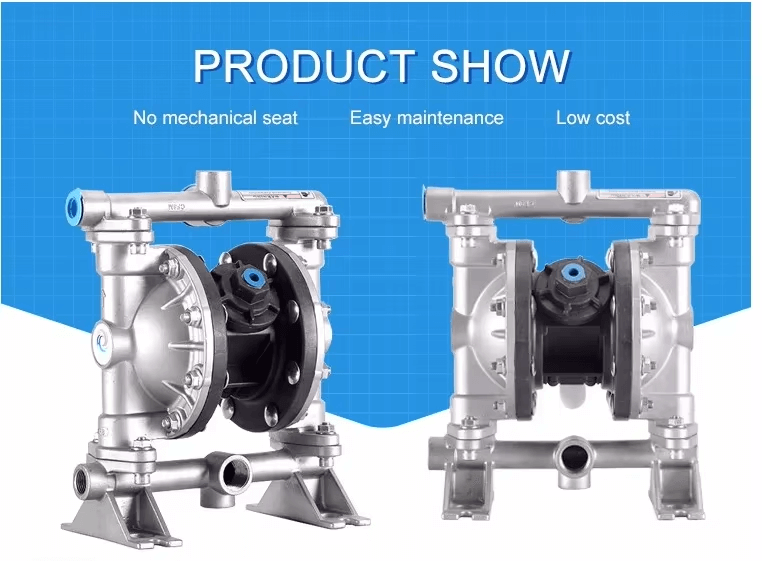

Product Description

Summarize:

QBY series chemical diaphragm pump combines the advantages of self-priming pumps and slurry pumps, and is particularly suitable for the transportation of high and low fluids. Due to its excellent leakage protection performance, the equipment is very suitable for conveying toxic, volatile or corrosive media. The equipment is characterized by simple structure, few wearing parts, easy installation and maintenance, stable operation, etc. It can handle media that cannot be pumped by traditional pumps. At the same time, the pump has no rotating parts, and the diaphragm can completely isolate the pumped medium from the moving parts of the pump and the working medium, so the conveyed medium will not leak outward, thus making it safe and reliable for use in flammable and explosive places.

Product Details:

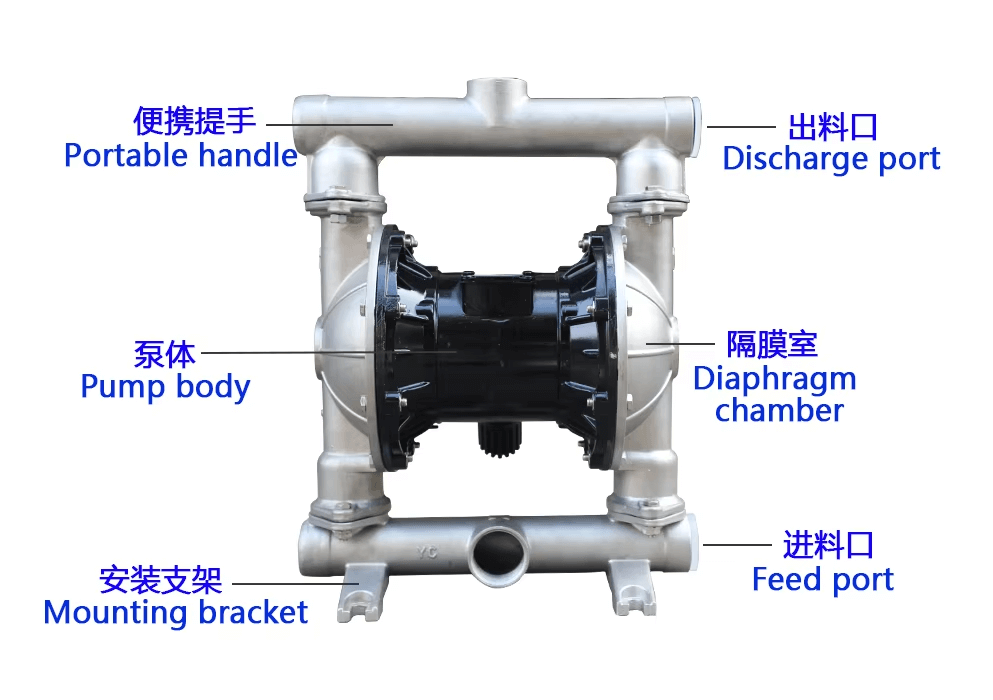

QBY series chemical diaphragm pump through the compressed air as a power source, in the pump's two symmetrical working chamber is equipped with a piece of diaphragm, by the center of the linkage will be linked into one. Compressed air enters into the air distribution valve from the air inlet of the pump, and the compressed air is introduced into one of the chambers through the air distribution mechanism, which pushes the diaphragm in the chamber to move, while the gas in the other chamber is discharged. Once the end of the stroke is reached, the air distribution mechanism automatically introduces compressed air into the other working chamber, pushing the diaphragm to move in the opposite direction, so that the two diaphragms reciprocate continuously and synchronously. There are two one-way ball valves in each working chamber, the reciprocating motion of the diaphragm causes the change of the inner volume of the working chamber, forcing the two one-way ball valves to open and close alternately, so that the liquid is continuously sucked in and discharged.

Application:

1. Chemical Industry: pumping paints, gums, pigments, adhesives and glues.
2. Pharmaceutical Industry: conveying all kinds of emulsions and fillers, etc.
3. Food Industry: pumping peanut butter, pickles, mashed potatoes, small red sausage, jam apple syrup, chocolate, etc.
4. Environmental Protection Industry: pumping all kinds of sewage, cement grout and mortar, etc., can also be used as a variety of solid-liquid separation equipment for the front stage of the pressure delivery device.

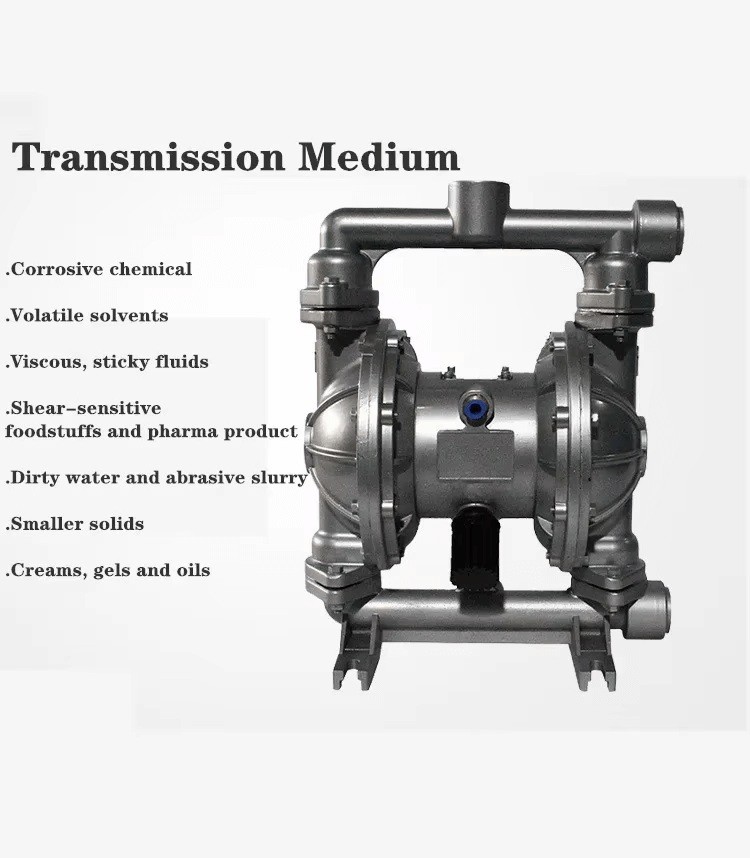

5. Other Industries: conveying all kinds of abrasives, corrosives, cleaning grease, etc., as well as all kinds of highly toxic, flammable, volatile liquids, all kinds of strong acids, alkalis, corrosive liquids and so on.

Feature:

1. Easy to use, reliable, only need to open or close the gas valve when starting or stopping. 2.
2. The head and flow rate can be infinitely adjusted by the opening of the pneumatic valve (the pneumatic pressure adjustment range is 1-7bar).
3. This machine has no rotating parts, no bearing seal, diaphragm will pumping medium and pump running parts, working medium completely separated, the conveying medium will not leak, so in the pumping of toxic, flammable, corrosive media will not cause environmental pollution and personal safety hazards.
4. Without irrigation and water diversion, suction range up to 5 meters high, head up to 50 meters long.
5. Large flow rate, good performance, the maximum diameter of particles allowed to pass through the 10mm, when pumping slurry, impurities on the pump damage is very small.

Performance Data:

Model	Flow (m 3 /h)	Pressure (kgf/cm 2)	Suction (m)	Max Solid Size (mm)	Max Air Consumption (m 3 /min)	Material
Model	Flow (m 3 /h)	Pressure (kgf/cm 2)	Suction (m)	Max Solid Size (mm)	Max Air Consumption (m 3 /min)	Aluminum ally	ss304	Cast iron	FRPP
QBY-10	0~0.8	5	5	1	0.3	Yes	Yes	Yes	Yes
QBY-15	0~1	5	5	1	0.3	Yes	Yes	Yes	Yes
QBY-25	0~2.4	5	7	2.5	0.6	Yes	Yes	Yes	Yes
QBY-40	0~8	5	7	4.5	0.6	Yes	Yes	Yes	Yes
QBY-50	0~12	5	7	8	0.9	Yes	Yes	Yes	/
QBY-65	0~16	5	7	8	0.9	Yes	Yes	Yes	/
QBY-80	0~24	5	7	10	1.5	Yes	Yes	Yes	/
QBY-100	0~30	5	7	10	1.5	Yes	Yes	Yes	/
