DBY Series Diaphragm for Sale
DBY Series Diaphragm for Sale
DBY Electric Diaphragm Pump
DBY series electric diaphragm pump is a new type of pump developed in recent years based on diaphragm material research and development. It is widely used in industries such as petroleum, ceramics, and metallurgy, and is suitable for low-pressure conditions, i.e., applications where the outlet pressure is ≤3k9f/cm². Additionally, this pump can be customized with either rubber or nitrile rubber diaphragms based on actual operating conditions to accommodate different media requirements. It can also replace screw pumps, centrifugal pumps, and other conveying equipment for the transportation of non-corrosive viscous media.
Head Lift: 15-130m
Suction Llift: 6-8m
Rotating Speed: 1450r/min
Product Description
Summarize:

DBY series electric diaphragm pump can transport various highly toxic, flammable, volatile liquids, various strong acids, strong alkalis, highly corrosive liquids, and various viscous slurries, emulsions, ointments, cosmetics and other special media. Due to its wide application, strong medium adaptability, strong self-priming ability and other characteristics, this pump has gradually become an ideal product to replace screw pumps and centrifugal pumps to transport non-corrosive viscous media.

Product Details:

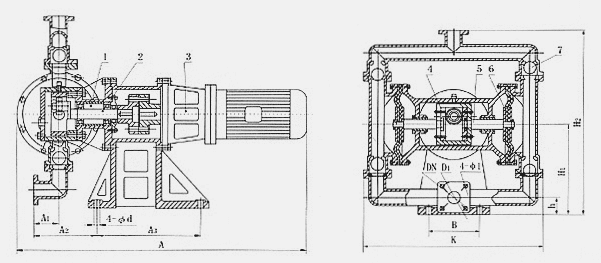

DBY series diaphragm pump adopts a seal-free design. Its diaphragm will completely separate the pumped medium from the transmission mechanical parts of the pump, so that the transported medium will not leak out. The pump itself has no seal, which greatly extends its service life. At the same time, the pump body can be made of cast iron, aluminum alloy, stainless steel 316, stainless steel 316L and other materials, and the diaphragm can also be made of epichlorohydrin rubber, fluororubber, acrylic rubber, fluororubber, nitrile rubber and other materials. Therefore, users can choose the appropriate material combination according to different media.
Application:
1. This machine can transport all kinds of highly toxic, flammable, volatile liquids, strong acids, strong alkalis, highly corrosive liquids, etc.
2. It can pump sauerkraut, jam, mashed potatoes, chocolate, fermented slurry, syrup, molasses, etc. in the food industry.
3. It can transport media such as paint, gum, pigment adhesive, rubber slurry, latex, organic solvents, fillers and so on.
4. The diaphragm pump can also handle viscous materials with solid particles, such as slurry, mortar, and mud.
5. It can handle high-temperature media up to 150 degrees Celsius.
Feature:
2. It allows particles and slurries with a diameter of less than 10mm to pass easily.
2. The internal design of this diaphragm pump will separate the conveying medium from the transmission mechanical parts, so the medium will not leak out.
3. It has strong self-priming ability and does not need to be filled with water. The self-priming capacity can be as high as 7m, which can quickly complete the self-priming task and put into work.
4. The diaphragm of this product is made of various materials, including epichlorohydrin rubber, fluororubber, acrylic rubber and other materials. Users can choose the appropriate material according to different media
Performance Data:

Model

Flow

(m³/h)

Allowable Particle Diameter

(mm)

Use Temperature ℃

Motor Power

(KW)

Cast Iron

Stainless Steel

DBY-10

0.5

1

90

150

0.37

DBY-15

0.75

1

90

150

0.5

DBY-25

3.5

2.5

90

150

1.5

DBY-40

4.5

2.5

90

150

1.5

DBY-50

6.5

3

90

150

2.2

DBY-65

8

4.5

90

150

2.2

DBY-80

16

8

90

150

4

DBY-100

20

8

90

150

4
