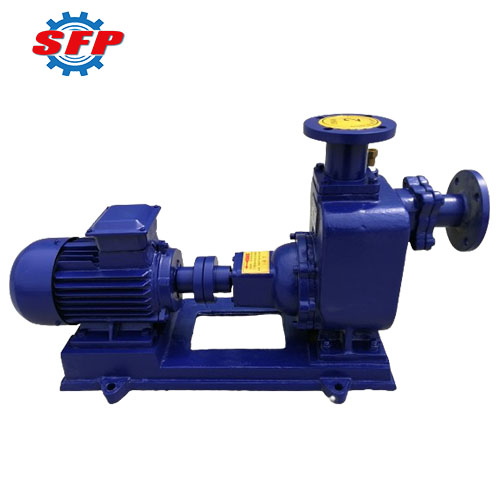

In Stock ZX Series Self-Priming Chemical Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

ZX series chemical centrifugal pump is a kind of self-priming centrifugal pump, which has the advantages of reasonable structure, stable operation, easy to use, strong self-priming ability, long service life and small vibration. There is no need to install a bottom valve in the pipeline of this product, thus simplifying the pipeline system and improving the labor conditions, which is popular in the fields of chemical industry, agriculture, construction, environmental protection and pharmaceuticals.

Product Details:

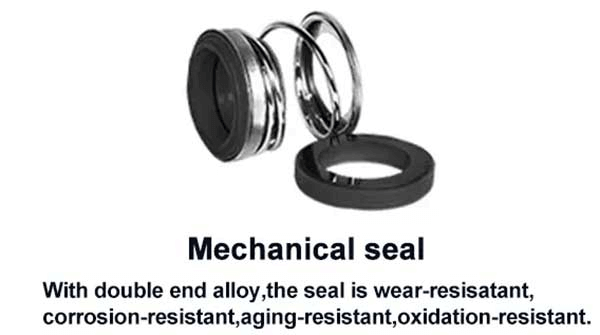

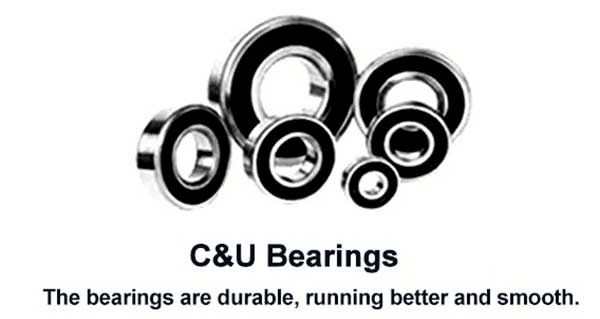

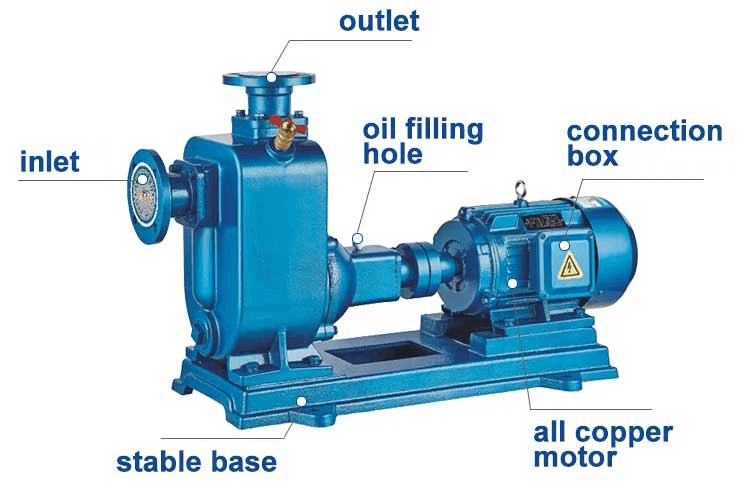

ZX series centrifugal pump adopts single-stage single-suction cantilevered structure, which is mainly composed of pump body, impeller, seal, bearing and coupling. The pump can throw the liquid to the outer edge of the vortex chamber by centrifugal force, and then make the liquid discharged from the outlet of the pump body. The rotation of the impeller converts the mechanical energy of the motor into the kinetic energy and pressure energy of the liquid, thus realizing the transportation of the liquid.

Application:

1. Applicable to urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electricity, electroplating, paper, petroleum, mining, equipment, cooling, oil tanker drainage.
2. It is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity ≤100 PCT, solid content up to 30%).
3. Install the rocker-type nozzle, and then spray the water into the air, and then spray it into small raindrops. It is a good tool for farms, nurseries, orchards and tea gardens.
4. It can be used with any type and specification of filter press, and it is the most ideal pump type for the filter to be sent to the filter for pressure filtration.

Feature:

1. The low-noise design helps to create a more comfortable and less intrusive working environment.
2. It adopts the compact and lightweight design to make installation and maintenance simple and efficient.
3. This machine is made of high quality and durability to provide stable and reliable performance over a long period of time.
4. The use of advanced hydraulic design ensures optimal flow and pressure, thus minimizing energy consumption and operating costs.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	M3/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
