Product Description

Summarize:

IH series chemical resistant centrifugal pump is a single-stage single-suction cantilever type centrifugal pump. Its mark, rated performance point and size adopt the international standard ISO2858-1975(E), which is the energy-saving and updated product of the ministry of machinery industry to replace the F-type corrosion centrifugal pump. It can meet the corrosive viscosity of the chemical process liquid.The temperature of the pump's transport medium is generally ≤80° C. If necessary, appropriate cooling measures, the temperature of the transport medium can be higher.

Product Details:

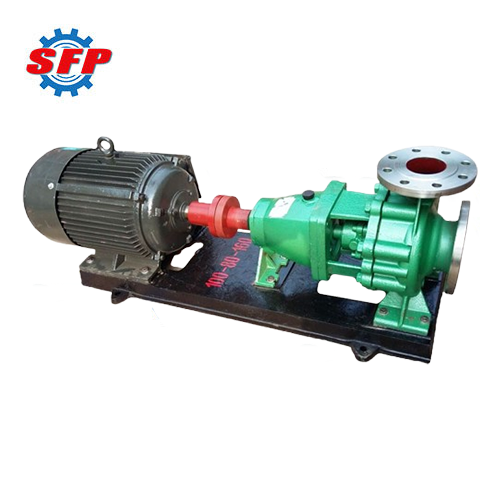

IH series chemical resistant centrifugal pump is mainly composed of vane drive system, sealing nut, pump cover, impeller, intermediate support, seals, suspension parts, shaft and so on. The pump cover is clamped in the middle through the joints on the middle fixed bracket, and then through the connection between the pump body and the middle support, the pump body is axial suction, radial discharge, foot bearing type, which can be directly fixed on the base. Suspension parts are supported on the base with suspension bracket through the joints on the middle fixed bracket. It is easy to disassemble, adopting lengthened coupling, so that the inlet and outlet connecting pipelines, pump body and motor can be maintained without disassembling. It is only necessary to remove the coupling connected in the center to withdraw the rotor parts for maintenance. This is one of the international structures.

Structure:

It is widely used in chemical, petroleum, electric power, metallurgical, paper, pharmaceutical, food industry etc. With a lot of advantages such as corrosion resistance, abrasion resistance, high temperature resistance, high mechanical strength, stable operation, advanced and rational structure, strict and reliable seal performance, convenient dismantling and repair, long service life etc.

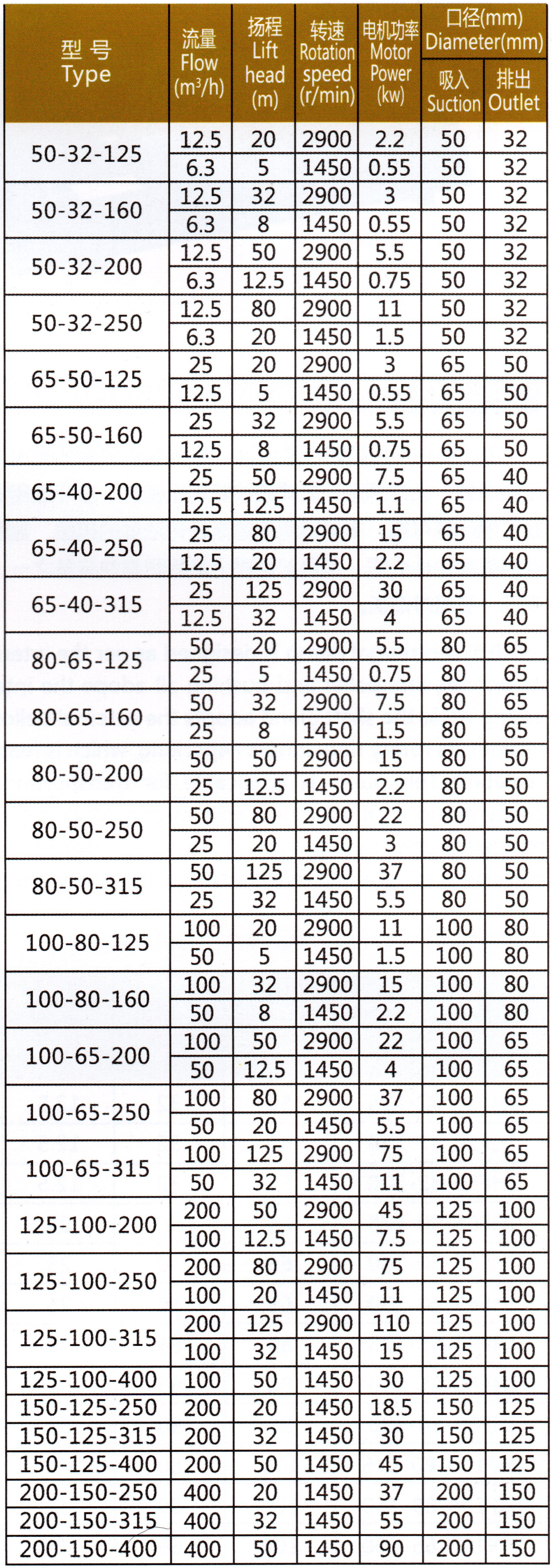

Performance Data:

Model	Speed	Flow (m3/h)	Flow (L/S)	Head (m)	Power
					Medium Density
					1.0	1.35	1.85
IH50-32-125	2900	12.5	3.47	20	2.2	6.0	4.0
IH50-32-125	1450	6.3	1.74	5.0	0.55	0.55	0.55
IH50-32-160	2900	12.5	3.47	32	3.0	4.0	5.5
IH50-32-160	1450	6.3	1.74	8.0	0.55	0.75	1.1
IH50-32-200	2900	12.5	3.47	50	5.5	7.5	11
IH50-32-200	1450	6.3	1.74	12.5	1.1	1.1	1.5
IH50-32-250	2900	12.5	3.47	80	11	15	18.5
IH50-32-250	1450	6.3	1.74	20	2.2	2.2	3.0
IH65-50-125	2900	25	1.53	2.0	3.0	4.0	5.5
IH65-50-125	1450	12.5	6.94	5.0	0.55	0.55	0.75
IH65-50-160	2900	25	2.78	32	5.5	7.5	11
IH65-50-160	1450	12.5	6.94	8.0	0.75	1.1	1.5
IH65-40-200	2900	25	2.92	50	11	11	15
IH65-40-200	1450	12.5	6.94	12.5	1.5	2.2	2.2
IH65-40-250	2900	25	2.92	80	15	3.0	30
IH65-40-250	1450	12.5	6.94	20	2.2	37	4.0
IH65-40-315	2900	25	3.06	125	30	5.5	55
IH65-40-315	1450	12.5	6.94	32.0	5.5	5.5	7.5
IH80-65-125	2900	50	13.9	20	5.5	7.5	11
IH80-65-125	1450	25	6.94	5.0	0.75	1.1	1.5
IH80-65-160	2900	50	13.9	32	11	11	15
IH80-65-160	1450	25	6.94	8.0	1.5	1.5	2.2
IH80-50-200	2900	50	13.9	50	15	18.5	30
IH80-50-200	1450	25	6.94	12.5	1.1	1.5	2.2
IH80-50-250	2900	50	13.9	80	30	37	45
IH80-50-250	1450	25	6.94	20	4.0	5.5	7.5
IH80-50-315	2900	50	13.9	125	45	55	75
IH80-50-315	1450	25	6.94	32	7.5	7.5	11
IH100-80-125	2900	100	27.8	20	11	15	18.5
IH100-80-125	1450	50	13.9	5.0	1.5	2.2	3.0
IH100-80-160	2900	100	27.8	32	15	22	30
IH100-80-160	1450	50	13.9	8.0	2.2	3.0	4.0
IH100-65-200	2900	100	27.8	50	30	37	45
IH100-65-200	1450	50	13.9	12.5	3.0	4.0	5.5
IH100-65-250	2900	100	27.8	80	45	55	75
IH100-65-250	1450	50	13.9	20	5.5	7.5	11
IH100-65-315	2900	100	55.6	125	75	90	132
IH100-65-315	1450	50	27.8	32	11	15	18.5
IH125-100-200	2900	200	55.6	50	45	55	90
IH125-100-200	1450	100	27.8	12.5	7.5	11	15
IH125-100-250	2900	200	55.6	80	11	110	132
IH125-100-250	1450	100	27.8	20	132	15	18.5
IH125-100-315	2900	200	55.6	125	18.5	160	220
IH125-100-315	1450	100	27.8	32	18.5	22	30
IH125-100-400	1450	100	27.8	50	18.5	30	37
IH50-125-250	1450	200	55.6	20	30	30	37
IH50-125-315	1450	200	55.6	32	30	37	55
IH50-125-400	1450	200	55.6	50	55	75	90
IH200-150-250	1450	400	111.1	20	37	55	75
IH200-150-315	1450	400	111	32	55	75	110
IH200-150-400	1450	400	111	50	90	132	160
