ZYB Series Gear Pump for Oil
ZYB Series Gear Pump for Oil

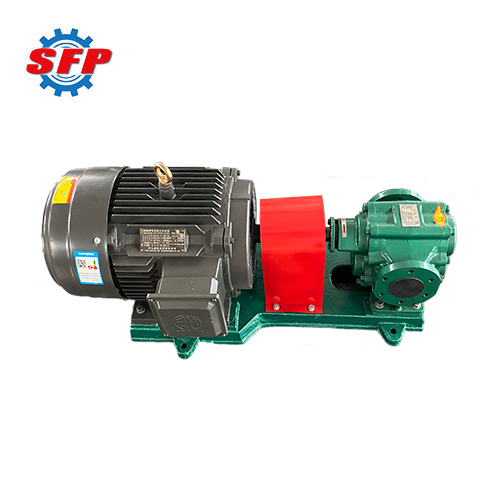

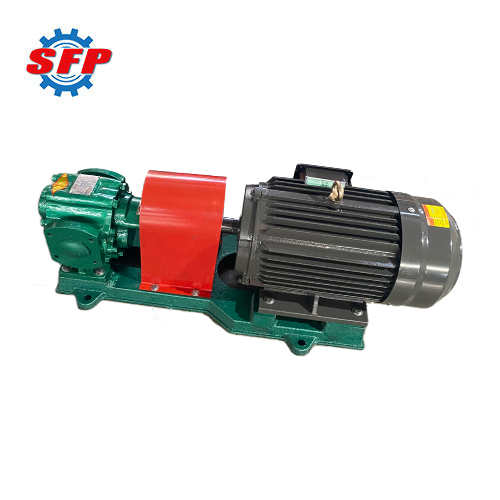

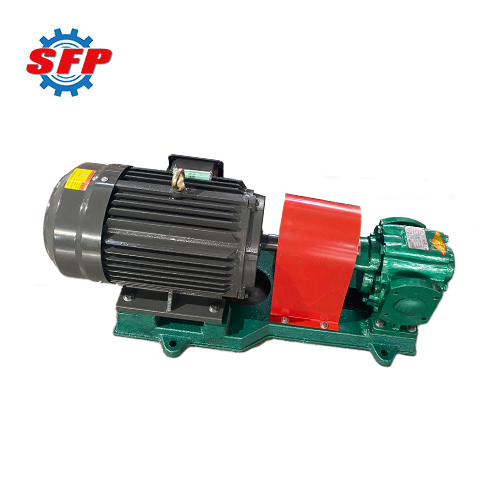

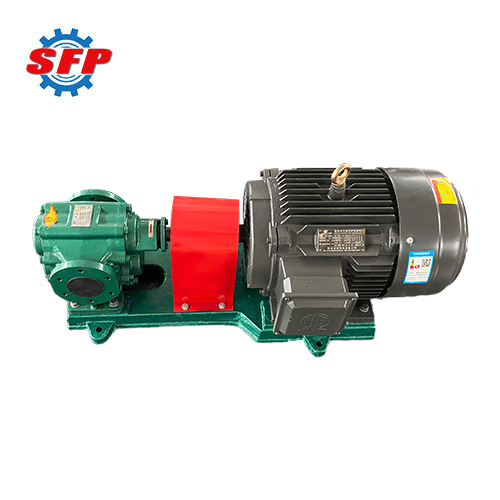

ZYB Gear Fuel Oil Pump
ZYB series fuel oil gear pump is specifically designed for handling media such as diesel fuel, heavy oil, and coal tar with temperatures not exceeding 260°C, viscosities not exceeding 150 mm²/s, and containing non-metallic impurities. Thanks to its adaptability, excellent wear resistance, high efficiency and energy savings, it is widely used in industries including chemical processing, petroleum, mining, marine, and industrial construction.
Flow Rate: 4-60m³/h
Power: 1.5-22Kw
Inlet Outlet Size: 25-100mm
Product Description
Summarize:


ZYB series gear oil  pumps are capable of handling non-metallic impurities such as coal tar, diesel, and heavy oil in fuel oil. They are particularly suitable for fuel injection applications in chemical plants, construction sites, petroleum facilities, and asphalt mixing plants. At the same time, these pumps feature a sealed lubrication design, automatic adjustment structure, and advanced hydraulic balancing technology, enabling them to deliver stable working pressure and maintain operational efficiency over extended periods.

Product Details:
ZYB series horizontal gear pump primarily consists of a pump body, pump cover, gears, shaft seal, and packing gland. Two identical-sized drive gears and driven gears are installed within the pump body. The outer edges of these gears form a sealed working chamber by tightly mating with the pump casing. When the motor drives the drive gear to rotate, the driven gear rotates accordingly. As the gears mesh, the volume between the teeth progressively decreases, forcing the oil to be squeezed and discharged through the outlet.
Application:
ZYB series gear oil pumps are designed to convey heavy oil, diesel, coal tar, and other materials containing non-metallic impurities at temperatures not exceeding 260°C and viscosities not exceeding 150 mm²/s. They are suitable for applications in the food, petroleum, chemical, building materials, and daily chemical industries, as well as for heavy-duty lubrication systems, fuel delivery, and injection systems within fuel combustion systems.
Feature:
1. This pump features excellent self-priming capability, enabling it to automatically draw in liquid to a certain extent without requiring additional auxiliary devices.
2. Its internal components are optimized to minimize torque on the gears during operation, reduce bearing loads, and decrease wear, thereby enhancing pump efficiency.
3. It adopts a self-sealing lubrication system with automatic clearance adjustment, featuring a rational design. Its external dimensions and mounting specifications are identical to the KCB series gear pumps, ensuring interchangeability.
Performance Data:
Type Inlet & Outlet Flow Pressure Speed Suction Height Power
mm m³/h L/min MPa r/min m kw
ZYB4/0.6 25 4 66 0.6 960 5 1.5
ZYB7/0.6 40 7 116 0.6 960 5 3
ZYB13/0.6 50 13 216 0.6 960 5 4
ZYB13/1.0 50 13 216 1.0 960 5 5.5
ZYB18/0.6 70 18 300 0.6 960 5 7.5
ZYB18/1.0 70 18 300 1.0 960 5 11
ZYB30/0.6 80 30 500 0.6 960 5 7.5
ZYB38/0.4 100 38 633 0.4 960 5 15
ZYB45/0.6 100 45 750 0.4 960 5 18.5
ZYB60/0.6 100 60 1000 0.4 960 5 22
