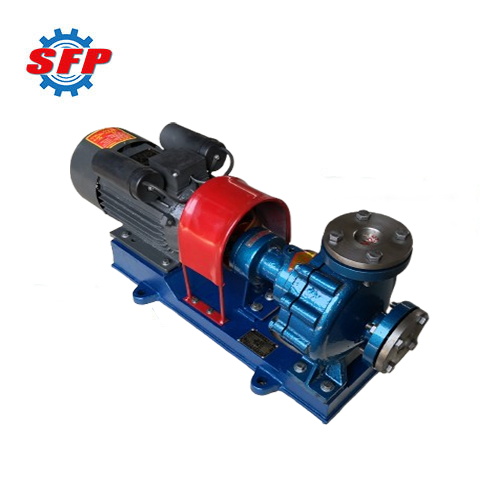

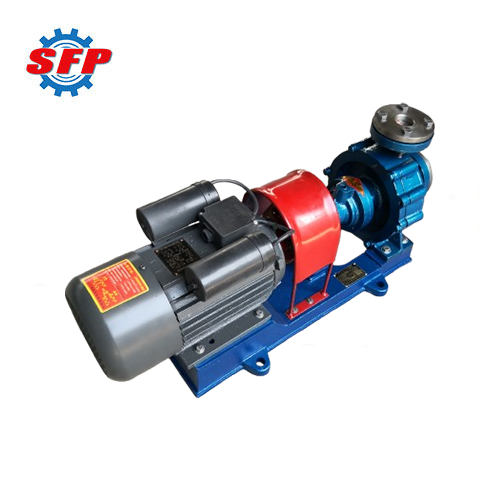

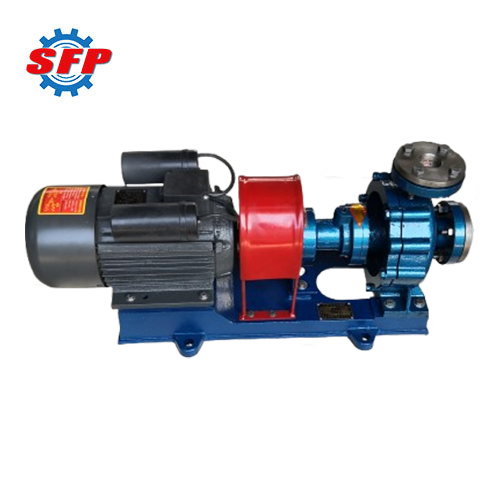

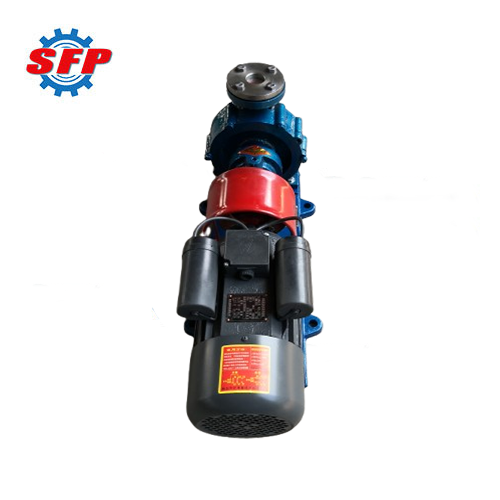

OEM Customized RY Series High Temperature Oil Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

RY series centrifugal oil pump is a single-stage, single-suction cantilever type pump, typically used for conveying high-temperature lubricating oils free of solid particles and fibers. Featuring advanced technology, strong corrosion resistance, high efficiency and energy savings, and easy maintenance, this pump is a key component of heat exchange systems in industries such as textiles, printing and dyeing, plastics, rubber, petroleum, chemicals, and food.

Product Details:

The RY series centrifugal pump is operating, the motor drives the impeller at high speed, forcing hot oil into the center of the impeller through the suction port. Simultaneously, centrifugal force propels the hot oil toward the outer edge of the impeller, pressurizing it. The high-pressure oil is then discharged through the volute, completing a high-temperature closed circulation system.

Application:

RY series hot oil centrifugal pumps are suitable for conveying hot oil media or other high-temperature oil media with a temperature not exceeding 350°C and a viscosity of 5-300cst. They can be widely used in rubber, plastics, drainage, emergency rescue, heating, printing and dyeing, petroleum, chemical, food and pharmaceutical industries.

Feature:

1. Its seal utilizes a combination of a packing seal and a mechanical seal to prevent leakage during transfer.
2. The pump's basic structure is a single-stage, single-suction cantilever type, with the motor mounted on the same base, making installation and maintenance easier.
3. The motor can be connected to the pump via a flexible coupling, allowing the entire unit to be disassembled without removing the pump casing and motor from the baseplate.
4. This pump utilizes dual ball bearings for support, features lubrication at the front, and features a central oil passage, allowing for continuous monitoring of sealing and thermal oil recovery.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Power(kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
