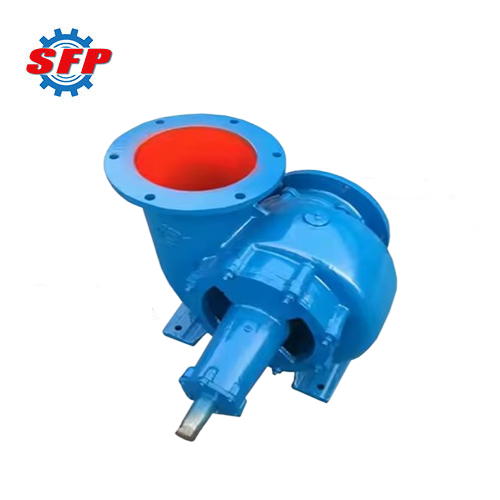

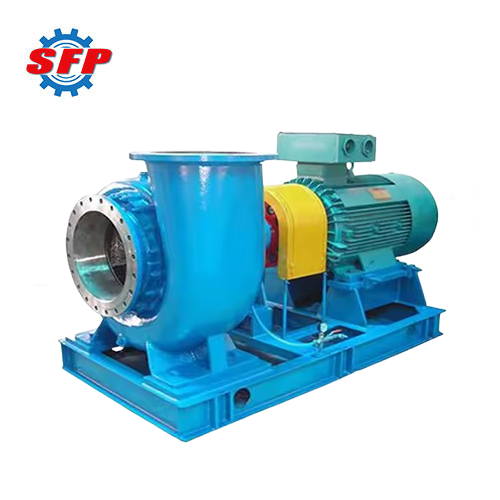

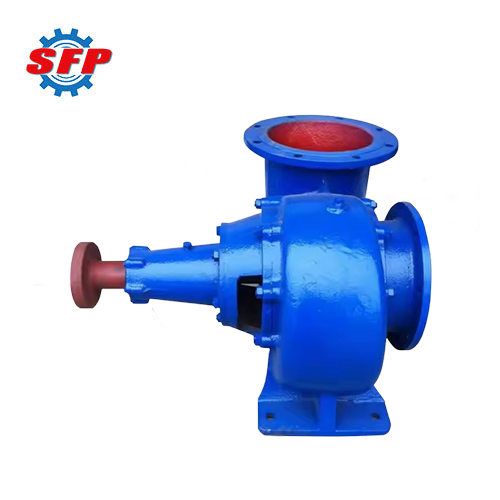

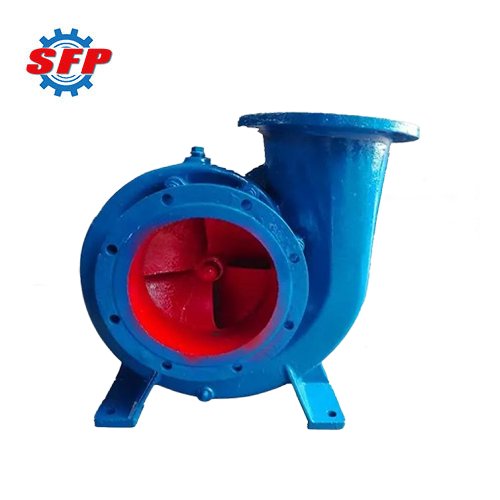

China Supplier HW Series Horizontal Mixed Flow Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

G Series Sludge Screw Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

HW series centrifugal pumps are horizontal single-stage, single-suction volute pumps designed to handle clear water or other liquids similar to water in physical and chemical properties. With its high efficiency and energy saving, simple operation, superior performance, small size, easy installation and long service life, this pump is usually a popular choice in agriculture, chemical industry, electric power, metallurgy, paper making and other fields. In addition, we can also provide low flow rate large, low energy consumption, high efficiency head mixed flow pumps, which are usually especially suitable for the construction and renewal of pumping stations.

Product Details:

HW series horizontal centrifugal pump combines the working principles of centrifugal and axial flow pumps, the impeller generates both centrifugal force and axial thrust when rotating, so that the liquid obtains high energy in the pump. It mainly consists of pump cover, impeller, pump body, pump shaft, shaft sleeve and bearing body, etc. Moreover, the sealing device of pump shaft is composed of packing, gasket gland, gasket ring, etc., which can prevent air from being sucked into the pump along the shaft and water from flowing out of the pump along the shaft.

Application:

1. Industrial circulating water: It is widely used in industrial circulating water system of chemical industry, electric power, metallurgy, paper making and other industries.
2. Urban water supply and drainage: It can be used in the water supply and drainage system of urban water supply plant, sewage treatment plant and so on.
3. Other fields: This machine can also be used in water conservancy projects, flood control and drainage, aquaculture and other fields.
4. Agricultural irrigation: It is suitable for all kinds of agricultural irrigation projects, such as paddy field, dry field, etc.

Feature:

1. It is possible to meet different users' demands by cutting the outer diameter of the impeller or replacing the impeller with different performance.
2. HW series centrifugal pumps are horizontal, single-stage, single-suction structure, with simple structure and smooth operation.
3. It adopts front and rear open structure, which is convenient for overhauling and maintenance.
4. This machine can add irrigation water or connect with vacuum pump to pump water.
5. The cantilever design makes the installation and use of the pump more flexible.

Performance Data:

Model	Capacity		Head	Speed	Effciency	Power(kw)		NPSHr
Model	(l/s)	(m³/h)	(m)	(r/min)	(%)	Shaft	Motor	(m)
100HW-5	25	90	5	2900	79	1.55	2.2	4
100HW-8	25	90	8	2900	81	2.42	3	4
100HW-12	25	90	12.5	2900	81	3.78	5.5	4
150HW-5	50	180	5	1450	82	2.99	4	2.7
150HW-8	50	180	8	1450	82	4.78		2.7
150HW-12	50	180	12.5	2900	82	7.47		6
200HW-4	95	340	4	1060	81	4.6		4
200HW-5	100	360	5	1450	81.5	6.01		4
200HW-8	100	360	8	1450	83.5	9.39	11	4
200HW-12	100	360	12.5	1450	83.5	14.68		4
250HW-4	125	450	4.2	980	82.5	6.3		4
250HW-5	150	540	5	1180	82	8.97		4
250HW-7	125	450	7	980	83	10.5	15	4
250HW-8	150	540	8	1180	84	14.01		4
250HW-12	150	540	12.5	1180	84	21.88		4
300HW-4	197	710	4	780	83.5	4.4	11	4
300HW-5	220	792	5	970	83	12.99		4
300HW-7	216	780	7	980	84	17.7	22	4
300HW-8	220	792	8	970	85	20.3		4
300HW-12	220	792	12.5	970	85	31.72		4
350HW-4	278	1000	4.3	980	85	16.6	22	4.5
350HW-8	278	1000	8	980	85.5	25.5		4.5
400HW-5	400	1440	5	730	84	23.34		4
400HW-7	350	1260	6.8	730	86	28.1	30	4
400HW-8	400	1440	8	730	86	36.48		4
400HW-10	390	1400	10	730	86	44.5	55	4
400HW-12	400	1440	12.5	730	86	57		5.5
500HW-6	550	1980	6.2	580	86	38.9	45	5.5
500HW-7	650	2340	7	730	85	52.48		5.5
500HW-11	650	2340	11	730	87	80.57		5.5
650HW-7	940	3400	6.5	450	90	68	90	5.5
650HW-10	923	3322	9.7	490	89	98.6	115	5.5
