Product Description

Summarize:

The ZX series horizontal centrifugal water pumps are suitable for transporting various media, such as clean water, seawater, acid-alkaline chemical liquids, and slurries with low solid content. This series of pumps can be mainly used in industries such as environmental protection, construction, electric power, petroleum, mining, pharmaceuticals, and chemical engineering. In addition, the pump has a strong self-priming ability and does not require the installation of a foot valve, thereby simplifying the pipeline system and improving the working environment.

Product Details:

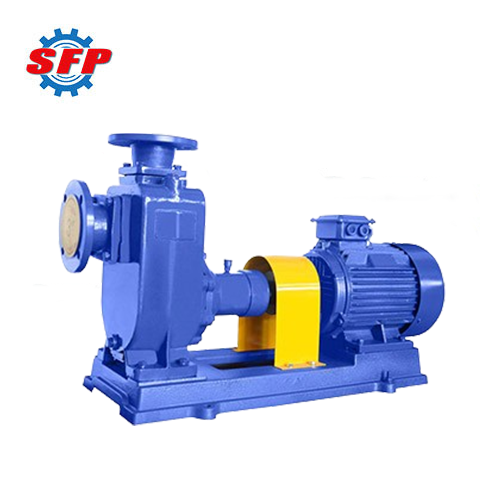

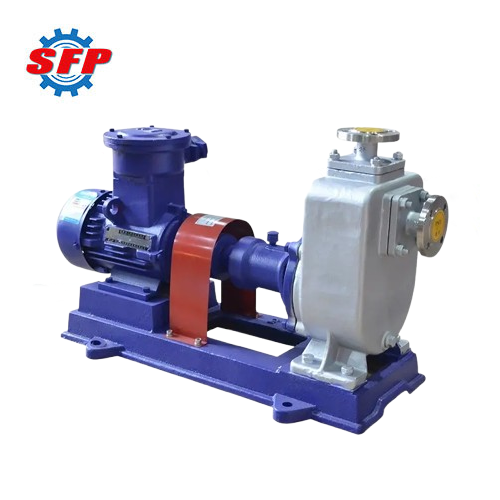

ZX series self priming centrifugal pump utilizes a single-stage, single-suction cantilever structure, mainly consisting of a pump body, impeller, seal, bearing, and coupling. The pump uses centrifugal force to propel the liquid toward the outer edge of the vortex chamber, after which the liquid is discharged from the pump body outlet. The rotation of the impeller converts the mechanical energy of the motor into the kinetic energy and pressure energy of the liquid, thereby achieving liquid transportation.

Application:

ZX series centrifugal water pumps are suitable for clean water, seawater, and acidic or alkaline chemical media liquids, as well as slurries with general viscosity (medium viscosity ≤ 100 PCT, solid content not exceeding 30%). They can be applied in fields such as urban environmental protection, brewing, pharmaceuticals, firefighting, chemicals, dyes, textile printing and dyeing, electroplating, papermaking, petroleum, mining, construction, and oil tanker drainage. Additionally, the pump is equipped with an arm-type nozzle that can spray water into the air to form fine droplets, making it an ideal tool for farms, nurseries, orchards, and tea gardens.

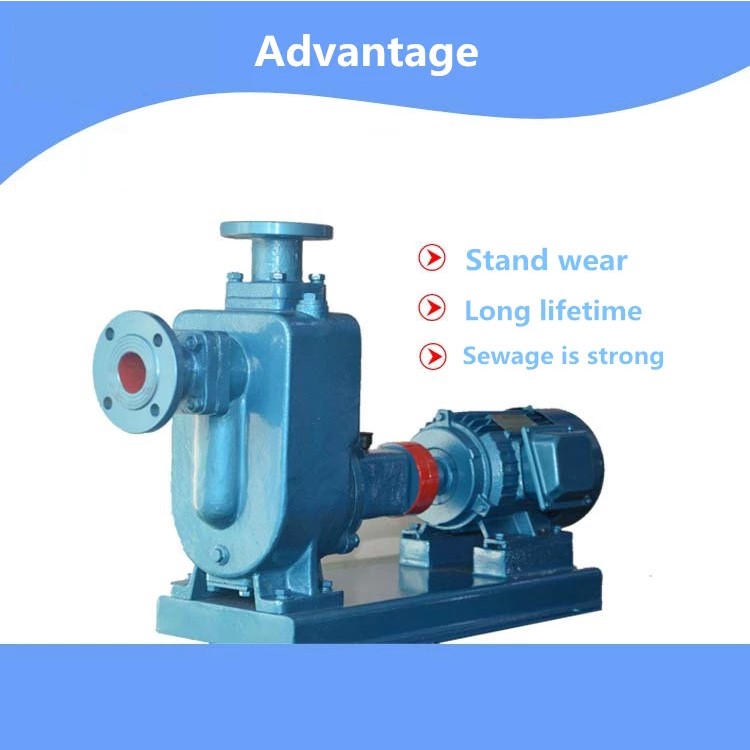

Feature:

1. This pump's low-noise design helps create a more comfortable and quiet working environment.
2. It features a compact and lightweight design for easy and efficient installation and maintenance.
4. Advanced hydraulic design ensures optimized flow and pressure, thereby minimizing energy consumption and operating costs.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	m³/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
