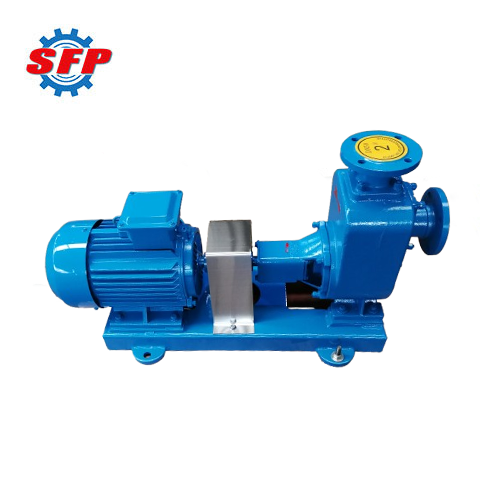

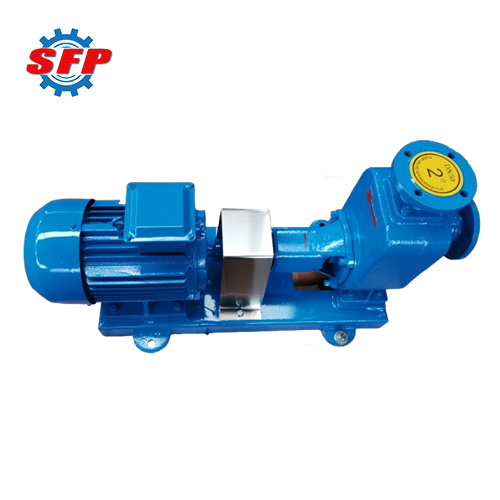

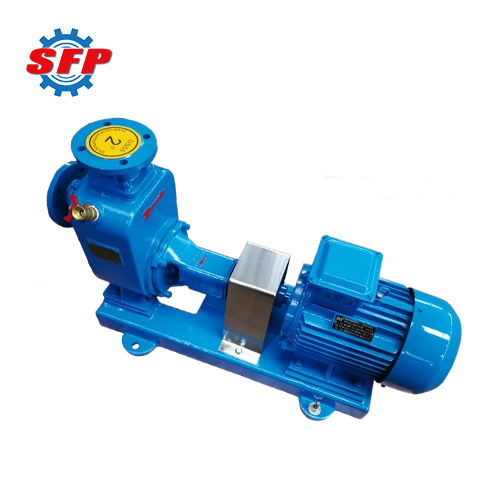

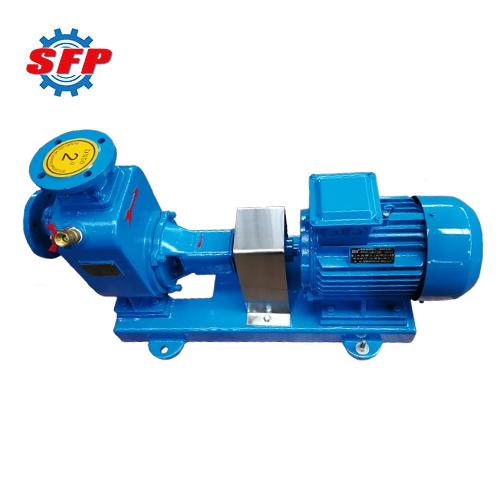

OEM Service ZX Series Self Priming Centrifugal Water Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

ZX series self-priming inline water pumps are commonly applied for conveying clear water, sewage, seawater, light oil, acid, alkali and strong corrosive liquids, so they can usually be applied to petroleum, chemical, construction, metallurgy, electric power, building and other industries. The product is characterized by smooth operation, sturdy structure, strong self-absorption capacity and long service life.

Product Details:

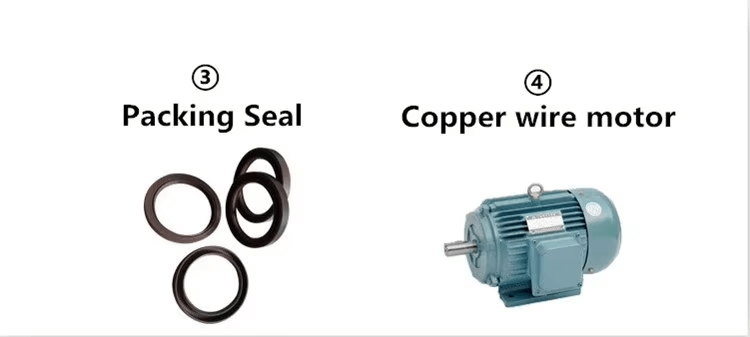

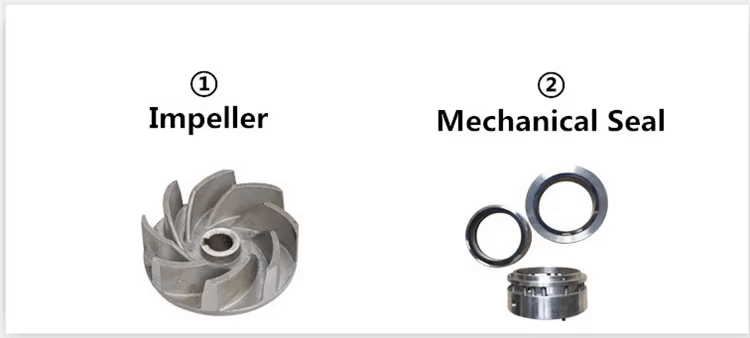

ZX series centrifugal water pump is a high-efficiency and energy-saving centrifugal pump developed with international advanced design software. It adopts single-stage single-suction cantilevered structure and is mainly composed of pump body, impeller, seal, bearing and coupling. The pump throws the liquid to the outer edge of the vortex chamber by centrifugal force and then discharges it through the outlet of the pump body. The rotation of the impeller converts the mechanical energy of the motor into the kinetic energy and pressure energy of the liquid, thus realizing the transportation of the liquid.

Application:

1. This machine can transport clear water, seawater, acidic and alkaline, chemical medium liquid and medium viscosity ≤100PCT, solid content not more than 30% of the medium.
2. It can also be used with any type and size of filter press, and is the most ideal pump type for feeding into filters for pressure filtration.
3. The machine can be installed with a rocker-type nozzle to spray water into the air and then into a small rain. It is a good helper for farms, nurseries, orchards, tea gardens.
4. It is suitable for city environmental protection, construction, fire fighting, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, papermaking, petroleum, mining, equipment, cooling, tanker drainage and other industries.

Feature:

1. The use of advanced hydraulic design ensures optimal flow and pressure, thus minimizing energy consumption and operating costs.
2. This machine is made of high quality and durability to provide stable and reliable performance over a long period of time.
3. Adopt compact and lightweight design to make installation and maintenance simple and efficient.
4. The low-noise design helps to create a more comfortable and less intrusive working environment.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	M3/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
