Product Description

Summarize:

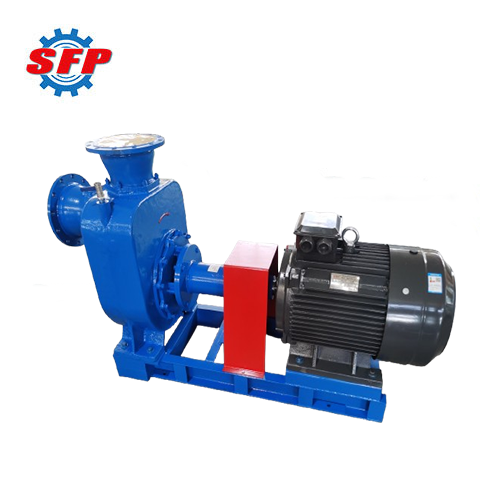

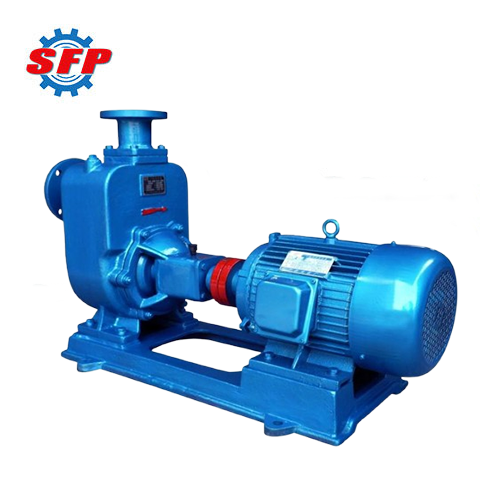

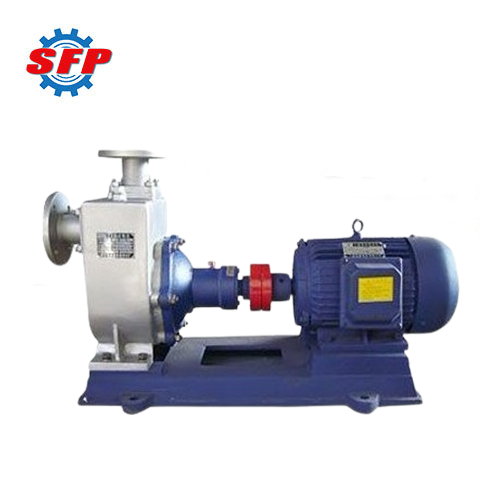

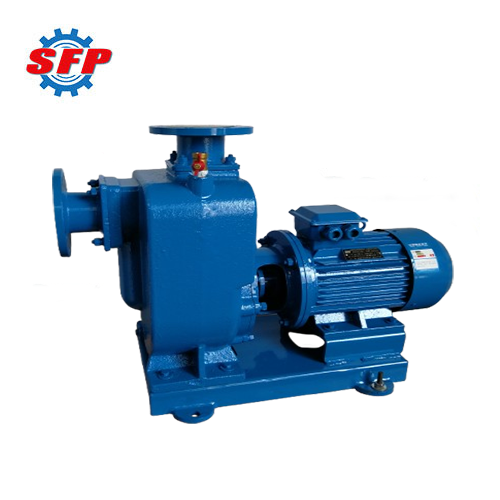

ZW series self-priming centrifugal pumps integrate advanced technologies from similar products both domestically and internationally, combining self-priming functionality with wastewater conveyance capabilities into a single unit. These pumps can operate like conventional self-priming clean water pumps without requiring a foot valve or priming water, while also being capable of sucking and discharging solid-liquid mixtures containing large solid particles and long fibrous impurities. As a result, this series of pumps serves as an ideal conveyance device for industries such as light industry, textiles, papermaking, food processing, chemicals, and power generation.

Product Details:

ZW series centrifugal pumps require a certain amount of priming liquid in the inlet piping before operation. When the pump is started, the liquid inside the impeller is flung toward the outer edge of the impeller under the influence of centrifugal force, creating a low-pressure zone at the center of the impeller. Under the pressure of atmospheric pressure, the liquid in the pipeline is forced into the pump's suction inlet and then enters the center of the impeller. The liquid is driven by the impeller to rotate at high speed, increasing its velocity. The flung-out liquid enters the pump casing and is subsequently discharged.

Application:

ZW series horizontal centrifugal pumps are suitable for conveying solid-liquid mixtures containing large particles and long fibers. They can be mainly used in municipal engineering, industrial construction, hotels, hospitals, civil defense projects, mines, and other fields to treat various types of sewage, wastewater, rainwater, and domestic water containing long fibers.

Feature:

1. This pump shaft's concentricity and the impeller's excellent dynamic and static balance ensure smooth operation with no vibration.
2. It boasts superior self-priming capability, with a self-priming height exceeding that of ordinary self-priming pumps and a shorter self-priming time.
3. The pump shaft's concentricity and the impeller's static and dynamic balancing performance are excellent, ensuring smooth operation with no vibration.
4. To enhance pumping efficiency, an advanced hydraulic model is employed, resulting in an efficiency 3-5% higher than that of ordinary self-priming pumps.

Performance Data:

Type	Flow (m³/h)	Lift Head (m)	Power (kw)	Rotation Speed(r/min)	Cavatation Allowance(m)
25ZW8-15	8	15	2.2	2900	2.0
32ZW5-20	5	20	2.2	2900	2.5
32ZW10-20	10	20	2.2	2900	2.5
32ZW9-30	9	30	2.2	2900	2.5
40ZW10-20	10	20	2.2	2900	2.5
40ZW15-30	15	30	3	2900	2.5
40ZW20-15	20	15	2.2	2900	2.5
50ZW10-20	10	20	2.2	2900	2.5
50ZW20-12	20	12	2.2	2900	2.5
50ZW15-30	15	30	3	2900	2.5
50ZW20-35	20	35	5.5	2900	2.5
65ZW30-18	30	18	4	1450	2.5
65ZW25-30	25	30	5.5	2900	3.0
65ZW25-40	25	40	7.5	2900	3.0
65ZW40-25	40	25	7.5	2900	3.0
65ZX65-25	65	25	7.5	2900	3.0
80ZW40-16	40	16	4	1450	3.0
80ZW40-25	40	25	7.5	2900	3.0
80ZW65-25	65	25	7.5	2900	5.5
80ZW80-35	80	35	15	2900	5.5
80ZW80-45	80	45	22	2900	5.5
80ZW50-60	50	60	22	2900	5.5
100ZW100-15	100	15	7.5	1450	5.5
100ZW100-20	100	20	11	1450	5.5
100ZW100-30	100	30	22	2900	5.5
100ZW80-60	80	60	37	2900	5.5
I00ZW80-80	80	80	45	2900	5.5
125ZW120-20	120	20	15	1450	5.5
150W200-15	200	15	15	1450	5.5
150ZW200-20	200	20	22	1450	5.5
