Product Description

Summarize:

ZJ series horizontal centrifugal slurry pump belongs to single-stage single suction double shell centrifugal slurry pump. This series of pumps in absorbing the advantages of similar products on the basis of hydraulic design, pump body structure design, overflow parts selection of materials and other aspects of innovation. It is often used to transport strong abrasive high concentration or low concentration high head slurry, can also be used to transport fine particles, medium concentration of slurry. It can be extensively utilized in electric power, metallurgy, coal, chemical building materials and other industries.

Product Details:

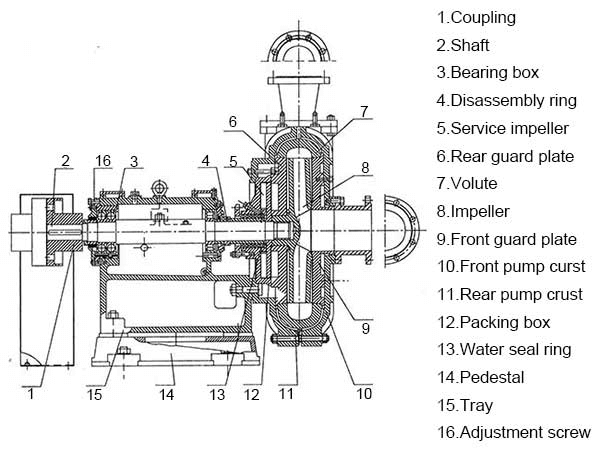

ZJ series centrifugal pump is composed of coupling, pump shaft, impeller, bearing box and other components. The pump generates centrifugal force through the high-speed rotation of the impeller to throw the liquid from the center of the impeller to the outer edge The liquid will be under the action of centrifugal force, the kinetic energy of the liquid is gradually converted into potential energy, so that the liquid will be transported to a certain height and distance through the drainage pipe. Under the action of atmospheric pressure, the liquid enters into the impeller through the inlet pipe, thus realizing the continuous suction and discharge process.

Application:

ZJ series horizontal slurry pump can be widely applied in the mining, electric power, metallurgy, coal, environmental protection and other industries to transport slurry containing abrasive solid particles. Such as metallurgical benediction plant slurry transportation, thermal power plant ash removal, coal washing plant coal slurry and heavy medium transportation, dredging rivers, river dredging and so on. In the chemical industry, some corrosive slurring containing crystals can also be transported.

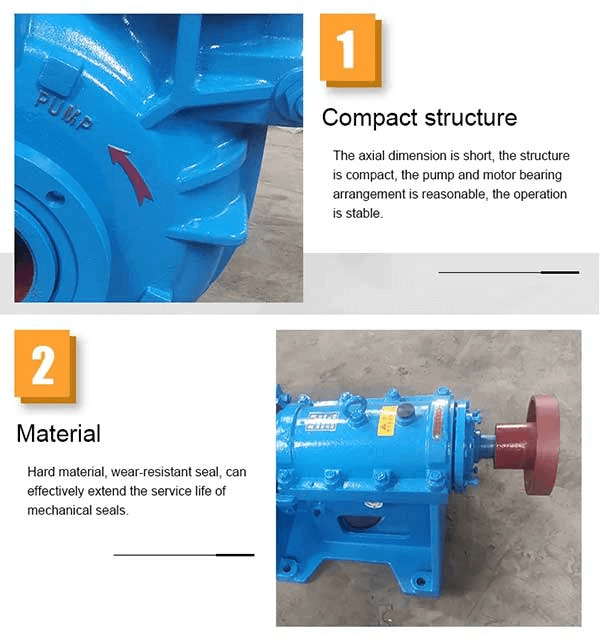

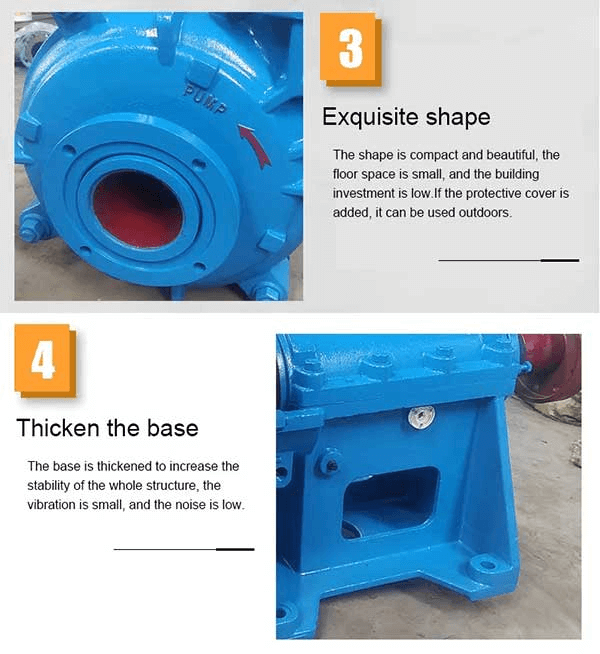

Feature:

1. This pump adopts advanced hydraulic design, which improves the hydraulic efficiency of the pump and reduces energy consumption.
2. Its overflow parts are made of high hard alloy cast iron, which prolongs the service life of the pump.
3. The pump body has reasonable structural design, smooth operation, low vibration and low noise.
4. It can adopt packing seal, vice impeller seal or mechanical seal to ensure no leakage of slurry.

Performance Data:

Model	Capacity （m3/h）	Head（m）	Speed（r/min）	Power（kw）
40ZJ-I-A17	9	44.6	2900	5.5
	18	42.7		7.5
	23	39.3		7.5
50ZJ-I-A33	26	42.5	1480	15
	40	410.0		18.5
	54	34.5		18.5
50ZJ-I-A46	48	85.8	1480	45
	77	82.3		55
	94	79.9		55
50ZJ-I-A50	57	110.7	1480	75
	91	105.5		75
	111	99.8		90
65ZJ-I-A27	42	28.2	1460	11
	56	27.5		11
	71	25.9		11
65ZJ-I-A30	47	34.8	1460	11
	62	33.9		15
	79	32.0		15
80ZJ-I-A33	90	43.2	1780	30
	128	40.3		30
	174	35.9		37
80ZJ-I-A36	98	51.4	1480	30
	140	48.0		37
	190	42.7		45
80ZJ-I-A39	121	60.7	1480	45
	158	57.9		55
	189	55.4		55
100ZJ-I-A33	119	41.6	1480	30
	202	37.8		37
	205	36.5		45
100ZJ-I-A36	130	18.2	1480	37
	220	16.6		55
	245	16.0		55
