Product Description

Summarize:

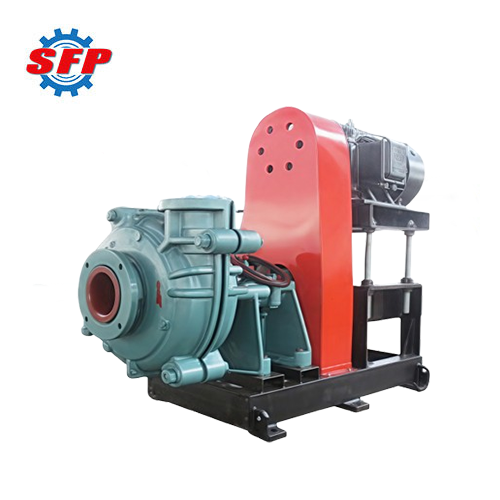

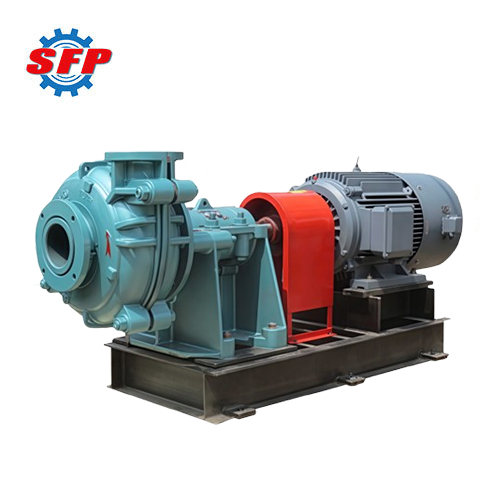

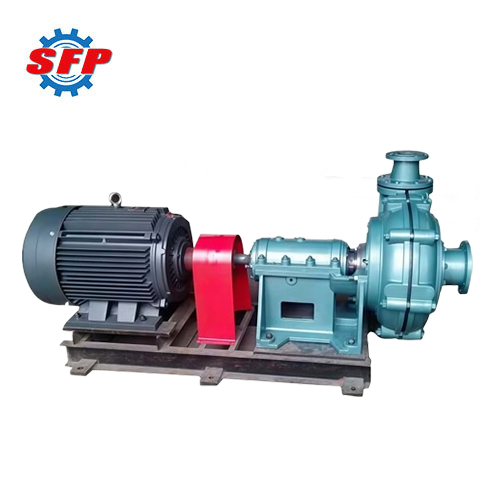

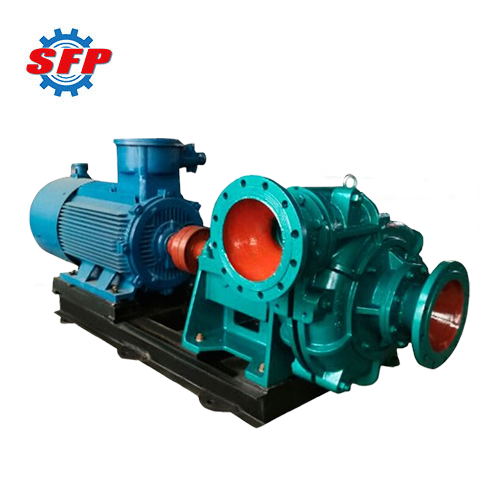

ZJ series slurry centrifugal pump is a single-stage, single-suction centrifugal pump specifically designed for conveying abrasive and highly corrosive high-concentration mud containing solid particles. This pump's fluid components are made of high-chromium alloy cast iron, offering excellent wear resistance, corrosion resistance, and impact resistance, thereby significantly extending the pump's service life. As a result, it is widely applied in industries such as power generation, metallurgy, coal, building materials, and chemicals.

Product Details:

ZJ series heavy duty slurry pump consists of components such as a coupling, pump shaft, impeller, and bearing housing. This pump generates centrifugal force through the high-speed rotation of the impeller, propelling the liquid from the center of the impeller to its outer edge. Under the influence of centrifugal force and other factors, the kinetic energy of the liquid gradually converts into potential energy, enabling the liquid to be transported to a certain height and distance via the discharge pipe. Subsequently, under the influence of air pressure, the liquid enters the impeller through the water pipe, thereby achieving a continuous process of suction and discharge.

Application:

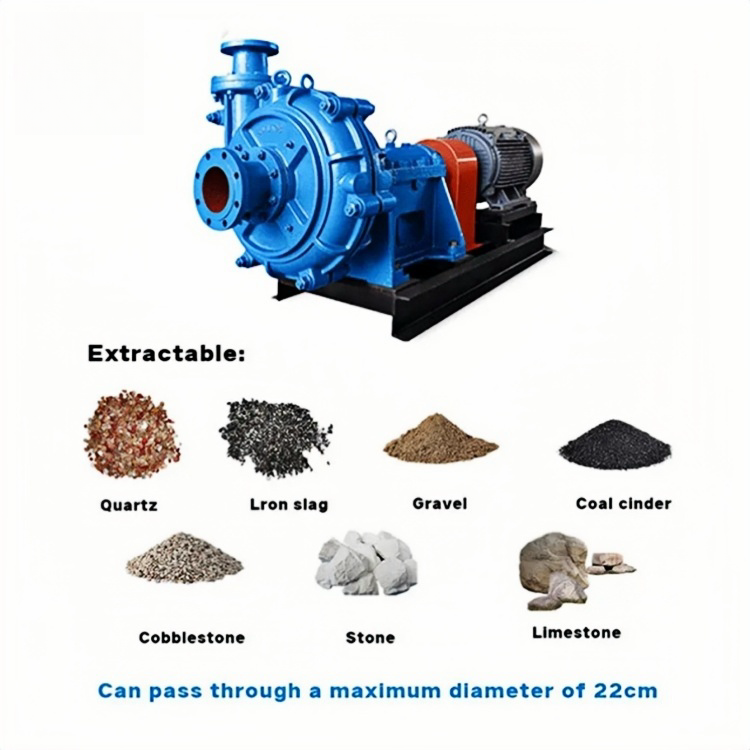

ZJ series horizontal slurry pumps are used in industries such as mining, power, metallurgy, coal, and environmental protection for the transportation of slurry containing abrasive solid particles. Whether it is slurry transportation in metallurgical ore dressing plants, ash removal in thermal power plants, coal slurry and heavy medium transportation in coal washing and sorting plants, river dredging, river desilting, or the transportation of corrosive slurry containing crystals, this pump can meet all transportation requirements.

Feature:

1. It adopts advanced hydraulic design, which improves hydraulic efficiency and reduces energy consumption.
2. The outlet position of the pump can be installed and used at different angles as needed, which is convenient for on-site layout.
3. It can be equipped with packing seals, auxiliary impeller seals, or mechanical seals, ensuring minimal leakage during operation.
4. This pump body adopts a double metal structure inside and outside. This structural design not only enhances the wear resistance of the pump, but also facilitates the replacement of flow parts.

Performance Data:

Model	Capacity （m³/h）	Head（m）	Speed（r/min）	Power（kw）
40ZJ-I-A17	9	44.6	2900	5.5
	18	42.7		7.5
	23	39.3		7.5
50ZJ-I-A33	26	42.5	1480	15
	40	410.0		18.5
	54	34.5		18.5
50ZJ-I-A46	48	85.8	1480	45
	77	82.3		55
	94	79.9		55
50ZJ-I-A50	57	110.7	1480	75
	91	105.5		75
	111	99.8		90
65ZJ-I-A27	42	28.2	1460	11
	56	27.5		11
	71	25.9		11
65ZJ-I-A30	47	34.8	1460	11
	62	33.9		15
	79	32.0		15
80ZJ-I-A33	90	43.2	1780	30
	128	40.3		30
	174	35.9		37
80ZJ-I-A36	98	51.4	1480	30
	140	48.0		37
	190	42.7		45
80ZJ-I-A39	121	60.7	1480	45
	158	57.9		55
	189	55.4		55
100ZJ-I-A33	119	41.6	1480	30
	202	37.8		37
	205	36.5		45
100ZJ-I-A36	130	18.2	1480	37
	220	16.6		55
	245	16.0		55
