WQ Series Vertical Sewage Pump
WQ Series Vertical Sewage Pump
WQ Series Vertical Sewage Pump
WQ series vertical sewage pumps are specially designed for conveying industrial wastewater, municipal sewage, rainwater, and other domestic water containing solid particles and corrosive liquids. The pump is characterized by high efficiency and energy saving, non-clogging, anti-tangling, automatic control and superior performance, so it is usually used in municipal engineering, environmental protection, industrial construction, mining and other fields. At the same time also gradually become the ideal equipment to replace the traditional centrifugal pumps used to deal with the complex working conditions in the long fiber and corrosive media.
Head: 6-60m
Power: 0.75-280kW
Rotation Speed: 740-2900r/min
Product Description
Summarize:


WQ series vertical sewage pump is a new generation of non-clogging submersible sewage pumps, which is specially designed to deal with solid particles and corrosive media, such as sewage, industrial wastewater, rainwater and other domestic water. Therefore, the pump can be widely used in farmland, municipal engineering, industrial construction, environmental protection and mining and other industries. At the same time Moreover, due to the special large channel design, the pump effectively improves the drainage capacity and can pass solid particles with a diameter of about 50% of the pump caliber.

Product Details:
WQ series submersible centrifugal pump adopts the coaxial integrated structure of pump body and motor. When the pump is running, the motor will drive the impeller to rotate at a high speed, and the blades in the impeller will drive the liquid to rotate and generate centrifugal force at the same time. Under the action of centrifugal force, the liquid will be thrown from the center of the impeller to the edge of the impeller, so as to realize the transmission of the medium.


Application:
WQ series centrifugal water pumps are designed to handle solid particles and fibers as well as corrosive media, including sewage, wastewater, rainwater and clean water. They are typically used in petroleum, chemical, paper, mining, pharmaceutical, coal processing, wastewater treatment, environmental protection, industrial construction and municipal engineering.
Feature:
1. Its mechanical seal of the pump is made of hard and corrosion-resistant new titanium tungsten material, which can make the pump run continuously for more than 8000 hours.
2. It can be equipped with double-rail auto-coupling mounting system according to users' needs, which brings more convenience for installation and maintenance.
3. This pump adopts float control, which can automatically control the start and stop of the pump according to the change of the required liquid level.

4. The single impeller or double impeller structure can effectively pass 5 times the fiber diameter and 50% solid particle diameter.

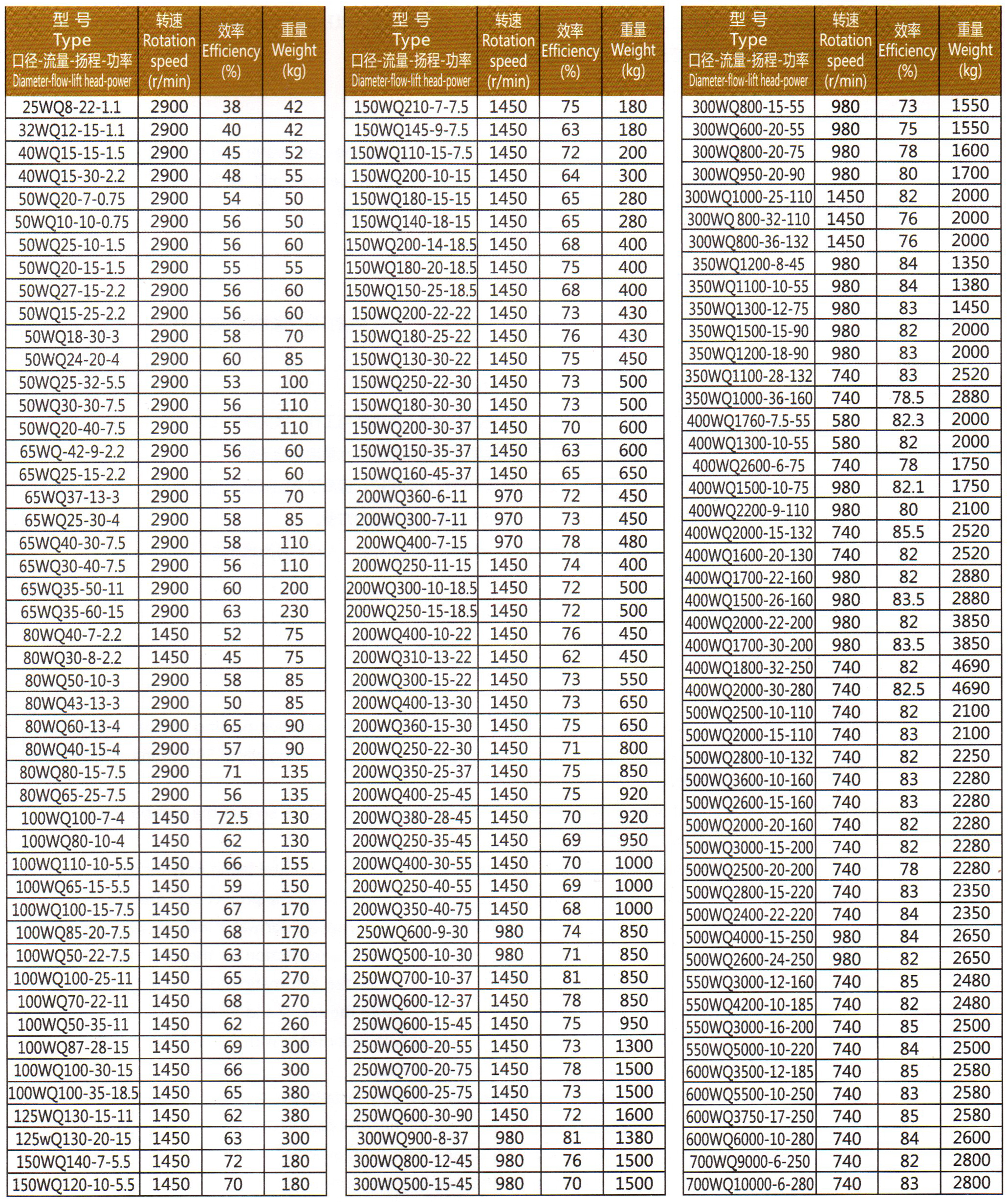

Performance Data:
