WQ Series Vertical Submerged Centrifugal Pump
WQ Series Vertical Submerged Centrifugal Pump
Vertical WQ Centrifugal Pump
WQ submersible centrifugal pump can be used to convey particles with particles of sewage, dirt, fresh water and corrosive media in petroleum, chemical, mining, pharmaceutical, cement plants, paper industry, steel mills, power plants, as well as municipal sewage treatment plants, drainage systems, construction sites, municipal engineering and other industries. This machine has the advantages of compact structure, small volume, remarkable energy-saving effect and convenient maintenance.
Head: 6-60m
Power: 0.75-280kW
Flow Rate: 8~10000m3/h
Product Description
Summarize:

WQ series centrifugal slurry pump is a pump product developed by absorbing domestic and foreign pump manufacturing experience. It can be applied to deal with sewage and dirt with particles, and can also be used to pump clear water and corrosive media. With the features of compact structure, anti-tangling, non-clogging, automatic control, easy installation and other characteristics, so it has become the first choice of equipment for cement plants, steel mills, power plants, urban sewage drainage plants and other occasions. The product has a unique effect in discharging solid particles and long-fiber garbage, meanwhile, it has both self-priming function and linkage non-clogging dredging function, and it can be used as clear water self-priming pump.

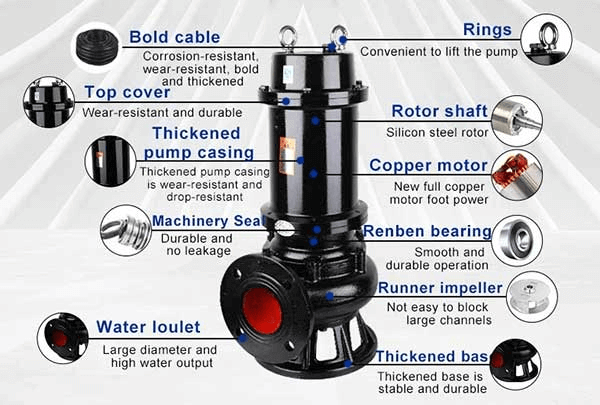

Product Details:
WQ series submersible sewage pump's impeller rotates at high speed driven by the motor, and the blades in the impeller drive the liquid to rotate and generate centrifugal force. Under the action of centrifugal force, the liquid is thrown from the center of the impeller to the edge of the impeller, so as to obtain energy and increase the pressure and speed.




Advantage:
1. The automatic control cabinet can be configured according to the user's needs to automatically protect the water leakage, electric leakage, overload, over temperature, etc. of the water pump to improve the reliability of the product.
2. This pump is equipped with high-precision anti-interference water leakage detection sensor in the sealing oil cavity, and the stator winding is embedded with thermal components to automatically protect the pump motor.
3. Double-rail auto-coupling mounting system can be equipped according to user's needs. This brings more convenience for installation and maintenance, and there is no need to enter the pit for this purpose.
4. The float switch can automatically control the start and stop of the pump according to the change of the required liquid level. There is no need for professional operation and it is very convenient to use.
5. Its mechanical seal is made of hard and corrosion-resistant new titanium tungsten material, which can make the pump run continuously for more than 8,000 hours.
6. Adopting single impeller or double impeller structure, can effectively pass 5 times the diameter of fiber and 50% of the diameter of solid particles in the pump.
7
. There are two different types of mounting: fixed auto-coupler mounting and double-rail auto-coupler mounting.

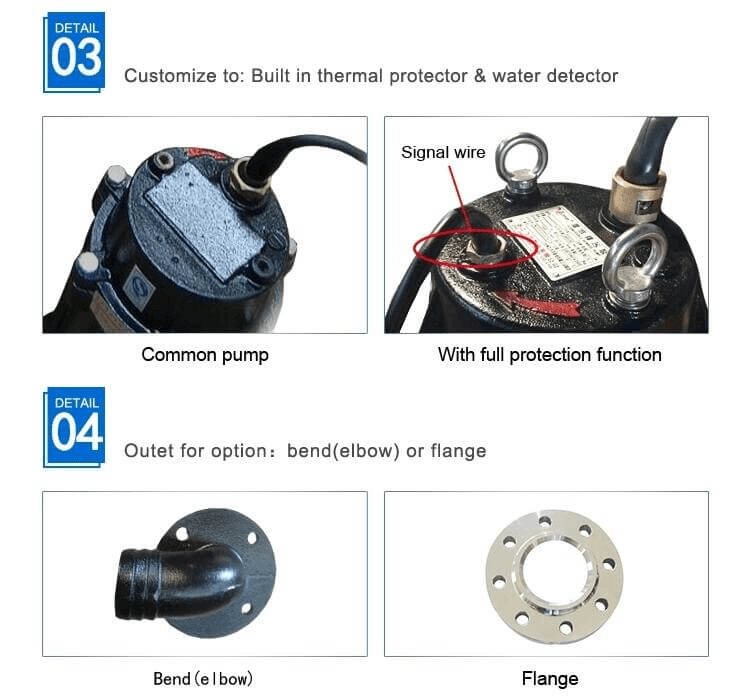

Customised Details:



Performance Data:
Model Outlet Capacity Head Speed Power Efficiency
(mm) (m3 /h) (m) (r/min) (KW) (%)
25WQ7-8-0.55 25 7 8 2900 0.55 45
25WQ8-25-1.1 25 8 25 2900 1.1 45
32WQ8-12-0.75 32 8 12 2900 0.75 48
40WQ12-15-1.5 40 12 15 2900 1.5 48
50WQ20-7-0.75 50 20 7 2900 0.75 62
50WQ10-10-0.75 50 10 10 2900 0.75 54
50WQ20-15-1.5 50 20 15 2900 1.5 51
50WQ15-30-2.2 50 15 30 2900 2.2 51
50WQ17-25-3 50 17 25 2900 3 53
50WQ25-32-5.5 50 25 32 2900 5.5 49
65WQ25-15-2.2 65 25 15 2900 2.2 52
65WQ37-13-3 65 37 13 2900 3 60
65WQ25-30-4 65 25 30 2900 4 58
