Product Description

Summarize:

IS series centrifugal water pump is a single-stage single-suction centrifugal pump, which is suitable for handling clear water and water with physical and chemical properties similar to those of water without solid particles and liquids. Due to its compact structure, reliable performance, small size, corrosion resistance, high efficiency, low power consumption, this machine has become the ideal choice for industrial and urban water supply, drainage, high-rise building pressure water supply, garden sprinkling, fire-fighting pressurization, and long-distance transmission.

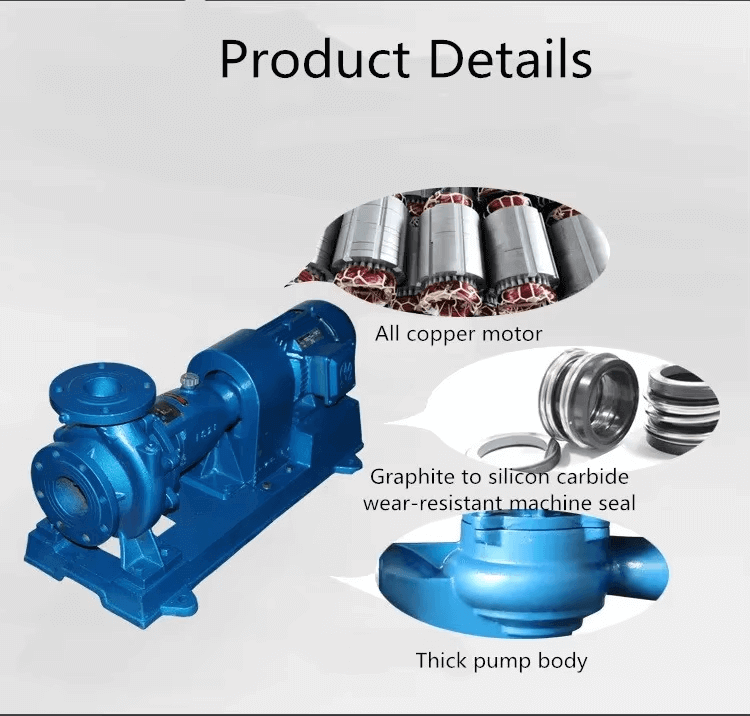

Product Details:

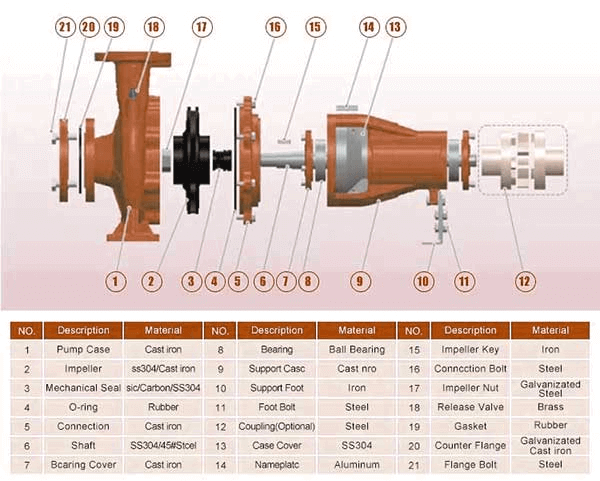

IS series centrifugal water pump of pump body, pump cover is split from the back of the impeller, that is, the so-called back door structure, the maintenance does not have to move the pump body, suction pipe, discharge pipe and motor, as long as the middle of the extended coupling connectors removed, you can take out the rotor part of the overhaul.

Application:

1.The pump is typically used in municipal water supply systems, water treatment plants, and residential and commercial distribution networks. It is ideal for increasing water pressure and ensuring a consistent flow rate.
2. In industrial environments, these pumps are used to circulate process fluids, cooling water, and to transfer chemicals and other liquids. They are suitable for use in the chemical, petrochemical and manufacturing industries.
3. This machine are commonly used in agricultural irrigation systems to transport water from sources such as wells, rivers and reservoirs to fields. Their ability to handle large volumes of water makes them an important tool for farmers.

Feature:

1. The IS series pumps utilize a single impeller and volute design for high efficiency and ease of maintenance. The single stage design is ideal for applications requiring moderate head and flow rates.
2.This machines are compact and lightweight, making them easy to install and transport, even in environments where space is limited.
3. The high efficiency design of the IS series pumps ensures minimum energy consumption and lower operating costs. The optimized impeller and volute design contributes to their efficient performance.
4. These pumps are ruggedly constructed with high quality components for durability. Minimal maintenance is required for long term reliable operation.

Performance Data:

Model	Flow (m3/hrs)	Head (m)	Power (w)	Speed (r/m)
IS50-32-125	12.5	20	2.2	3000
IS50-32-160	12.5	32	3	3000
IS50-32-200	12.5	50	5.5	3000
IS50-32-250	12.5	80	11	3000
IS65-50-125	25	20	3	3000
IS65-50-160	25	32	5.5	3000
IS65-40-200	25	50	7.5	3000
IS65-40-250	25	80	15	3000
IS65-40-315	25	125	30	3000
IS80-65-125	50	20	5.5	3000
IS80-65-160	50	32	7.5	3000
IS80-50-200	50	50	15	3000
IS80-50-250	50	80	22	3000
IS80-50-315	50	125	37	3000
IS100-80-125	100	20	11	3000
IS100-80-160	100	32	15	3000
IS100-65-200	100	50	22	3000
IS100-65-250	100	80	37	3000
IS100-65-315	100	125	75	3000
IS100-65-315	100	125	11	1450
IS125-100-200	200	50	45	3000
IS125-100-250	200	80	75	3000
IS125-100-250	200	80	11	1450
IS125-100-315	200	125	110	3000
IS125-100-315	200	125	15	1450
IS125-100-400	100	50	30	1450
IS150-125-250	200	20	18.5	1450
IS150-125-315	200	32	30	1450
IS150-125-400	200	50	45	1450
IS200-150-250	400	20	37	1450
IS200-150-315	400	32	55	1450
IS200-150-400	400	50	90	1450
