GC Series Horizontal Centrifugal Pump
GC Series Horizontal Centrifugal Pump
GC Hot Water Centrifugal Pump
GC series centrifugal boiler water pumps are horizontal single-suction multi-stage sectional pumps for conveying clear water or liquids similar to water in physical and chemical properties. It can meet the transportation requirements of boiler water supply, agricultural irrigation, long-distance transportation and so on. The pump adopts advanced hydraulic model, featuring high efficiency and wide range of performance, and can also effectively reduce energy consumption.
Capacity: 6-110 m3/h
Head Lift: 46-570m
Power:3-110kw
Product Description
Summarize:


GC seriese boiler water pump is a horizontal single-suction multistage sectional centrifugal pump, which is mainly used for boiler feed water, so it is also known as boiler feed water pump. This series of multistage pumps is applicable for handling clean water with a temperature below 110 °C or other non-corrosive liquids with physical and chemical properties similar to water. This machine is widely used in boiler feed water and urban living water supply for industrial and mining enterprises. It is characterized by smooth operation, reliable performance, low noise, long life and convenient operation and so on.

Product Details:

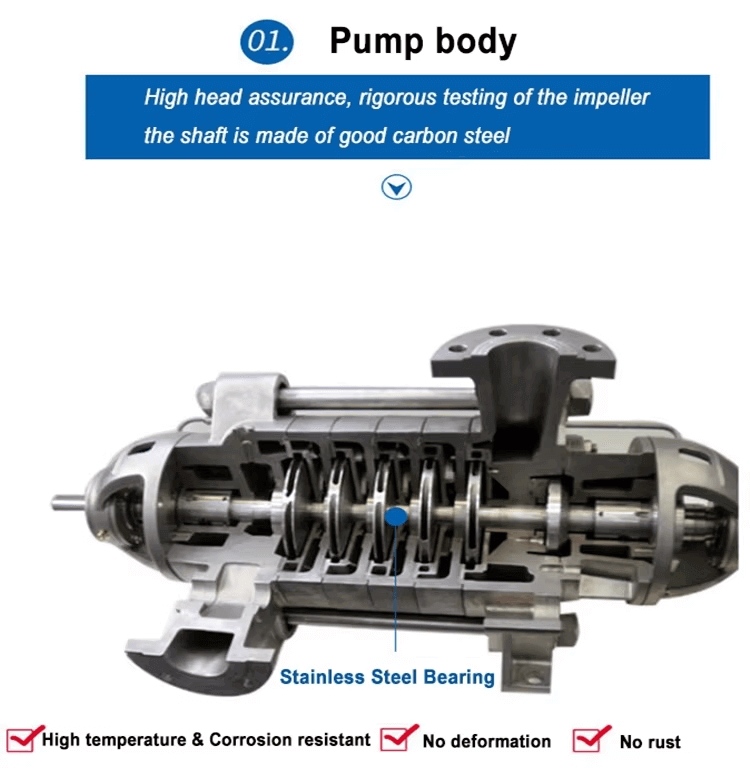

GC series centrifugal pumps are horizontal single suction multi-stage sectional centrifugal pumps. When the motor drives the impeller to rotate, the water in the impeller rotates with it, and under the action of centrifugal force, the water will be thrown to the edge of the impeller, thus forming a vacuum at the center of the impeller.  Under its vacuum, the water will be sucked into the center of the impeller from the suction pipe and finally discharged through the outlet pipe.





Application:
GC horizontal centrifugal pump is especially suitable for small boiler feed water, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire boosting, water washing, food, brewing, medicine, chemical industry. , aquaculture, environmental protection, chemical process and machine tool supporting industries, as a power equipment for water supply and drainage.
Advantage:
1. High Efficiency & Energy Saving: Adopting advanced hydraulic model with high efficiency and wide performance range, it can effectively reduce energy consumption.
2. Safe and Reliable: Its shaft seal adopts soft packing seal, simple structure, convenient and quick maintenance, ensuring safe and reliable operation.
3. Smooth Operation: The pump runs smoothly with low noise, reducing the impact on the environment.
Performance Data:
Type Capacity (m3/h) Head (m) Power (KW)
1.5GC-5*2 6 46 3
1.5GC-5*3 6 69 4
1.5GC-5*4 6 92 5.5
2GC-5*2 10 64 7.5
2GC-5*3 10 96 11
2GC-5*4 10 128 15
2.5GC-6*2 15 62 7.5
20 54
2.5GC-6*3 15 93 11
20 81
2.5GC-6*4 15 124 15
20 108
4GC-8*2 30 86 22
45 82
55 76
4GC-8*3 30 129 30
45 123
55 144
4GC-8*4 30 172 45
45 164
55 152
5GC-8*2 72 138 55
90 129
110 120
5GC-8*2A 72 122 55
90 144
110 106
5GC-8*2B 72 117 45
90 110
110 102
