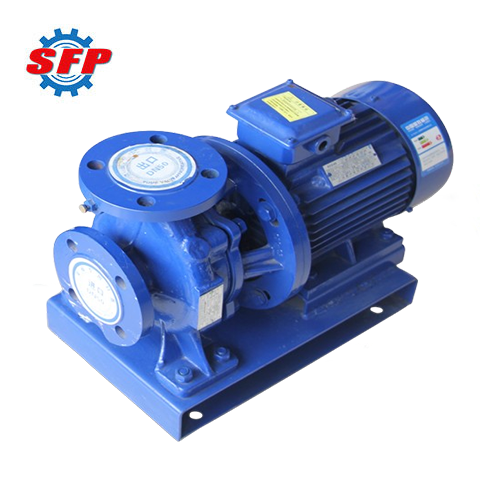

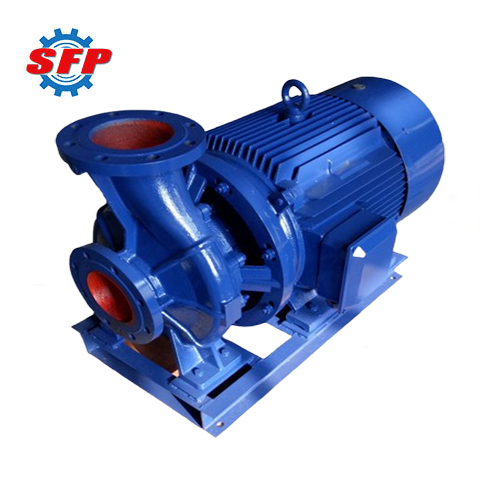

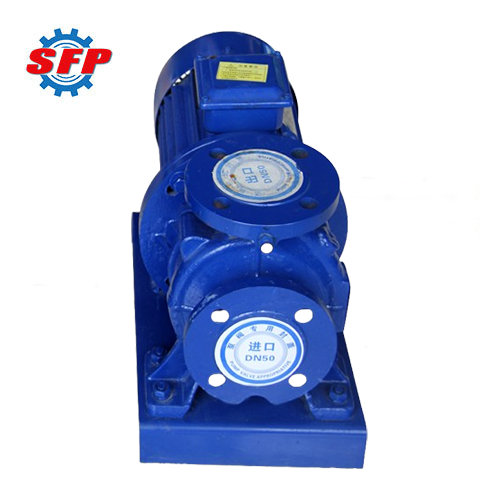

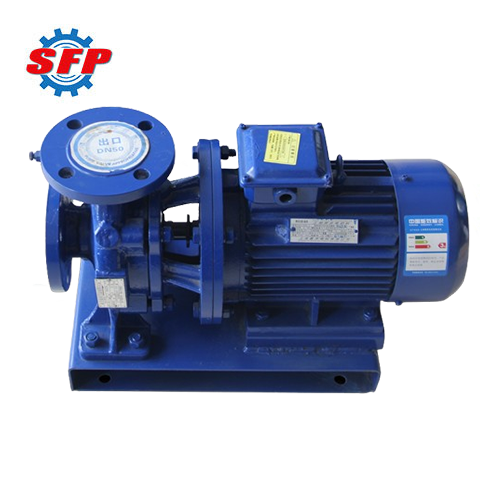

ISW series centrifugal pipeline pump is a single-stage, single-suction centrifugal pump designed for the transportation of clean water, mildly corrosive liquids, and liquids with properties similar to clean water. The pump's motor is equipped with low-noise bearings, and the impeller features optimal static and dynamic balance, ensuring that no vibration or noise is generated during operation. As a result, it is suitable for applications where strict noise control is required. Simultaneously, this product, with its well-designed structure, efficient pumping performance, and excellent operational characteristics, has gradually become a popular choice in agricultural, industrial, commercial, and municipal applications.
.png)
| Model | Capacity (m³/h) |
Lift Head (m) |
Speed (r/min) |
Motor (KW) |
Inlet&Outlet Diameter (mm) |
| 15-80 | 1.1 1.5 2.0 |
8.5 8 7 |
2800 | 0.18 | 15 |
| 20-110 | 1.8 2.5 3.3 |
16 15 13.5 |
2800 | 0.37 | 20 |
| 20-160 | 1.8 2.5 3.3 |
33 32 30 |
2900 | 0.75 | 20 |
| 25-110 | 2.8 4 5.2 |
16 15 13.5 |
2900 | 0.55 | 25 |
| 25-125 | 2.8 4 5.2 |
20.6 20 18 |
2900 | 0.75 | 25 |
| 25-125A | 2.5 3.6 4.6 |
17 16 14.4 |
2900 | 0.55 | 25 |
| 25-160 | 2.8 4 5.2 |
33 32 30 |
2900 | 1.5 | 25 |
| 25-160A | 2.6 3.7 4.9 |
29 28 26 |
2900 | 1.1 | 25 |
| 32-100 | 4.5 | 12.5 | 2900 | 0.55 | 32 |
| 32-100（I） | 4.4 6.3 8.3 |
13.2 12.5 11.3 |
2900 | 0.75 | 32 |
| 32-125 | 3.5 5 6.5 |
22 20 18 |
2900 | 0.75 | 32 |
| 32-125A | 3.1 4.5 5.8 |
17.6 16 14.4 |
2900 | 0.55 | 32 |
| 32-160 | 6.5 | 32 | 2900 | 1.5 | 32 |
| 32-160A | 4 | 25 | 2900 | 1.1 | 32 |
| 32-160(I) | 4.4 6.3 8.3 |
33.2 32 30.2 |
2900 | 2.2 | 32 |
