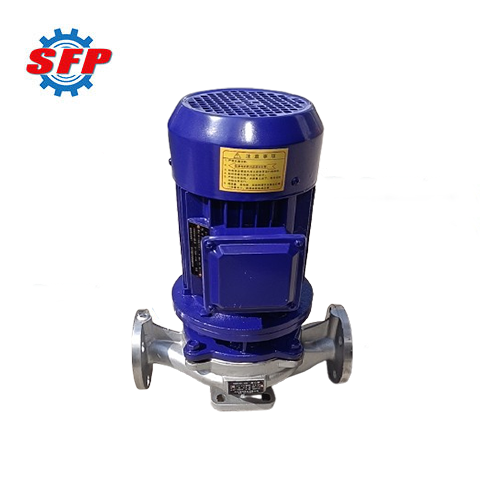

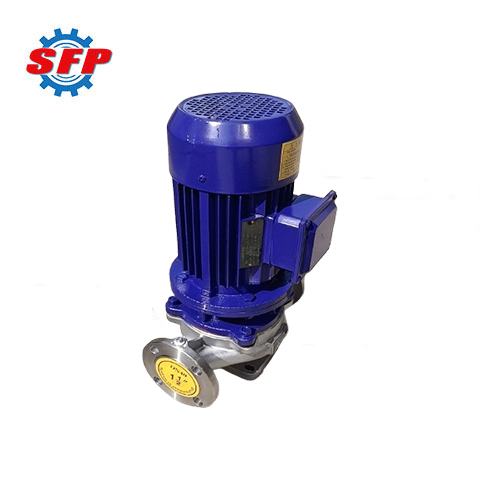

B2B ISG Series Vertical Stainless Steel Pipeline Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

ISG series vertical centrifugal pumps are typically used for conveying clean water and media with similar physical and chemical properties to clean water in long-distance transportation, high-rise building water supply, farmland irrigation, urban drainage, and other applications. The pump is made of wear-resistant materials and advanced technology, and has good wear resistance and corrosion resistance, making it more reliable and durable to meet the transportation requirements of different industries.

Product Details:

ISG series vertical centrifugal pump motor utilizes low-noise bearings, and the impeller features an optimal static and dynamic balance design, ensuring low noise and vibration-free operation. Furthermore, the shaft utilizes a wear-resistant carbide mechanical seal, eliminating the problem of severe packing seal leakage in centrifugal pumps, extending service life and ensuring a clean and tidy operating environment.

Application:

ISG series centrifugal water pumps are designed for conveying clean water and liquids with similar physical and chemical properties. They are suitable for industrial and urban water supply and drainage, high-rise building pressure boosting, garden irrigation, firefighting pressure boosting, long-distance water transportation, refrigeration cycles, bathroom heating and cooling water circulation, and other equipment support.

Feature:

1. The impeller is mounted directly on the extended motor shaft, effectively balancing the radial and axial loads generated by the pump's operation, ensuring smooth operation with low vibration and noise.
2. This pump features a vertical structure with the suction and discharge ports of the same diameter and located on the same centerline, resulting in a compact footprint and low capital investment.
3. All rotor components can be removed by simply removing the pump coupling seat nut without disassembling the piping system.

Performance Data:

Model	Flow Rate		Head (m)	Efficiency (%)	Rev (r/min)	Motor (kW)
Model	(m³/h)	(L/S)	Head (m)	Efficiency (%)	Rev (r/min)	Motor (kW)
15-80	1.5	0.42	8	34	2800	0.18
20-110	2.5	0.69	15	34	2800	0.37
20-160	2.5	0.69	32	25	2900	0.75
25-110	4	1.11	15	42	2900	0.55
25-125	4	1.11	20	36	2900	0.75
25-125A	3.6	1	16	35	2900	0.55
25-160	4	1.11	32	32	2900	1.5
25-160A	3.7	1.03	28	31	2900	1.1
32-100	4.5	12.5	12.5	44	2900	0.55
32-100(I)	6.3	1.75	12.5	54	2900	0.75
32-125	5	1.39	20	44	2900	0.75
32-125A	4.5	1.25	16	43	2900	0.55
32-160	6.5	5	32	44	2900	1.5
32-160A	4	1.1	25	34	2900	1.1
32-160(I)	6.3	1.75	32	40	2900	2.2
32-200	4.5	12.5	50	32	2900	3
