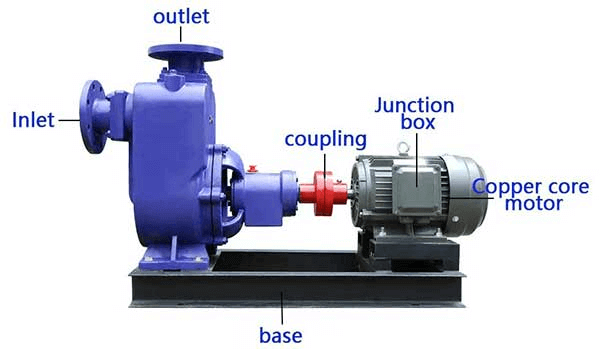

CYZ Series Horizontal Centrifugal Oil Pump
CYZ Series Horizontal Centrifugal Oil Pump
CYZ Series Horizontal Centrifugal Pump
CYZ series horizontal centrifugal pump is designed to be suitable for transferring petroleum products such as gasoline, kerosene, diesel oil, aviation kerosene, etc, and can also be used for transferring seawater and fresh water. The product has good self-priming ability, simple structure, smooth operation, convenient adjustment and other characteristics, so it is the first choice for petroleum industry, ships, land oil depots and tanker trucks.
Head: 12-80m
Suction lift: 5-6.5m
Flow Rate: 3.2-600m³/h
Product Description
Summarize:


CYZ series horizontal centrifugal oil pump belongs to a kind of self-priming centrifugal pump, which is often used to transport fuel oil, diesel oil, kerosene, gasoline and other oil liquids that do not contain solid particles and have a temperature of not more than 80℃. It is widely used in chemical, petroleum, electric power, food, metallurgy and other industries. The equipment is equipped with high-quality durable materials and hard alloy mechanical seals, so it can be widely used in chemical, petroleum, electric power, food, metallurgy and other industrial fields.

Product Details:

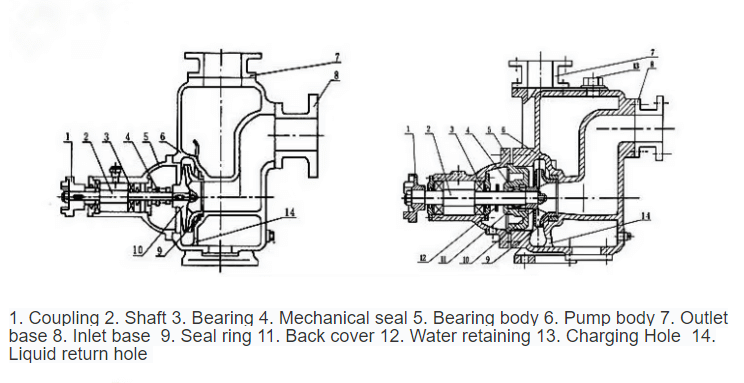

The pump body of the CYZ series horizontal centrifugal oil pump consists of components such as the suction chamber, liquid storage chamber, spiral chamber, liquid return hole, and gas-liquid separation chamber. After the pump is started normally, the liquid moves from the center of the impeller to the periphery under the action of centrifugal force, thereby sucking in the liquid. The gas-liquid mixture is separated inside the pump, the gas is discharged, and the liquid returns to the liquid storage chamber and re-enters the impeller, completing the self-priming process.


Application:

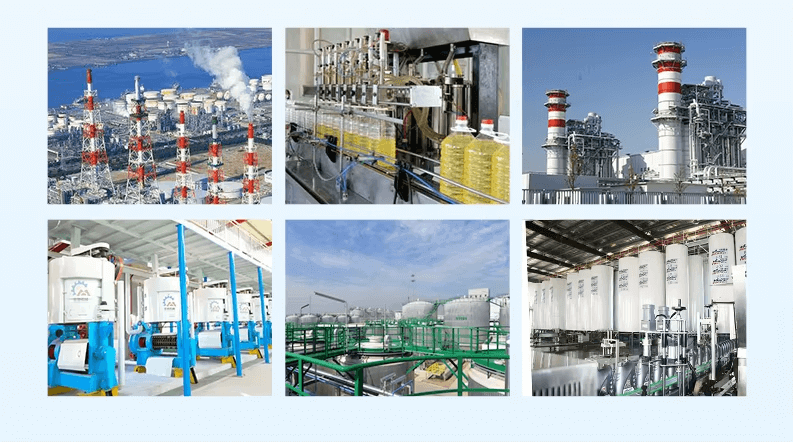

It is an ideal product for petroleum industry, land tankers and oil tankers. It is also suitable for cargo oil pumps, bilge pumps, fire pumps and ballast pumps of ships as well as cooling water circulation of machines, respectively, to transport oils such as gas, kerosene, diesel and mediums of -20℃~80℃.

Feature:
1. It can also be used as a cleaning pump for tanker compartments and an efficient water supply system for ships. The use of this pump can give full play to the advantages of its use, improve the efficiency and quality of work, and ensure the saving of time and material resources.
2. There is no safety valve is needed for the output line and no bottom valve is needed for the suction line, so the piping system is simple and the working conditions are improved.
4.

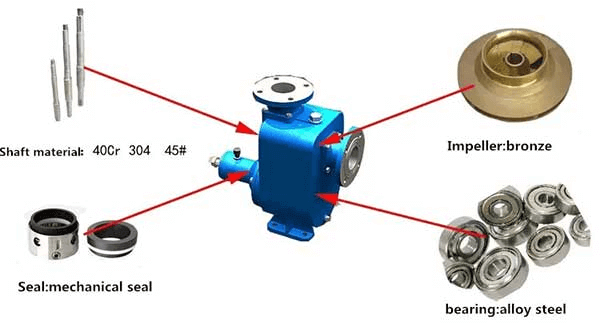

 The pump is made of high-quality materials and the seals are carbide mechanical seals, so it has a long service life.
Performance Data:
Model Flow m³/h Head m Self Priming m Revolution(r/min) Power(KW) Port(mm)
Inlet Outlet
25CYZ-20 3.2 20 6.5 2900 0.75 25 25
25CYZ-32 3.2 32 6.5 2900 1.1 25 25
40CYZ-20 6.3 20 6.5 2900 1.1 40 32
40CYZ-40 10 40 6.5 2900 4 50 40
50CYZ-12 15 12 6.5 2900 1.5 50 50
50CYZ-20 18 20 6.5 2900 2.2 50 50
50CYZ-35 14 35 6.5 2900 4 50 50
50CYZ-40 10 40 6.5 2900 4 50 50
50CYZ-50 12.5 50 6.5 2900 5.5 50 50
50CYZ-60 15 60 6.5 2900 7.5 50 50
50CYZ-75 20 75 6.5 2900 11 50 50
65CYZ-15 30 15 6.5 2900 3 65 50
65CYZ-32 25 32 6 2900 5.5 65 50
80CYZ-13 35 13 6 2900 3 80 65
80CYZ-17 43 17 6 2900 4 80 65
80CYZ-22 40 22 6 2900 5.5 80 65
80CYZ-25 50 25 6 2900 7.5 80 80
80CYZ-32 50 25 6 2900 7.5 80 80
80CYZ-55 60 25 6 2900 18.5 80 80
80CYZ-70 60 70 6 2900 22 80 80
100CYZ-20 100 20 6 2900 11 100 80
100CYZ-40 100 40 6 2900 22 100 100
100CYZ-40A 100 40 6 1470 22 100 80
100CYZ-65 100 65 6 2900 30 100 100
100CYZ-75 70 75 6 2900 30 100 100
150CYZ-45 170 45 5 2900 37 150 100
150CYZ-55 160 55 5 2900 45 150 100
150CYZ-65 170 65 5 2833 55 150 100
150CYZ-80 160 80 5 1450 55 150 100
200CYZ-63 280 63 5 1450 90 200 150
250CYZ-50 400 50 5 1480 90 250 200
300CYZ-50 500 50 5 1450 110 300 250
300CYZ-55 550 55 5 1450 132 300 250
