Product Description

Summarize:

CYZ fuel oil centrifugal pumps are commonly used to transport fuel oil, diesel oil, kerosene and gasoline and other oil liquids that do not solid particles and have a temperature not exceeding 80℃. It is widely used in chemical, petroleum, electric power, food, metallurgy and other industries. In order to prolong its long service life, this machine is equipped with high quality durable materials and hard alloy mechanical seals. What's more, this machine is characterized by compact structure, smooth operation, easy maintenance, high efficiency, strong self-priming capacity and long service life.

Product Details:

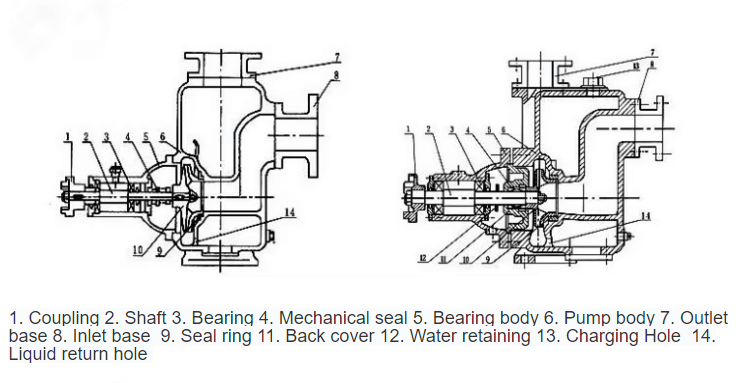

CYZ series self-priming oil pump consists of suction chamber, liquid storage chamber, vortex chamber, return liquid hole, gas-liquid distribution chamber and so on. Before the pump is started, a certain amount of liquid needs to be injected into the pump body as the initial working medium. After starting, the motor drives the impeller to rotate, and the impeller rotates at a high speed to generate centrifugal force, which throws the liquid out from the center of the impeller and into the scroll chamber of the pump body. In the scroll chamber, the speed of the liquid gradually decreases and the pressure gradually increases, and then it is discharged through the discharge pipe. At the same time, due to the rotation of the impeller, a certain vacuum is formed in the center of the impeller, so that the outside liquid is sucked into the pump body under the action of atmospheric pressure, thus realizing the continuous suction and discharge process.

Application:

This machine is suitable for conveying all kinds of oil and oil-like liquids which do not contain solid particles and the temperature does not exceed 80℃, and can be widely used in petroleum, chemical, electric power, metallurgy, food and other industries. It is an ideal product for petroleum industry, land tankers and oil tankers, and is also suitable for cargo oil pumps, bilge pumps, fire pumps and ballast pumps of ships as well as cooling water circulation of machines.

Feature:

1. It is characterized by simple structure, easy operation and maintenance, stable work, high efficiency, long service life and good self-priming performance.
2. Ehe use of the pump can give full play to its advantages of use, improve the efficiency and quality of work, to ensure the saving of time and material resources.
3. No safety valve is needed in the output pipeline, no bottom valve is needed in the suction pipeline, the pipeline system is simple and the working conditions are improved.

Performance Data:

Model	Flow m3/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Port(mm)
Model	Flow m3/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Inlet	Outlet
25CYZ-20	3.2	20	6.5	2900	0.75	25	25
25CYZ-32	3.2	32	6.5	2900	1.1	25	25
40CYZ-20	6.3	20	6.5	2900	1.1	40	32
40CYZ-40	10	40	6.5	2900	4	50	40
50CYZ-12	15	12	6.5	2900	1.5	50	50
50CYZ-20	18	20	6.5	2900	2.2	50	50
50CYZ-35	14	35	6.5	2900	4	50	50
50CYZ-40	10	40	6.5	2900	4	50	50
50CYZ-50	12.5	50	6.5	2900	5.5	50	50
50CYZ-60	15	60	6.5	2900	7.5	50	50
50CYZ-75	20	75	6.5	2900	11	50	50
65CYZ-15	30	15	6.5	2900	3	65	50
65CYZ-32	25	32	6	2900	5.5	65	50
80CYZ-13	35	13	6	2900	3	80	65
80CYZ-17	43	17	6	2900	4	80	65
80CYZ-22	40	22	6	2900	5.5	80	65
80CYZ-25	50	25	6	2900	7.5	80	80
80CYZ-32	50	25	6	2900	7.5	80	80
80CYZ-55	60	25	6	2900	18.5	80	80
80CYZ-70	60	70	6	2900	22	80	80
100CYZ-20	100	20	6	2900	11	100	80
100CYZ-40	100	40	6	2900	22	100	100
100CYZ-40A	100	40	6	1470	22	100	80
100CYZ-65	100	65	6	2900	30	100	100
100CYZ-75	70	75	6	2900	30	100	100
150CYZ-45	170	45	5	2900	37	150	100
150CYZ-55	160	55	5	2900	45	150	100
150CYZ-65	170	65	5	2833	55	150	100
150CYZ-80	160	80	5	1450	55	150	100
200CYZ-63	280	63	5	1450	90	200	150
250CYZ-50	400	50	5	1480	90	250	200
300CYZ-50	500	50	5	1450	110	300	250
300CYZ-55	550	55	5	1450	132	300	250
