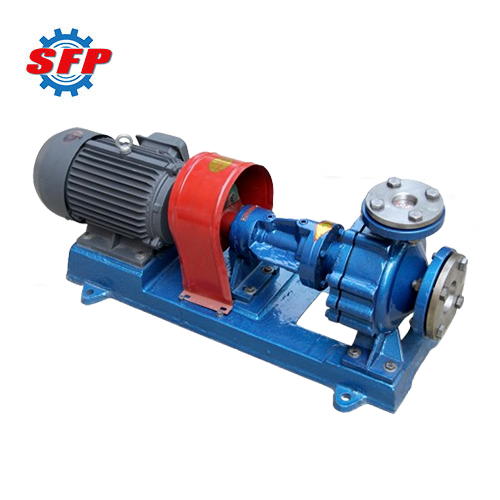

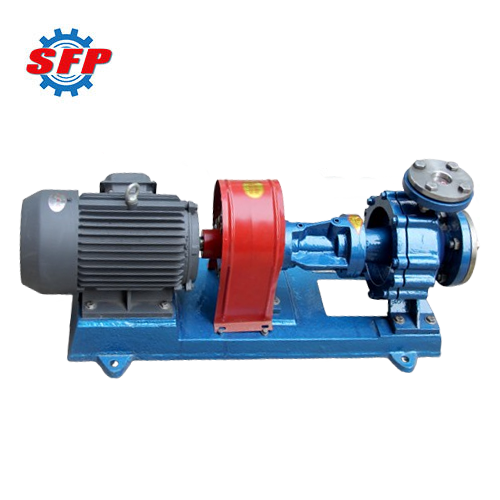

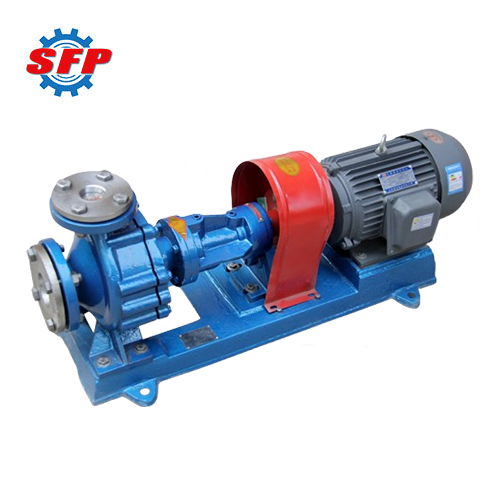

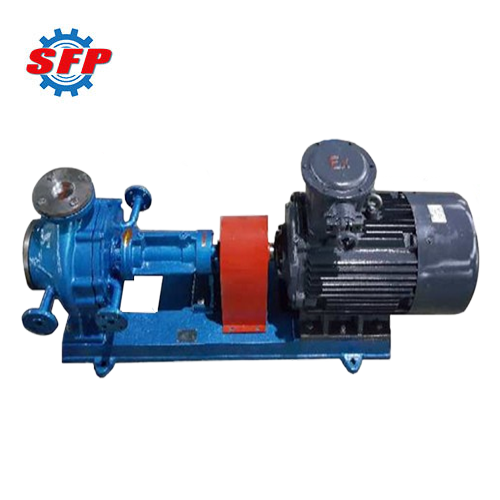

Product Description

Summarize:

RY series thermal oil centrifugal pump belongs to a kind of single-stage single-suction hot oil centrifugal pump, which is specially designed for conveying high temperature medium without solid particles and fibers such as thermal oil, heat transfer fluid and high temperature circulating oil. Therefore, the pump is usually used as an ideal circulating pump for heat-carrying media, and it can also be applied to the fields of chemical industry, petroleum, construction, printing, textile, pharmaceutical and food processing. In addition, the pump adopts the advanced hydraulic model, the efficiency is about 5% higher than the traditional hot oil pump, the same working condition motor power is reduced by one grade, so as to save the energy consumption and cost of operation.

Product Details:

When RY series centrifugal pump works, the motor will drive the impeller to rotate at high speed, and the hot oil will enter into the center of the impeller from the suction port. Under the action of centrifugal force, the impeller will throw the hot oil to the outer edge and pressurize, and then, the high pressure oil will be discharged from the outlet after being pressurized by the worm case, thus completing the high temperature closed cycle.

Application:

RY series hot oil centrifugal pumps are suitable for handling thermal oil or other high temperature medium with temperature not higher than 350℃ and viscosity 5-300cst. It can be widely used in industrial and urban flood control, drainage, rescue, heating, printing and dyeing, petroleum, chemical, pharmaceutical, food and other industries.

Feature:

1. It is supported by double ball bearings, the front end can be lubricated with lubricating oil, and the center is equipped with an oil conduit, so that the sealing condition and the recovery of heat transfer oil can be observed at any time.
2. the basic structure of the pump is single-stage single-suction cantilever type, the motor is mounted on the same base, which is more convenient for installation and maintenance.
3. The seal of the pump adopts the combination of packing seal and mechanical seal to avoid leakage during conveying.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev r/min		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev r/min		Power( kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
