3RP High Viscosity Lobe Pump
3RP series high viscosity lobe pump is a food grade pump that supports high viscosity transfer at infinite speeds and can also be used to transfer solid particles in suspension. The equipment features stable operation, high efficiency, energy saving, excellent self-priming capability and low noise. Therefore, this machine can be widely used in food, beverage, cosmetic, chemical, petroleum, biopharmaceutical and other processing industries with strict sanitary requirements.
Power: 0.75-22KW
Flow Rate: 6-250m3/h
Temperature Range: -50 °C~250 °C
Product Description
Summarize:

3RP series food grade pump belongs to one kind of volumetric pump, designed for conveying sanitary fluid and corrosive high viscosity medium, the temperature range of the conveyed medium is -30~180 ℃, the viscosity range is 30 cst~100000 cst. The internal parts of the pump in contact with the medium are made of corrosion-resistant stainless steel, which not only meets the sanitary standard of the industries of food, beverage, pharmacy, daily-use chemical industry, petroleum and paper making, but also effectively prevents the contamination of the material. It meets the hygienic standard of food, beverage, pharmaceutical, daily chemical, petroleum and paper industries, and can effectively prevent the material from being contaminated.

Product Details:
3RP series sanitary lobe pump consists mainly of rotor, shaft seal, gear box and a pair of synchronized meshing active gears to drive the rotor to convey the medium. It consists of two synchronized rotors and cams driven by a pair of synchronized gears in the gearbox. The two rotors rotate in the reverse direction driven by the main shaft and the secondary shaft, which can change the volume of the pump and enhance the vacuum and discharge pressure.


Application:
1. Food Industry: Milk, yoghourt, butter, ice-cream, chocolate, jelly, jam, syrup, beer, soft drinks, fruit juice, pudding, tomato sauce, sesame, peanut butter, condiment, edible oil, cheese blocks, whey, yeast, etc.
2. Daily Chemicals: Face cream, shampoo, detergent, hand sanitizer, skin gel, detergent, cosmetics, skin cream, toothpaste, hair dye, soap, shoe polish, glycerol, fatty alcohol, hair gel, etc.
3. Chemical Industry: Gasoline, diesel, kerosene, crude oil, sludge, asphalt, paint, pigment, dyes, coating material, leather, fat, solvents, resins, silicone oil, adhesives, latex, colloidal material, and etc.
4. Pharmacy Industry: Health care products, pharmaceutical, vaccine, biological products, syrup, slurry, protein, royal jelly, extracts, emulsions, pills slurry, fish meal, pollen, etc.
Advantage:
1. There is a certain clearance between rotor and rotor, no friction coefficient, long service life.
2. Easy to install and dismantle, easy to maintain and clean, few wearing parts.
3. High efficiency and energy saving, smooth conveying, low failure rate, sealing without leakage, low noise.
4. The viscosity of conveying medium is ≤2,000,000cp, and the slurry containing 70% solids can be conveyed.
5. It can convey gas, liquid and solid three-phase mixture materials.
6. With frequency converter, the flow rate can be adjusted at will, and it can be used as a general-purpose metering pump.

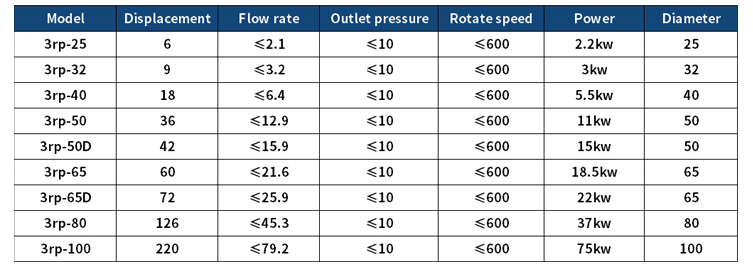

Performance Data:
Model Flow Discharge Pressure
(Mpa)
Rev
(rpm)
Motor Power
(kw)
Inlet/outlet
(mm)
L/100r m3/h
3RP-25 6 ≤1.8 0-1.0 10-400 0.75 25
3RP-32 9 ≤2.7 1.1 32
3RP-40 18 ≤4.3 1.5 40
3RP-50 36 ≤8.6 2.2 50
3RP-65 60 ≤14.4 4 65
3RP-80 105 ≤25.2 11 80
3RP-100A 125 ≤30 15 100
3RP-100 150 ≤36 18.5 100
3RP-125 250 ≤60 22 125
