3RP Series High Viscosity Lobe Pump
3RP Series High Viscosity Lobe Pump
Toothpaste Lobe Transfer Pump
3RP series toothpaste lobe pump is usually used for conveying and filling high viscosity liquids with corrosiveness and suspension, such as honey, flavour, skin cream, toothpaste and other j media. Therefore, it is widely used in foodstuffs, foodstuffs and foodstuffs. Therefore, it is widely used in food, beverage, biopharmaceutical manufacturing and other fields. It has the advantages of strong self-priming ability, high efficiency, long service life, high precision and so on
Power: 0.75-22kW
Pressure: 0.6-1.2 Mpa
Medium Viscosity: 1-2000000cp
Product Description
Summarize:

3RP series toothpaste lobe pump is a multi-purpose two-way displacement pump with the advantages of self-priming capability, high efficiency, long service life and high accuracy. It is usually suitable for conveying and filling high viscosity liquids with corrosive and suspending properties, such as honey, sauces, skin creams, toothpastes, etc.. Therefore, it is widely used in food, beverage, biopharmaceutical manufacturing and other fields. The pump consists of two synchronised rotors driven by a pair of synchronised gears in a gearbox. The two rotors rotate in opposite directions driven by the main shaft and the secondary shaft, which changes the volume of the pump, thus creating a high vacuum and discharge pressure. This pump is particularly suitable for conveying sanitary fluids and corrosive high viscosity fluids.
Product Details:




Application:
1. Dairy Products: Yoghurt, cream, ice cream, cheese and whey.
2. Beverages: Beer, wort, yeast, soft drinks, fruit juice concentrates, fruit drinks.
3. Foodstuffs: ketchup, vegetable pastes, sauces, sweeteners, yeast pastes, salads, meat emulsions, cooking oils.
4. Confectionery: Syrups, cream fillings, purees, fruit fillings, puddings, jams, jellies, chocolates.
5. Cosmetics: Creams and lotions, hairsprays, hair dyes, essential oils.
6. Pharmaceuticals: Pills, extracts, emulsions, creams.
7. Chemicals: Fats, solvents, resins and polymers, dyes.
Advantage:
1. With no contact between the pump vanes, vane pumps can move solids suspended in the slurry (such as cherries or olives in food processing applications) without damaging the product.
2. Gentle pumping action further minimises product degradation.
3. can handle larger particles than those pumped by other types of positive displacement pumps.
4. can be easily cleaned using either clean-in-place (CIP) or steam-in-place (SIP) methods, making it ideal for sanitary processing applications.
5. pumps viscous liquids efficiently.
6. Provides accurate, consistent fluid output that is unaffected by pressure changes (assuming adequate fluid viscosity).
7. Fluid flow can be increased or decreased by controlling drive speed.
8. if wetted, rotary vane pumps are also self-priming and can run dry for extended periods of time (assuming pump seals are lubricated).

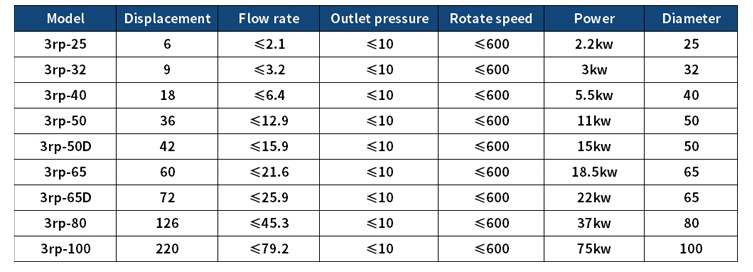

Performance Data:

Model

Flow

Pressure

Rev

Power

Inlet/Outlet Size

(L/100r)

(m3/h)

(Mpa)

(rpm)

(kW)

(mm)

3RP-25

6

≤1.8

0-1.0

≤600

0.75

25

3RP-32

9

≤2.7

0-1.0

1.1

32

3RP-40

18

≤4.3

0.-1.0

1.5

40

3RP-50

36

≤8.6

0-1.0

2.2

50

3RP-65

60

≤14.4

0-1.0

4

65

3RP-80

105

≤25.2

0-1.0

11

80

3RP-100A

125

≤30

0-1.0

15

100

3RP-100

150

≤36

0-1.0

18.5

100

3RP-125

250

≤60

0-1.0

22

125
